See also
– Supervision Dialog, page 727

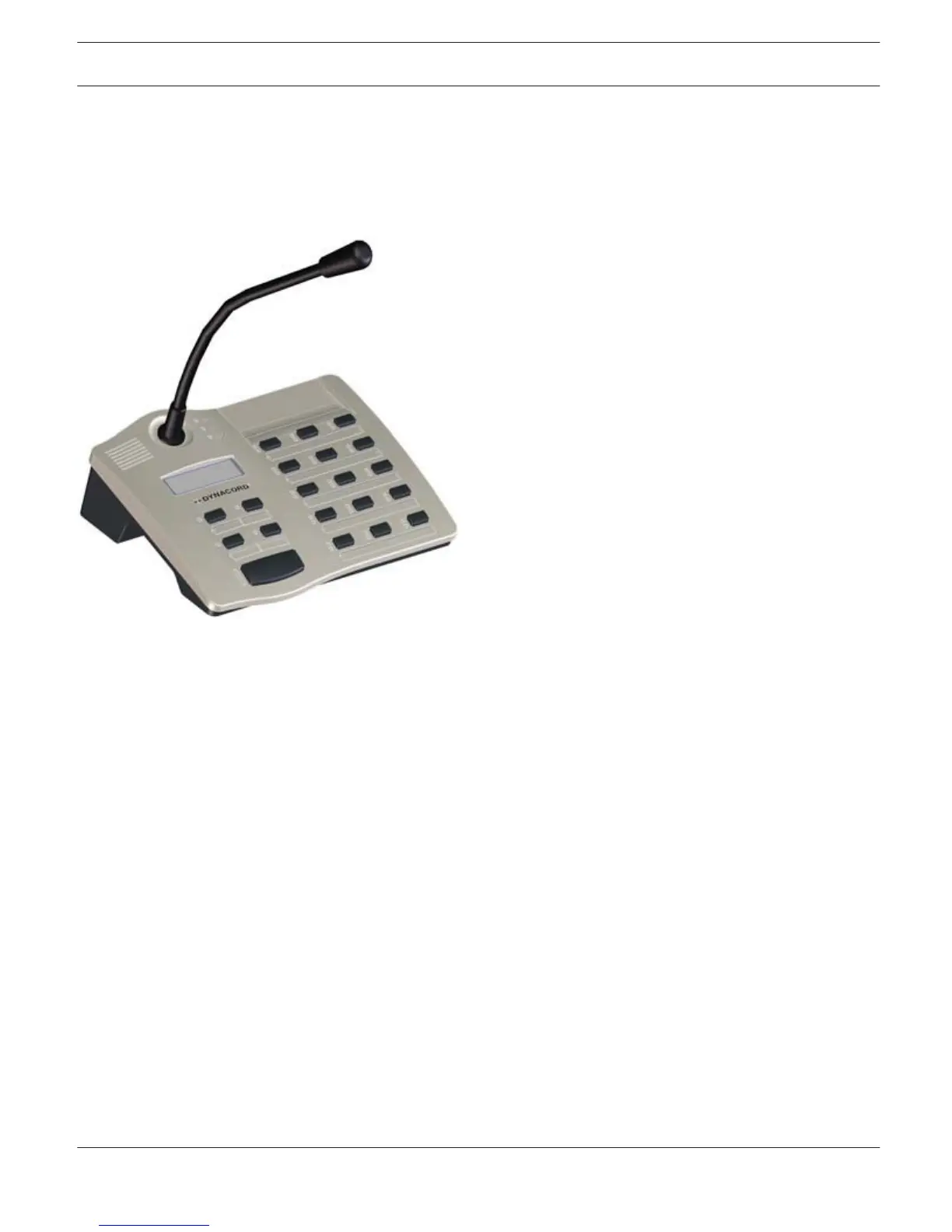

DPC 8000 Call Station
The DPC 8015 is a call station for the PROMATRIX 8000 system. The call station employs a permanently supervised
gooseneck microphone with windscreen, a total of 20 buttons, a lighted LC-display and an integrated loudspeaker. The
15 function keys can be permanently assigned for discrete zone addressing. The call station can be expanded to
specific requirements with up to five DPC 8120 call station extensions with 20 freely programmable function or zone
keys per DPC 8120.
Additional DPC 8015 Features:
– Five pre-programmed function keys - Green LED for each button
– 15 freely programmable function/zone keys - Two LEDs (green/yellow) for each button
– Labeling with transparent cover - Easy editing of key labeling with template file
– Usable as desktop version as well as mounted in consoles/racks
– Internal supervision with event log - fulfills all requirements of relevant national and international standards
DPC 8015 Device
DPC 8015 Device
Start by creating an DPC 8016 Device in your IRIS-Net project. Drag a DPC 8015 from the Object Bar’s Devices
category or from the Devices window into the worksheet (see also chapters: Devices and Configurations menu). The
following dialog box appears:
IRIS-Net PROMATRIX 8000 | en 795
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
