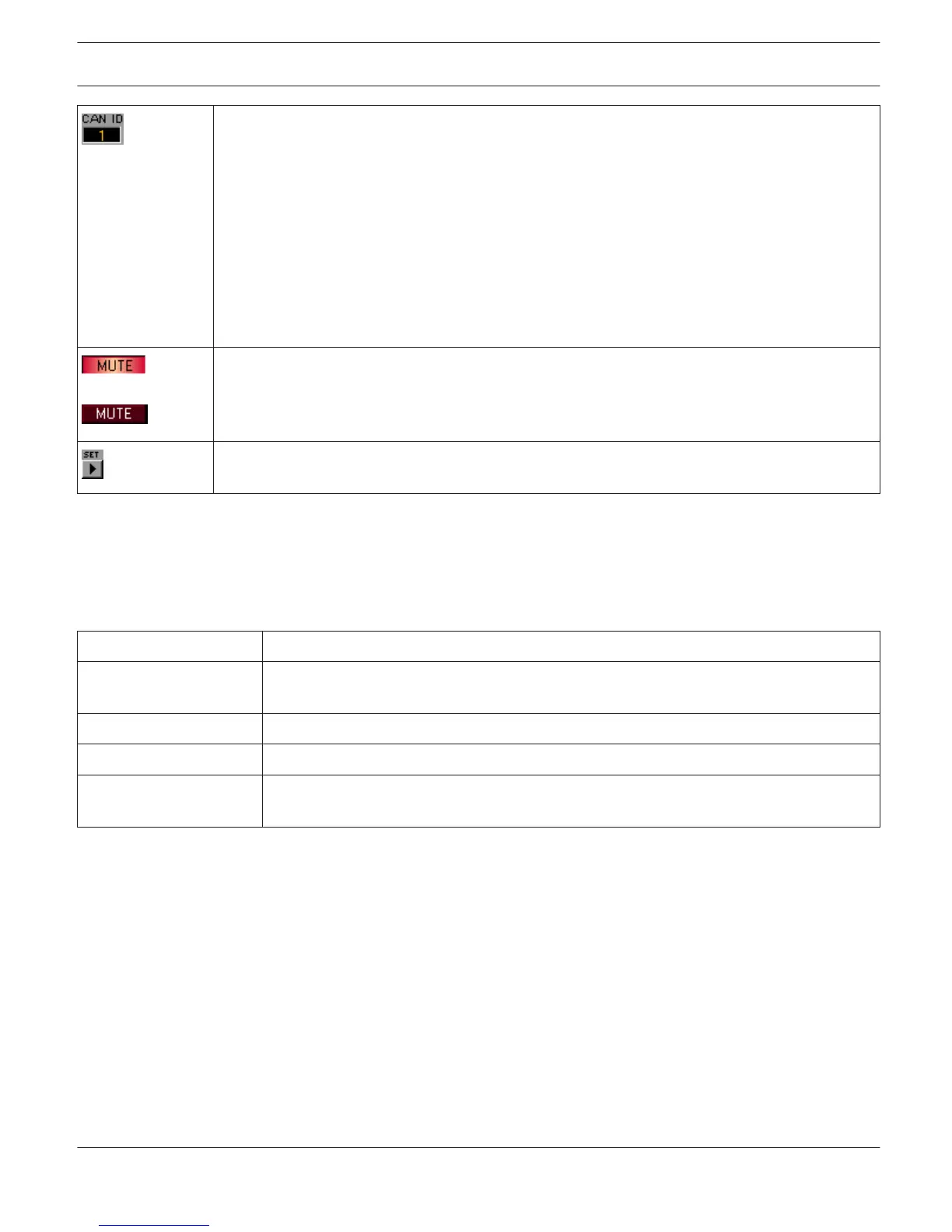

CAN ID allows you to modify the address of the receiver on the worksheet. Click on the gray-
shaded entry field below the CAN ID label and enter the desired CAN address. Press Return on
the keyboard to confirm the CAN address entered. This address must be the same as the CAN
address specified in the REV menu. Each address can only be used once within a system.
Both the REV-S (single receiver) and the REV-D (dual receivers) use two consecutive CAN
addresses. The CAN address of the left receiver (REV-D only) is always odd, the CAN address of
the right receiver (both REV-S and REV-D) is always one higher than the left address and hence it
is always even. In the IRIS-Net worksheet only the even CAN address is displayed on the receiver
icon.
HINT: Changing the address of the left receiver will automatically change the address of the
right receiver and vice-versa.
The MUTE button is for attenuating the microphone level to –∞. Clicking the MUTE button with
the left mouse button mutes the micro- phone. The MUTE button is virtually pressed and lights
red. Clicking the MUTE button once again with the left mouse button disables the mute-function
and the microphone is again active. The MUTE button is virtually disengaged and not lit.
Clicking on the SET button opens the Setup & Control Window, which provides access to all
microphone-, control and monitoring functions.
Setup & Control
The Setup & Control window allows configuring all microphone parameters. It also provides access to different test
functions. Clicking on the soft key SET in the REV Control Panel opens the Setup & Control window. The Setup &
Control window allows performing more advanced operations on the receiver like Clear-Scan, Analyze and Sound
Check operations.
Element Description
Clear Scan This tab provides option for performing Clear Scan All and Clear Scan group operations on
the receiver
Clear Scan Band This tab provides option for performing Clear Scan Band operations on the receiver T
Analyze This tab provides option for performing Analyze operations on the receiver
Misc This tab provides option for performing Sound check and other miscellaneous operations
on the receiver
IRIS-Net REV WIRELESS MICROPHONE SYSTEM | en 310
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
