Bosch IRIS-Net User Manual

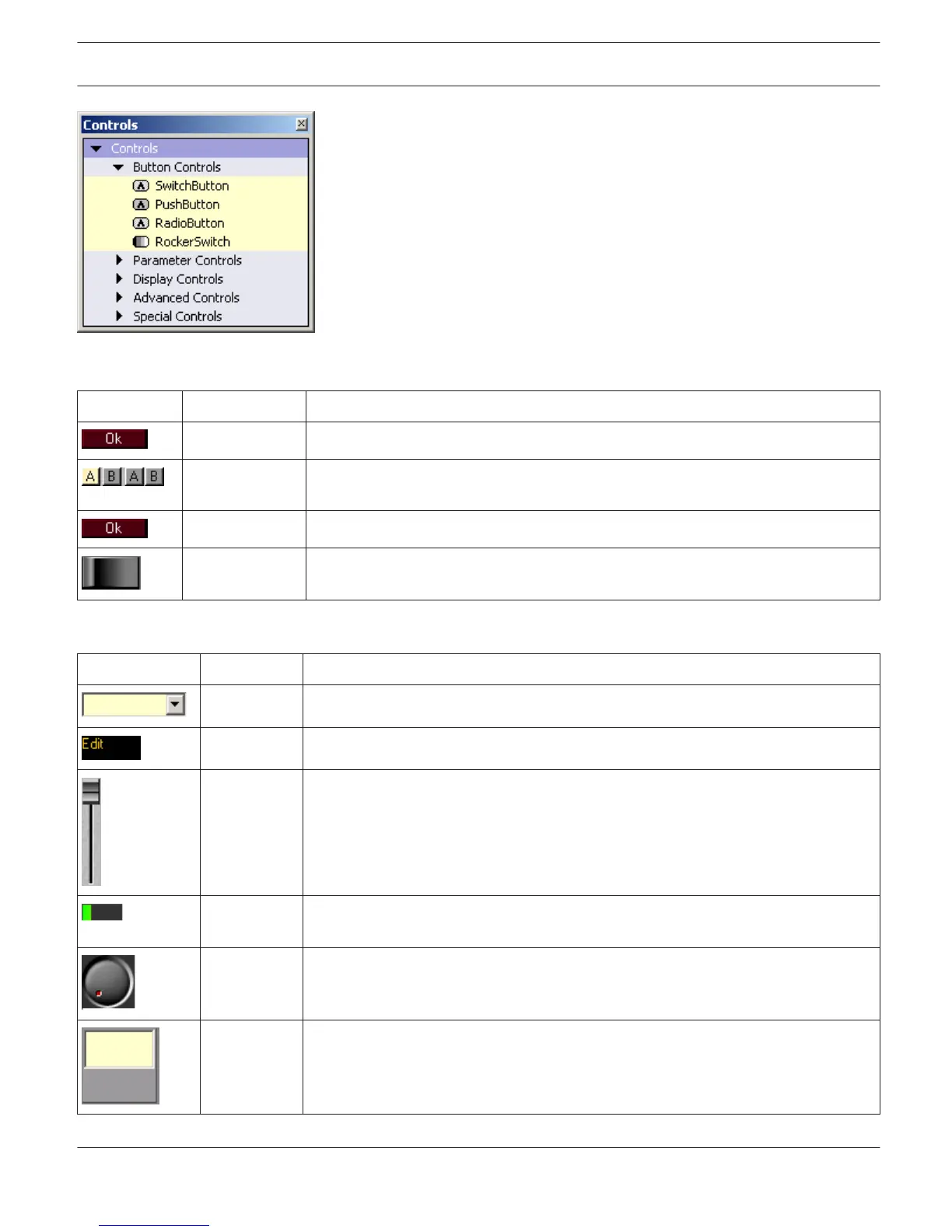

Button Controls
Element
Name Description
Push Button Pushbutton for executing a function or for opening an IRIS-Net dialog box
Radio Button Several pushbuttons that trigger each other, e.g. for switching or changing
functions or parameters
Switch Button Switch button for switching between two states, e.g. On/Off
Rocker Switch Rocker switch for switching between two states, e.g. On/Off
Parameter Controls
Element
Name Description
Combo Box Windows Combo Box for selecting parameters or functions from a list
Edit Edit field for entering and displaying values or text, e.g. names
Fader Fader for setting parameter values
Bar Graph Bar graph display horizontal for graphical indication of parameter values, e.g.
operational states
Knob Knob for setting parameter values
Mini Edit Label block for displaying names in signal flow diagrams
