Bosch IRIS-Net User Manual

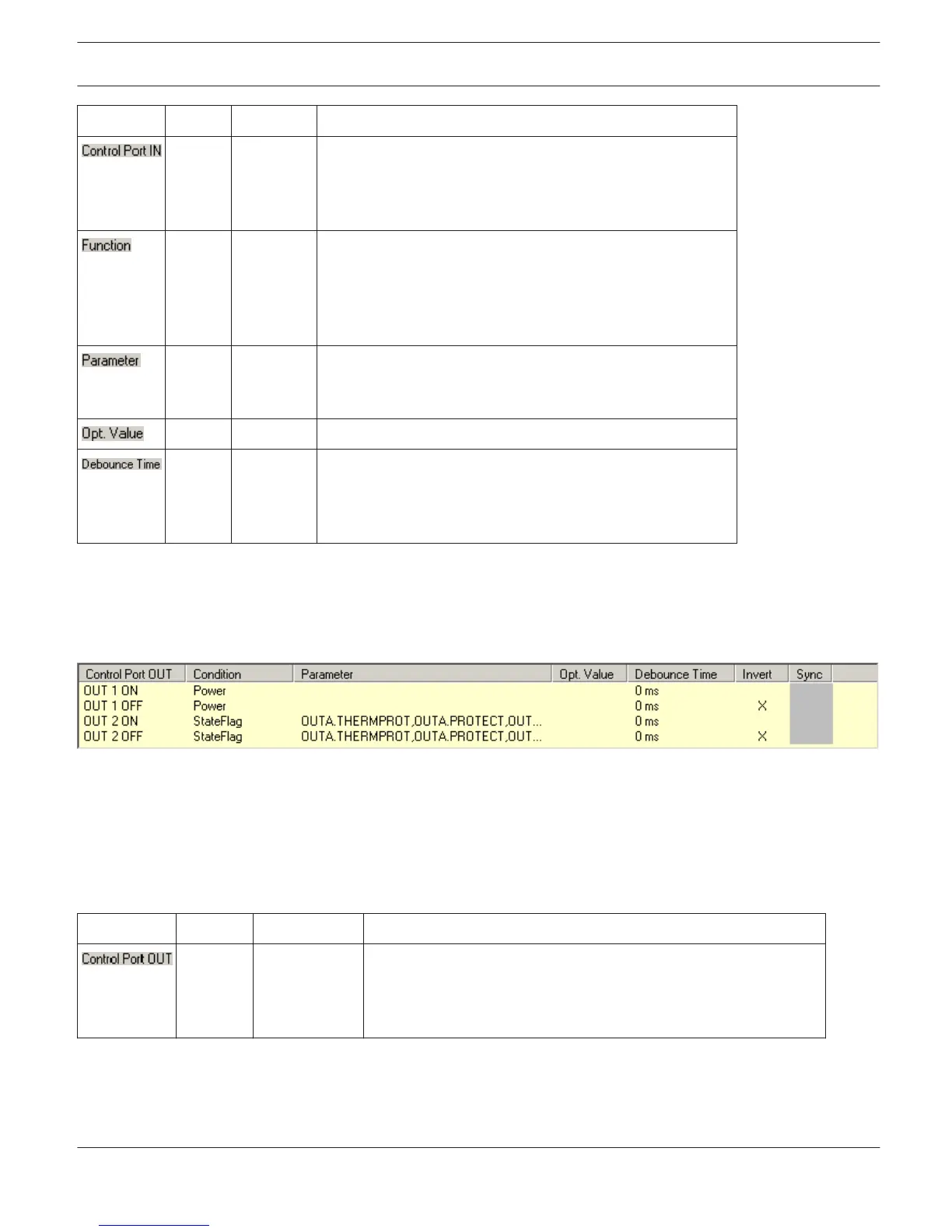

Element Default Range Description
IN 1 ON
IN 1 OFF
IN 2 ON
IN 2 OFF
This provides a listing of the two control inputs and their
statuses ON and OFF. The entries in the corresponding lines
specify the action when closing (ON) or opening (OFF) a
contact.
(empty) This column allows assigning functions to a control input’s
statuses. Clicking the desired line in the Function menu
opens a dialog field that shows all accessible functions. The
table "Input and Receive Job Functions" lists all functions
together with their individual settings.
(empty) Here you can set the different function parameters. For more
information, please refer to the table "Input and Receive Job
Functions".
(empty) Certain functions allow specifying optional parameter values.
0 ms 0...10027
ms
16.33 ms
Steps
Here you can program delay or debouncing times. Following
a status change the assigned function is initiated after the
set time interval has past.
Control Outputs: Internal status changes inside of the amplifier, like for example operational faults, alerts when
exceeding parameter limits, and internal operational statuses can be signaled to external systems or central control
units.
Example:
This example shows the programming of two control outputs where OUT1 signals whether the amplifier’s power is
switched ON or OFF while OUT2 signals faulty operation.
– OUT1 ON: Power (control output 1 is closed when the amplifier’s power is switched on)
– OUT1 OFF: Invert Power (control output 1 is open when the amplifier’s power is switched off / stand-by mode)
– OUT2 ON: Errorflag (control output 2 is closed when operational faults according to the parameter list have
occurred)
– OUT2 OFF: Invert Errorflag (control output 2 is open when no faults have occurred)
Element Default Range Description
0 OUT 1 ON
OUT 1 OFF
OUT 2 ON
OUT 2 OFF
This provides a listing of the two control outputs and their statuses
ON and OFF. The entries in the corresponding lines specify which
status results in the closing (ON) or opening (OFF) of a contact.
IRIS-Net REMOTE AMPLIFIER | en 114
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
