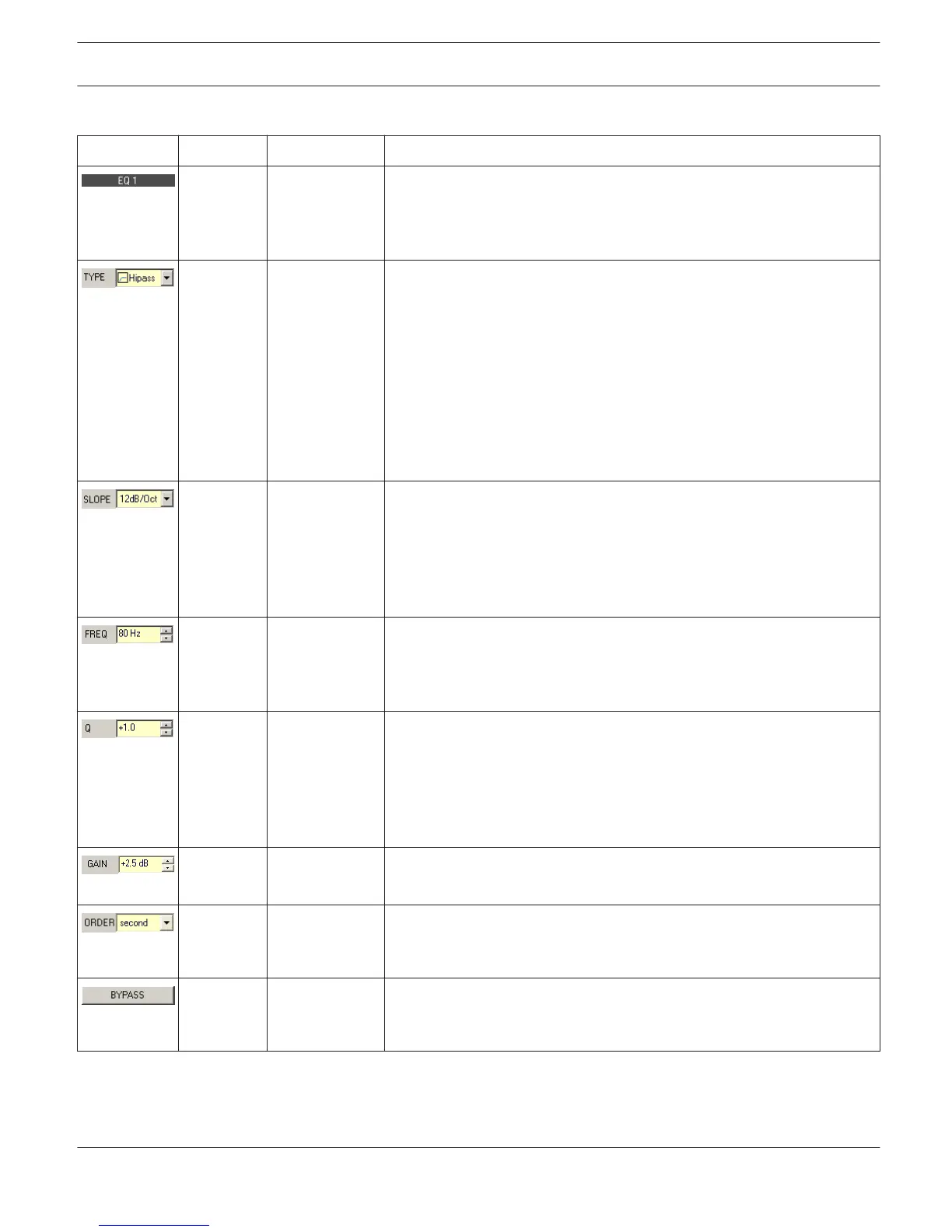

Filter Parameters
Element Default Range Description
Name of the corresponding filter band.
A click with the right mouse button on this field opens the „Copy &
Paste“ menu, which allows convenient copying all EQ-parameters of the
according filter to any other EQ within the same project.
PEQ PEQ. Loshelv.
Hishelv, Hipass,
Lopass,
Allpass
TYPE defines the filter type.
PEQ is a parametric Peak-Dip-Filter with programmable frequency, Q
and gain.
Loshelv / Hishelv creates a low shelving respectively high shelving
equalizer with the following editable parameters: frequency, slope and
gain.
Lopass / Hipass creates low pass respectively high pass filters with
adjustable frequency and slope.
Allpass is a filter which only affects the phase but not the frequency
response of the transmission function.
6dB/Oct 6dB/Oct,
12dB/Oct
SLOPE sets the steepness or filter-order of low or high shelving
equalizers and low or high pass filters. Setting different slopes within
the transmission range is possible. That, in conjunction with the Q-
parameter, offers the possibility for a hi-pass filter to be programmed
for B6-alignment, which describes a drastic rise in the cut-off frequency
range.
63 / 250 /
1000 /
4000 /
16000 Hz
20 Hz...20 kHz FREQ (frequency) sets the center frequency of a parametric EQ or the
cut-off frequency of shelving and Hi / Lo pass filters.
0.7 0.4...40.0
(PEQ),
0.4...2.0 (Hi-/
Lopass),
0.4...2.0
(Allpass)
Q defines the quality or bandwidth of a parametric EQ. A high Q-value
results in a narrowband filter, while a small Q-value results in a
broadband filter. The Q-value also sets the quality and thus the
response of Hi, Lo and All pass filters with slopes of 12dB/oct.
GAIN defines the amplification (increase) or attenuation (reduction) of
parametric EQs or low shelving and high shelving equalizers.
first first, second ORDER (only available with All pass filters) sets the desired filter order
of an All pass filter. A 1st order All pass filter rotates the phase by 180°,
a 2nd order All pass filter rotates the phase by 360°.
BYPASS switches the corresponding filter ON (not engaged) or OFF
(engaged), which allows for quick A / B-evaluation of the actual effect
that a filter has on the sound.
IRIS-Net
REMOTE AMPLIFIER | en 130
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
