4. Make sure to check the following parameters before upgrading:
Element
Description

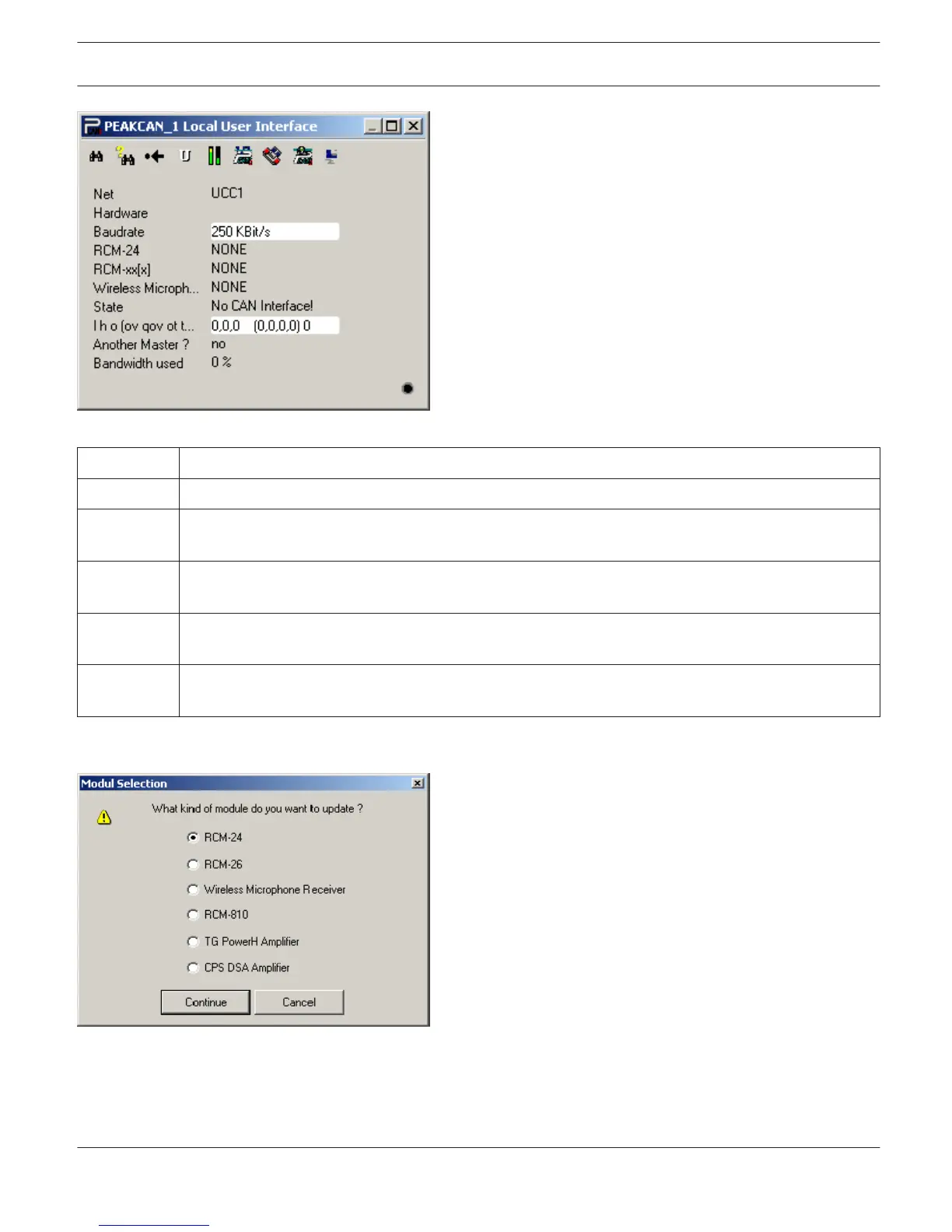

Baud rate Indicates the set baud rate. Normally you don’t have to change the system’s baud rate for upgrading.
RCM-24 Indicates the addresses of the remote amps connected. Make sure that the addresses shown are only
the ones of remote amps that you want to upgrade.
State Indicates the CAN-interface status. This has to read “OK”. Otherwise, starting the firmware upgrade is
not permissible.
l h o (... Indicates different error flags. Under no circumstance the first 3 digits may rise. Clicking into the white
field and entering “0” resets the error flags.
Band width
used
Indicates the used bandwidth of the CAN-bus in percent. Make sure to check that the CAN-bus is not
too busy, i.e. high data traffic.
5. The CAN-interface window provides a toolbar (top line). Clicking onto the U-icon (Update) opens the Module
Selection dialog. Select RCM-24 and click the Continue button.
6. The actual firmware file including version number and date is indicated and can be selected in the line “Firmware”.
The IRIS-Net software package always includes the most up-to-date remote amplifier firmware version. The
corresponding file is located in the directory: \IRIS-Net\Firmware\RCM-24. This path also appears in the line
“Location”. If you want to install a different (preferably newer) firmware version, you have to copy the
corresponding file into this directory first.
IRIS-Net
REMOTE AMPLIFIER | en 172
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
