Function blocks

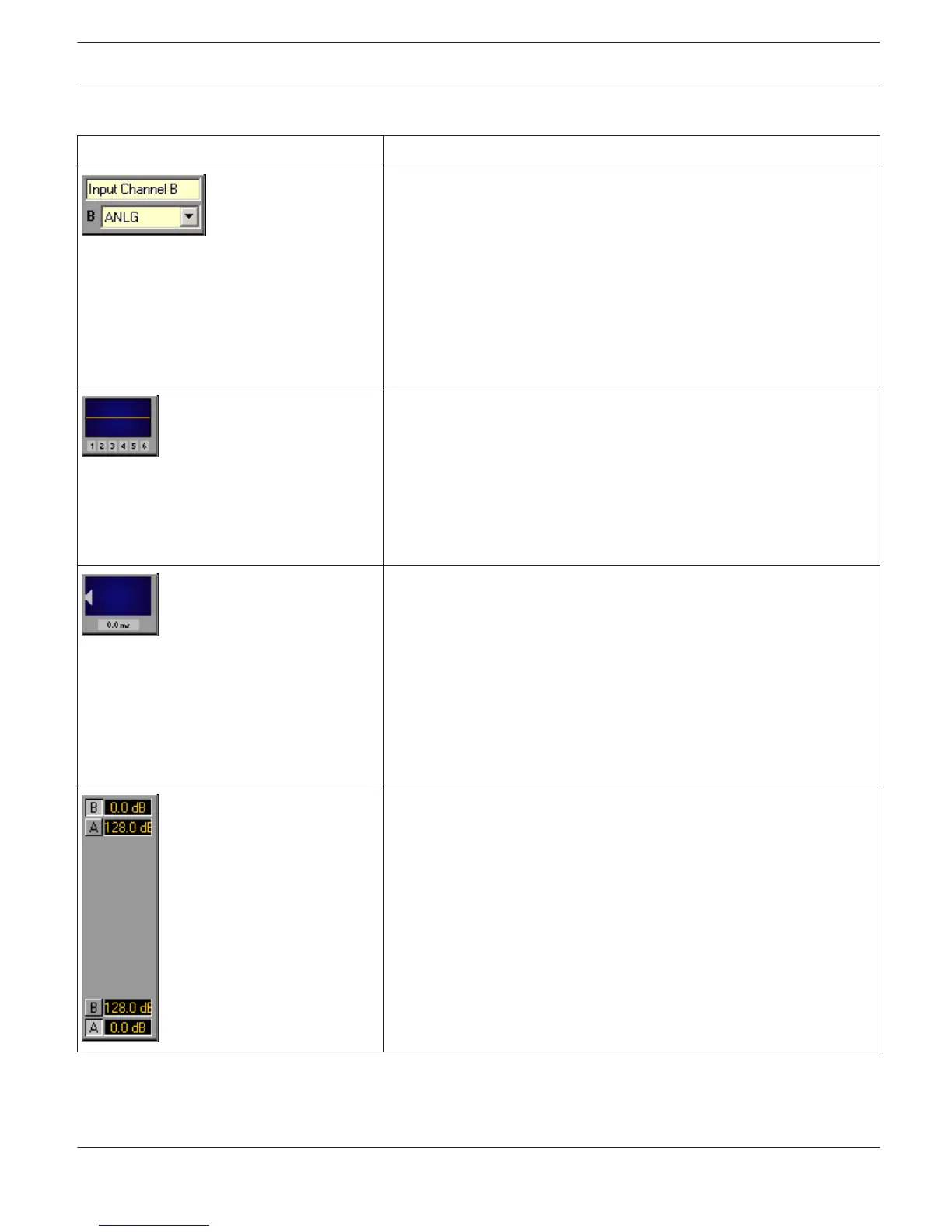

Element Description
Input Block:
The text field allows specifying a name for the corresponding input
channel. The drop down allows selecting the audio input type of the
corresponding input channel.
HINT: Selecting different audio input types for the amplifier's input
channels is not possible.
A click with the right mouse button opens the Copy & Paste menu,
which allows copying all parameters of the corresponding input channel
(Master EQ, Master Delay) to any other input channel within the same
project.
Master EQ Block:
The Master EQ block displays the 6 Master EQs of the corresponding
input channel. The 6 LEDs indicate which EQ-bands are being used
while the graph shows the frequency response of the Master EQ block.
A single click with the left mouse button onto this block opens the
MASTER EQ page. Clicking with the right mouse button opens the Copy
& Paste menu, which allows copying all parameters of the
corresponding EQ block to any other EQ block within the same project.
Master Delay Block:
This displays the Master Delay of the input channels. The corresponding
LED signals whether a delay has been programmed or not. The delay-
value is displayed together with the measurement unit next to the LED.
The graph shows the approximate usage of delay memory capacity. A
single click with the left mouse button onto this block opens the
MASTER DELAY page.
Clicking with the right mouse button opens the Copy & Paste menu,
which allows copying all parameters of the corresponding Master Delay
block to any other Master Delay block within the same project.
Routing Block:
Here you can assign the output channel routing. The A and B buttons
allow selecting the input signal for the corresponding output channel.
Clicking with the right mouse button onto the dB display opens a fader.
A click with the right mouse button onto routing block opens the Copy
& Paste menu of all DSP set- tings, which allows copying all DSP
parameters of an amplifier to any other amplifier within the same
project.
