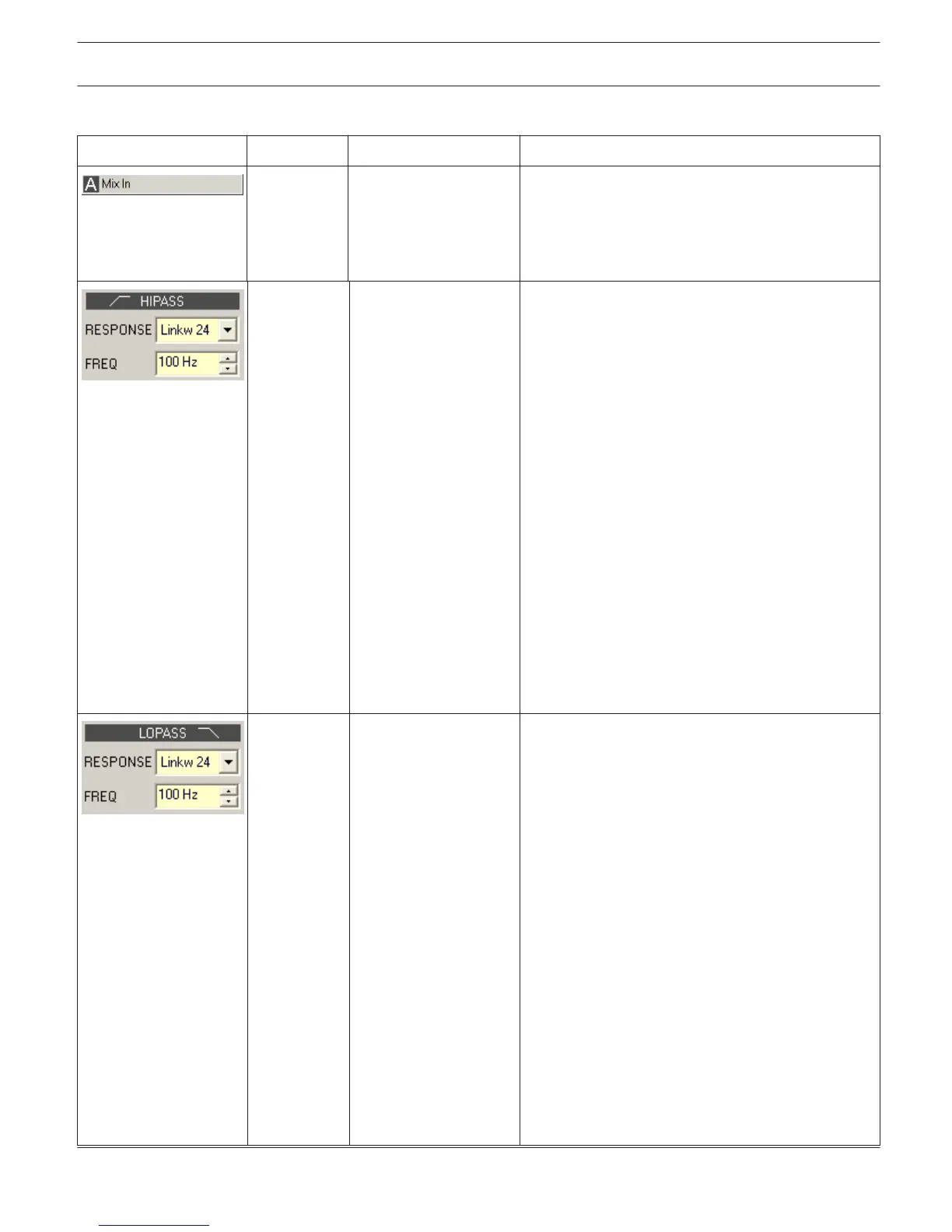

Channel Parameters
Element Default Range Description
Channel name
A click with the right mouse button on this field
opens the Copy & Paste menu, which allows
copying all X-Over parameters of the corresponding
output to any other X-Over within the same project.
thru, 20 Hz RESPONSE:
thru, 6dB,
12dB/Q=0.5, 12dB/
Q=0.6,
12dB/Q=0.7, 12dB/
Q=0.8,
12dB/Q=1.0, 12dB/
Q=1.2,
12dB/Q=1.5, 12dB/
Q=2.0,
Bessel 12dB,
Butterworth 12dB,
Linkwitz/Riley 12dB,
Bes- sel 18dB,
Butterworth 18dB,
Bessel 24dB,
Butterworth 24dB,
Linkwitz/Riley 24dB
FREQ:
20 Hz...20 kHz
This parameter block represents the HI-PASS filter.
Different types of filters (Bessel, Butterworth,
Linkwitz/Riley) with slopes between 6 dB/Oct. and
24 dB/Oct. can be set as filter response. Selecting
filter frequencies between 20 Hz and 20 kHz is
possible as well.
A click with the right mouse button onto the
HIPASS field opens the Copy
& Paste menu, which allows copying all parameters
of the corresponding HI-PASS filter to any HI-PASS
filters within the same project.
thru, 20000
Hz
RESPONSE:
thru, 6dB,
12dB/Q=0.5, 12dB/
Q=0.6,
12dB/Q=0.7, 12dB/
Q=0.8,
12dB/Q=1.0, 12dB/
Q=1.2,
12dB/Q=1.5, 12dB/
Q=2.0,
Bessel 12dB,
Butterworth 12dB,
Linkwitz/Riley 12dB,
Bes- sel 18dB,
Butterworth 18dB,
Bessel 24dB,
Butterworth 24dB,
Linkwitz/Riley 24dB
FREQ:
20 Hz...20 kHz
This parameter block represents the LO-PASS filter.
Different types of filters (Bessel, Butterworth,
Linkwitz/Riley) with slopes between 6 dB/Oct. and
24 dB/Oct. can be set as filter response. Selecting
filter frequencies between 20 Hz and 20 kHz is
possible as well.
A click with the right mouse button onto the
LOPASS field opens the Copy
& Paste menu, which allows copying all parameters
of the corresponding LO-PASS filter to any LO-PASS
filters within the same project.
