6. The message “Finishing .. ok” indicates that upgrading has been successful. The remote amp(s) are reset. After-
wards they are again ready for operation. The upgrade procedure is finished and you can close the dialog window
or proceed with upgrading other remote amps.
Firmware update of the amplifier

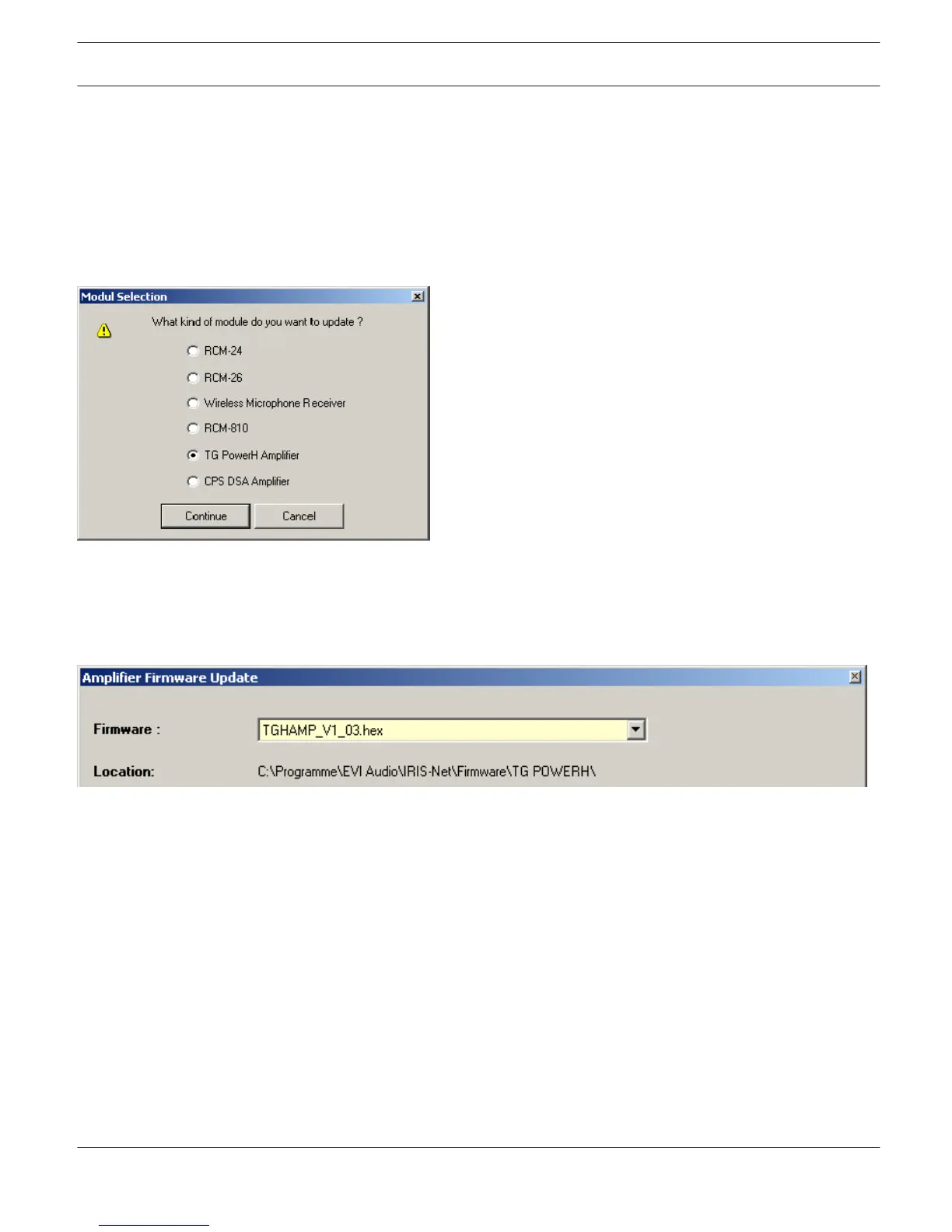

1. The CAN-interface window provides a toolbar (top line). Clicking onto the U-icon (Update) opens a Module
Selection dialog.
2. Select TG PowerH Amplifier and click onto Continue
3. The actual firmware file including version number and date is indicated and can be selected in the line “Firmware”.
The IRIS-Net software package always includes the most up-to-date remote amplifier firmware version. The
corresponding file is located in the directory: \IRIS\Firmware\TG POWERH. This path also appears in the line
“Location”. If you want to install a different (preferably newer) firmware version, you have to copy the
corresponding file into this directory first.
4.
Select the amplifier that you want to update and click the “OK” button. The list should only show amps that you
want to update. No other amplifier should be connected to the CAN-bus.
5. Clicking onto “Start Update” starts the upgrade procedure. The single steps of the update are shown in the
“Messages” window. The progress of some parts of the upgrade which take a little longer is indicated through
dots behind the corresponding name. The message “ok” has to appear at the end of each line. The following
example shows how to upgrade the firmware of the remote amp with the address 2 to firmware version V 1.03.
IRIS-Net REMOTE AMPLIFIER | en 240
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
