Parameter (empty) Here you can set the different function parameters. For more information,
please refer to the table "Input and Receive Job Functions".
Opt. Value (empty) Certain functions allow specifying optional parameter values.
Debounce
Time
0 ms 0...10027 ms
16.33 ms
Steps
Here you can program delay or debouncing times. Following a status change
the assigned function is initiated after the set time interval has passed.
Control Outputs: Internal status changes inside of the amplifier, such as operational faults, alerts when exceeding
parameter limits, and internal operational statuses can be signaled to external systems or central control units.

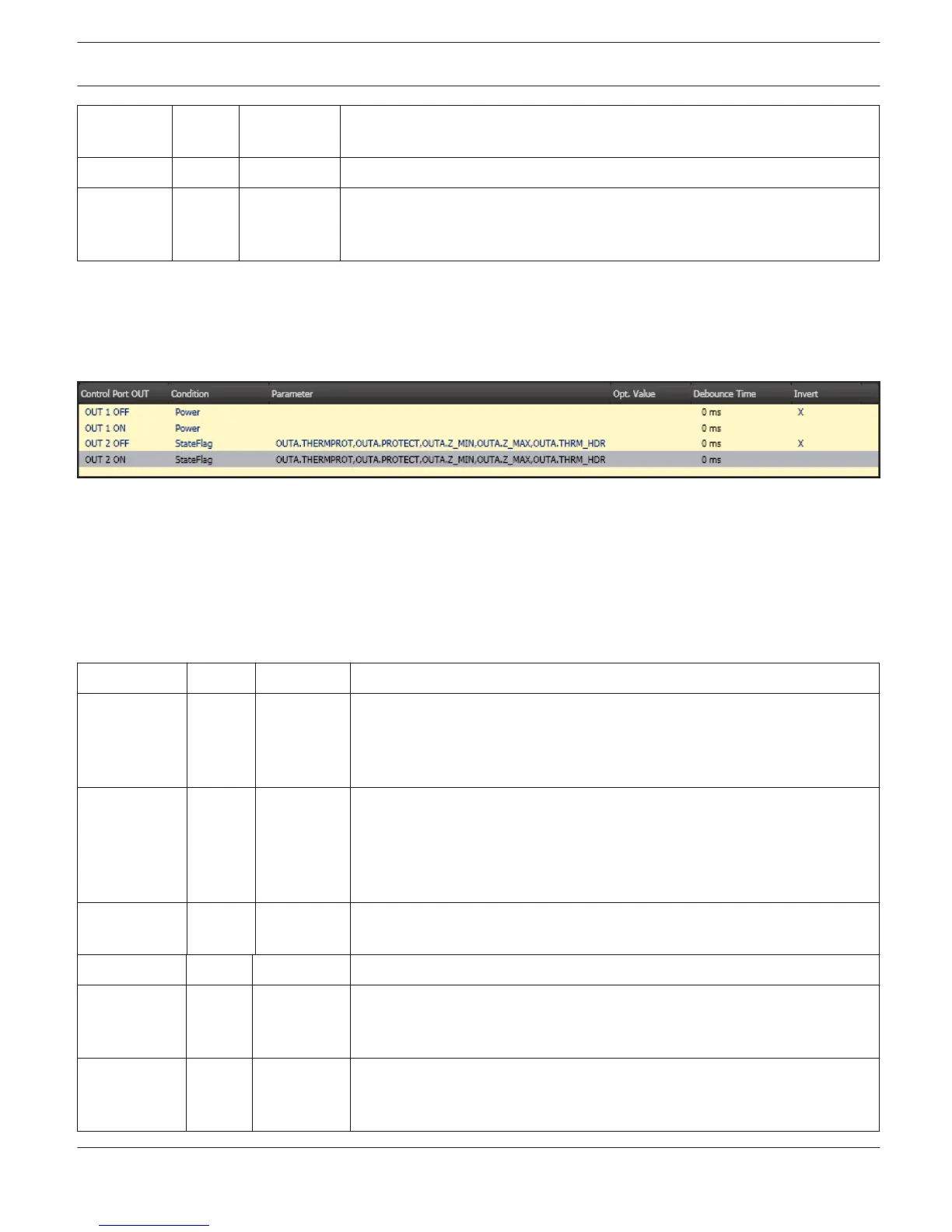

Example:
This example shows the programming of two control outputs where OUT1 signals whether the amplifier’s power is
switched ON or OFF while OUT2 signals faulty operation.
– OUT1 OFF: Invert Power (control output 1 is open when the amplifier’s power is switched off / stand-by mode)
– OUT1 ON: Power (control output 1 is closed when the amplifier’s power is switched on)
– OUT2 OFF: Invert Error flag (control output 2 is open when no faults have occurred)
– OUT2 ON: Error flag (control output 2 is closed when operational faults according to the parameter list have
occurred)
Element Default Range Description
Control Port
OUT
OUT 1 OFF
OUT 1 ON
OUT 2 OFF
OUT 2 ON
This provides a listing of the two control outputs and their statuses ON and
OFF. The entries in the corresponding lines specify which status results in
the closing (ON) or opening (OFF) of a contact.
Condition (empty) This column allows assigning internal events (conditions) to a control
output’s statuses. Clicking the desired line in the Function menu opens a
dialog field that shows all accessible functions. The table "Output and
Transmit Job Conditions" lists all functions together with their individual
settings.
Parameter (empty) Here you can set the different function parameters. For more information,
please refer to the table "Output and Transmit Job Conditions".
Opt. Value (empty) Certain functions allow specifying optional parameter values.
Debounce
Time
0 ms 0...10027 ms
16.33 ms
Steps
Here you can program delay or debouncing times. An event is signaled
following an internal status change and after the specified time interval has
past.
Invert (empty) (empty) / X This column allows entering whether a status is signaled when the specified
Condition is „true“ (no entry) or
„false“ (click „X“ to signal an inverted state).
IRIS-Net REMOTE AMPLIFIER | en 253
