7. The message “Finishing .. ok” indicates that upgrading has been successful. The remote amp(s) are reset. After-
wards they are again ready for operation. The upgrade procedure is finished and you can close the dialog window
or proceed with upgrading other remote amps.
Firmware update of the amplifier

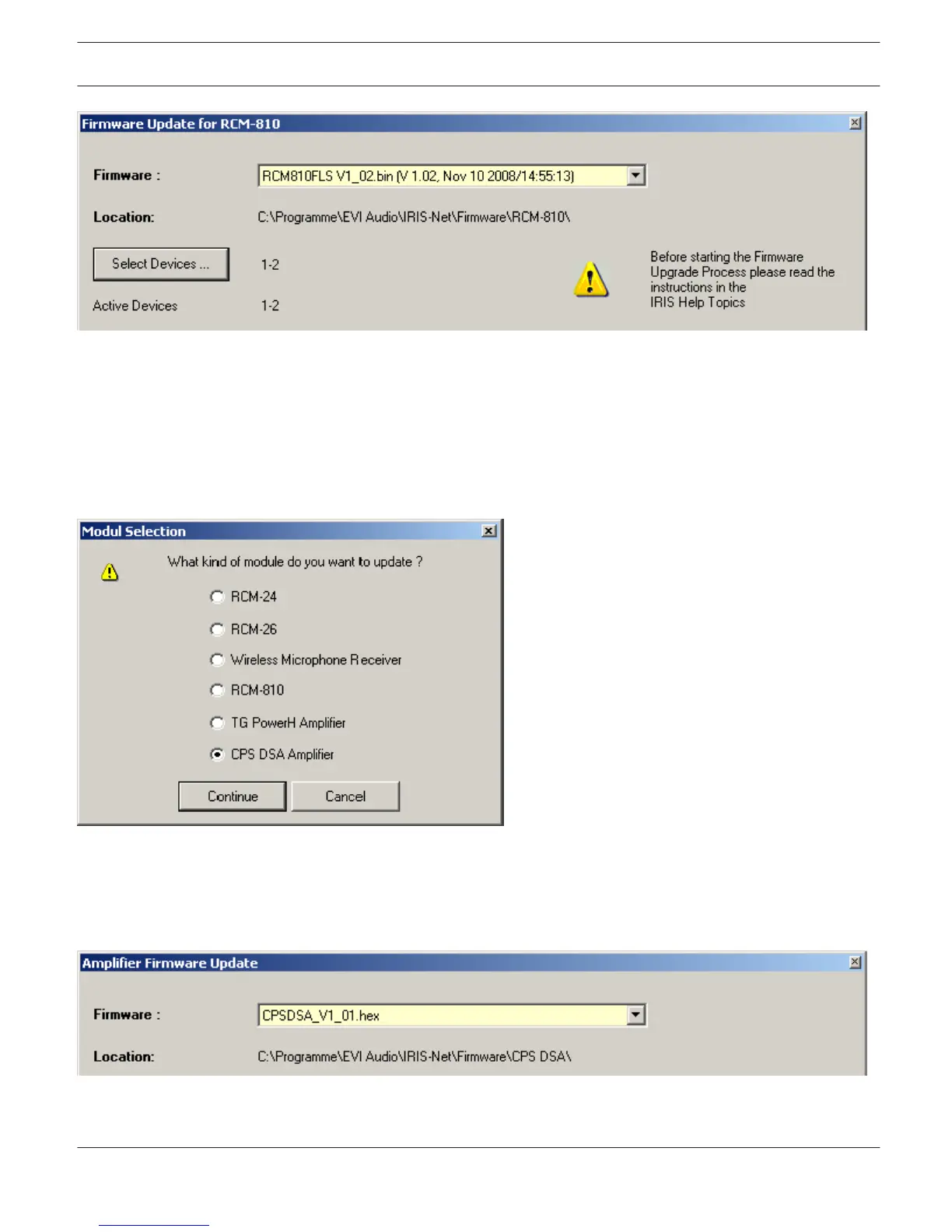

1. The CAN-interface window provides a toolbar (top line). Clicking onto the U-icon (Update) opens a Module
Selection dialog.
2. Select CPS DSA Amplifier and click onto Continue.
3. The actual firmware file including version number and date is indicated and can be selected in the line “Firmware”.
The IRIS-Net software package always includes the most up-to-date remote amplifier firmware version. The
corresponding file is located in the directory: \IRIS\Firmware\CPS DSA. This path also appears in the line
“Location”. If you want to install a different (preferably newer) firmware version, you have to copy the
corresponding file into this directory first.
4.
Select the amplifier that you want to update and click the “OK” button. The list should only show amps that you
want to update. No other amplifier should be connected to the CAN-bus.
IRIS-Net REMOTE AMPLIFIER | en 304
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
