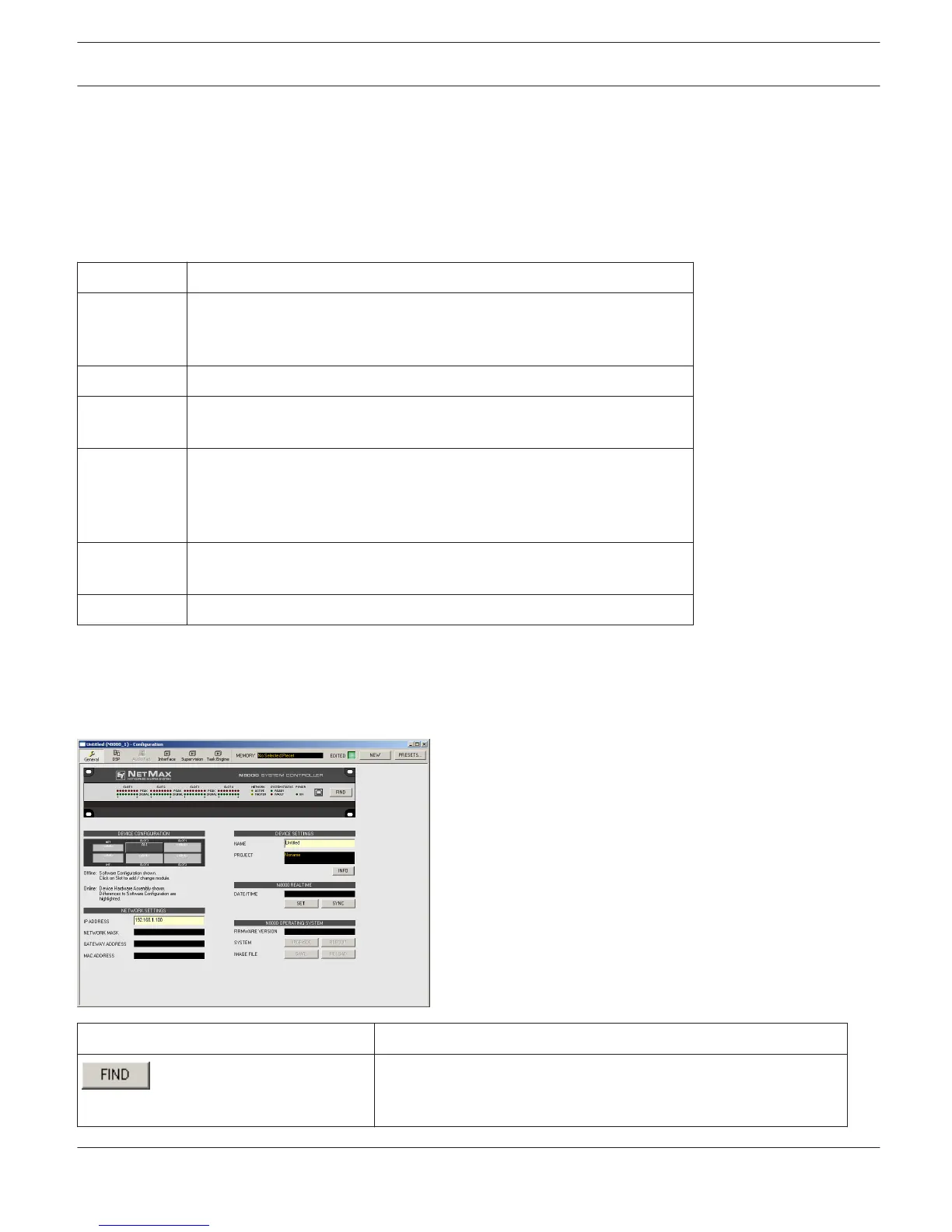

Double clicking on an N8000 device icon opens the configuration dialog window. Double clicking on a device for the
first time will open the General dialog box. Here, you can specify initial settings that are necessary for further
configuration and communication. Additional configuration windows can be navigated to by clicking on the icons at the
top of the window. However, as a basic rule, IRIS-Net will remember which window was used last and reopen to this
window next time you double click on the N8000 device icon.
The following table lists all available N8000 dialogs with a short description for each. For more detailed information,
please refer to the appropriate chapters.
Dialog Description
General This window allows hardware settings to be configured, e.g. input/output
module slots, network settings, device name, system time and firmware
version.
DSP The DSP window lets you configure all DSP-parameters of the N8000.
Audio Net This window provides detailed information and configuration of the
CobraNet CM-1, Dante DM-1, or OMNEO OM-1 module.
Interface From this window the N8000 CAN bus, RS-232 ports and GPIO control
port interfaces can all be configured.
HINT: Ethernet interface settings are explained under General dialog in
the paragraph Network Settings.
Supervision This window provides an overview of the operational state and current
fault status of the N8000.
Task Engine This window lets you configure the N8000 Task Engine.
General Dialog
Double clicking on a N8000 by default opens the General dialog box. Here, the user can make basic settings that are
necessary for flawless operation. All elements of the displayed N8000 front panel are active in on-line mode and
correspond to the actual indicators on the unit.
Element Description
A click on the FIND button lets the LEDs on the front panel of the
N8000 blink. When on-line, this allows for easy identification of the
N8000 the user communicates with at the moment.
IRIS-Net DIGITAL MATRIX | en 316
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
