Bosch IRIS-Net User Manual

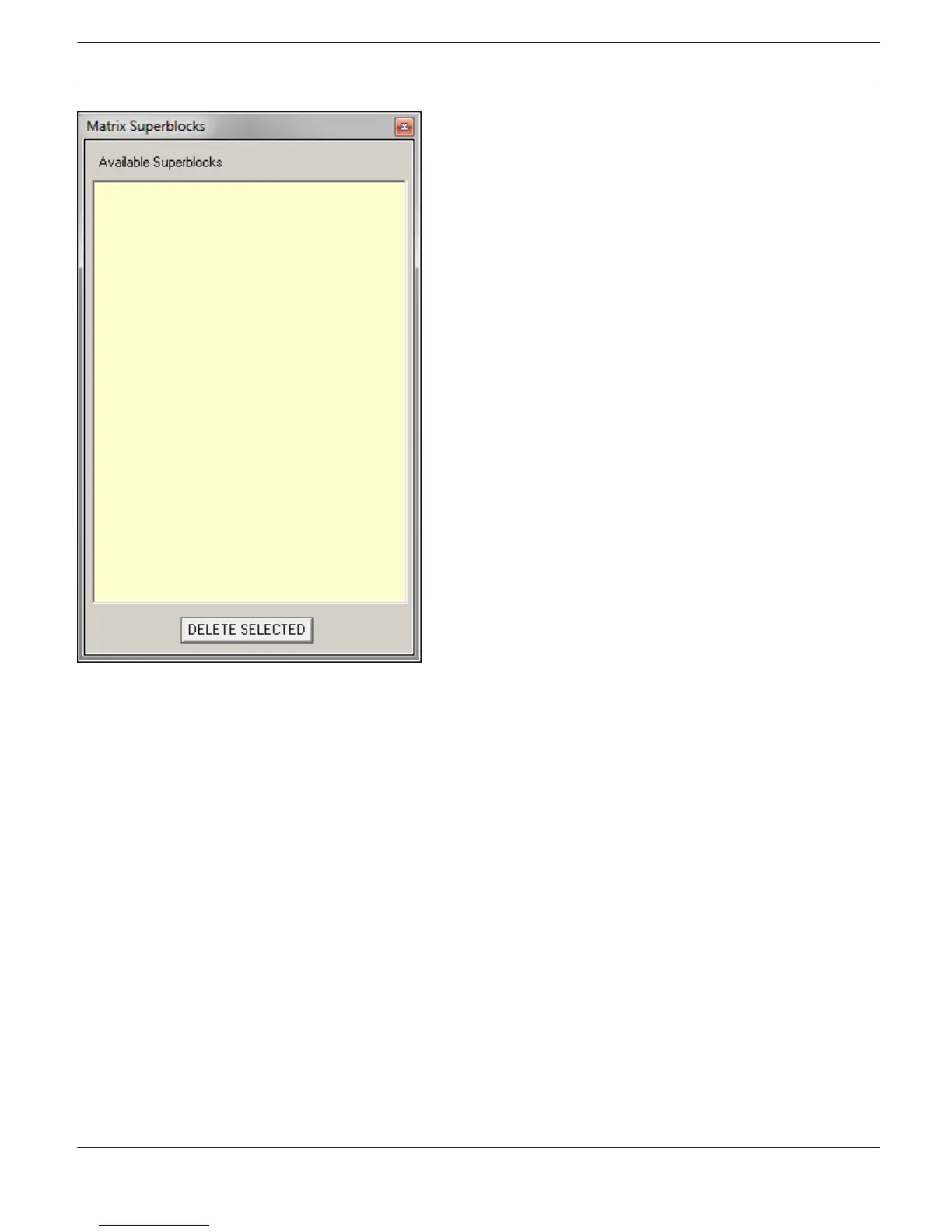

1. Select the Super Block to be deleted in the Available Superblocks list.
2. Click on the DELETE SELECTED button to delete the selected Super Block.
AudioNet Dialog
HINT: The AudioNet dialog is only accessible if a CM-1, DM-1, or OM-1 is assembled in the General Dialog.
CM-1
This window provides detailed information about a CM-1 CobraNet module installed in the N8000. In addition, all
received and transmitted bundles are listed in an overview. A CM-1 allows sending up to four bundles and receiving up
to four bundles at the same time. The DSP blocks CobraNet Inputs provide the possibility to select a bundle to be
received while the DSP blocks CobraNet Outputs allow configuring one bundle each for sending, including its
contained channels.
IRIS-Net DIGITAL MATRIX | en 323
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
