Element Default Range Description
RAMP TIME 20 ms 1...20000 ms Time constant of faders
RMS IN 10 ms 1...2000 ms Time constant of RMS measurement of input signals.
RMS DUGAN 10 ms 1...2000 ms Time constant of RMS measurement of dugan-gain weighted input
signals.
DIV DUGAN 10 ms 1...2000 ms Time constant for weighting rate of input signal level, based on total
level.
DIV FINAL 10 ms 1...2000 ms Time constant for rate of level change.

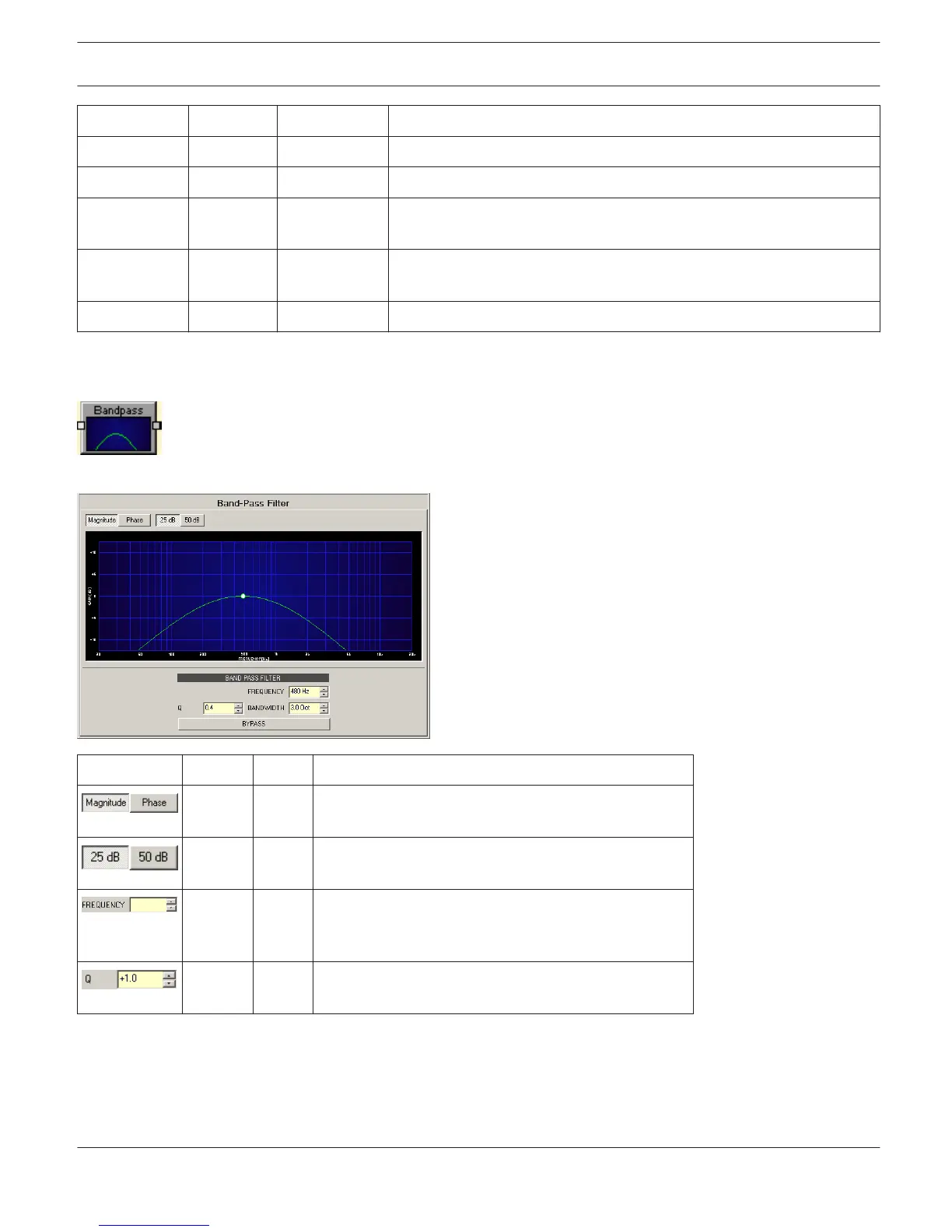

BAND-PASS FILTER
A band-pass filter is a device that passes frequencies within a certain range and rejects frequencies
outside that range. The frequency and quality of the filter is adjustable.
Element
Default Range Description
Switches between frequency (magnitude) and phase
response (phase) indication.
Switch for selecting dB-axis scaling of 25 dB (± 12.5
dB) or 50 dB (± 25 dB).
1000Hz 20
Hz...20
kHz
FREQUENCY sets the center frequency of the band-
pass filter.
1 0.4...1
00
The Q-value sets the quality and thus the response of
the band-pass filter.
