CLOCK ACCURACY Level 1...3 Indicates the clock accuracy (in Consumer
mode only)
ORIGINAL Indicates if the Original bit is set.
SRC WORD LENGTH not
indicated,
17...24
Indicates the source word length (in
Professional mode only)
LOW GROUP DELAY Allow activating the option Low Group Delay
of the sample rate converter‘s interpolation
filter
CHANNEL BLOCK
CRC
Lights red, if the transmission of the Channel
Status Block was not correct.
VALIDITY Lights red, if the received audio data is not in
PCM format.
CONFIDENCE Lights red, if the signal quality is not good
(e.g. Jitter)
The first 5 bytes of the Channel Status block
are indicated for each input channel.

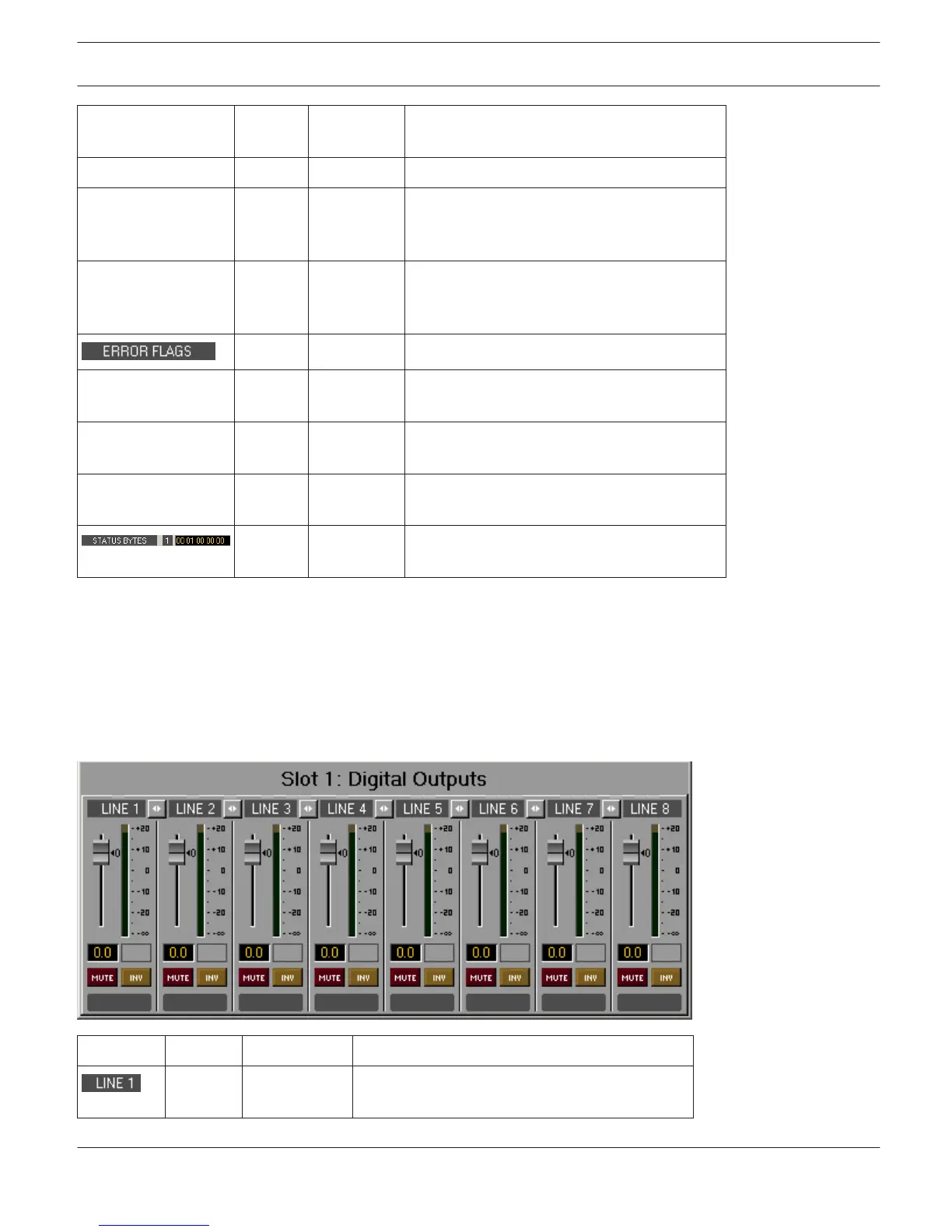

DIGITAL OUTPUTS
The DSP block Digital Outputs provides access to the eight outputs of an DO-1 Digital Output Card. Establishing
independent settings for each output channel is possible. A fader with ramping function as well as Mute and Invert
buttons serve as controls. Each output channel has its individual level indicator. Adjacent channels can be linked
together using the LINK button. This allows for the convenient synchronous setting of several output channels, e.g. for
stereo signals.
Element Default Range Description
Permanent channel labeling. Channels are
numbered from LINE 1 to LINE 8.
IRIS-Net DIGITAL MATRIX | en 394
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
