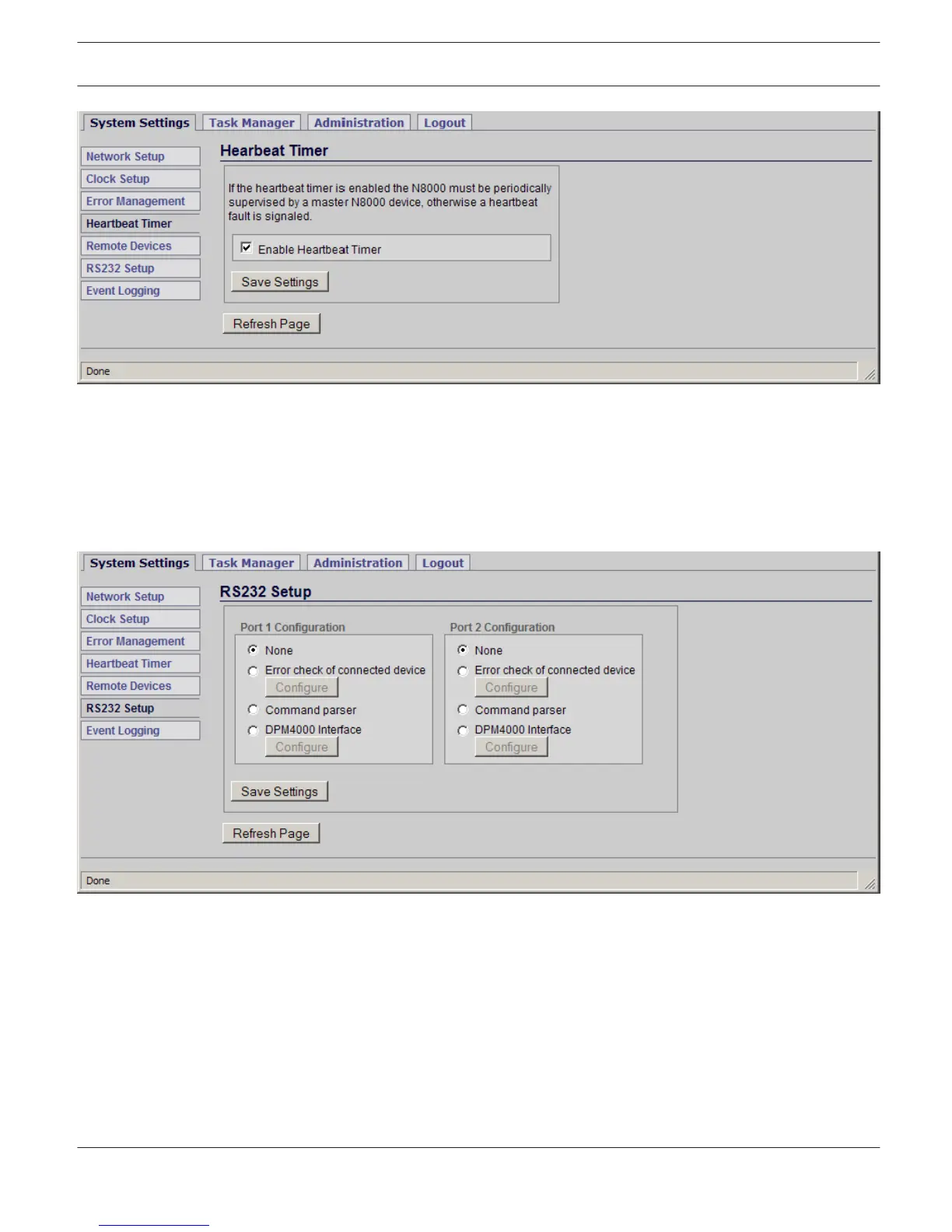

RS-232 Setup
The two RS-232 ports of a N8000 can be used to monitor other devices, for sending and receiving commands and for
the connection of a ProMatrix/ProAnnounce DPM 4000.
HINT: Simultaneous utilization of the two RS-232 ports as Command parser and DPM4000 Interface is not possible.
If the Error check of connected device configuration is selected for one of the RS-232 ports, the user can use the
corresponding Configure button to open the Error Check Parameters window to set interface transmission method and
polling parameters.
IRIS-Net DIGITAL MATRIX | en 500
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
