15. Check the new project on the Touch Panel.
16. Click on button OK in the IRIS-Net Update Server dialog on the Touch Panel.
Updating the IRIS-Net application file
The purpose of this procedure is to build a connection between a PC and a TPI-5 and updating the IRIS-Net project file
of the TPI-5. In the following it is assumed that the file to be transferred is available at the PC and the network settings
are set to factory defaults.
1. Connect the network connection of your PC to the Ethernet interface of the TPI-5 with a crossover cable, or with a
patch cable and a hub/switch.
2. Activate the power supply system of the TPI-5.
After some seconds a IRIS-Net project signals the successful start activity of the TPI-5.
3. On your PC click on Start > All Programs > Accessories > Command Prompt.
The window Command Prompt appears.

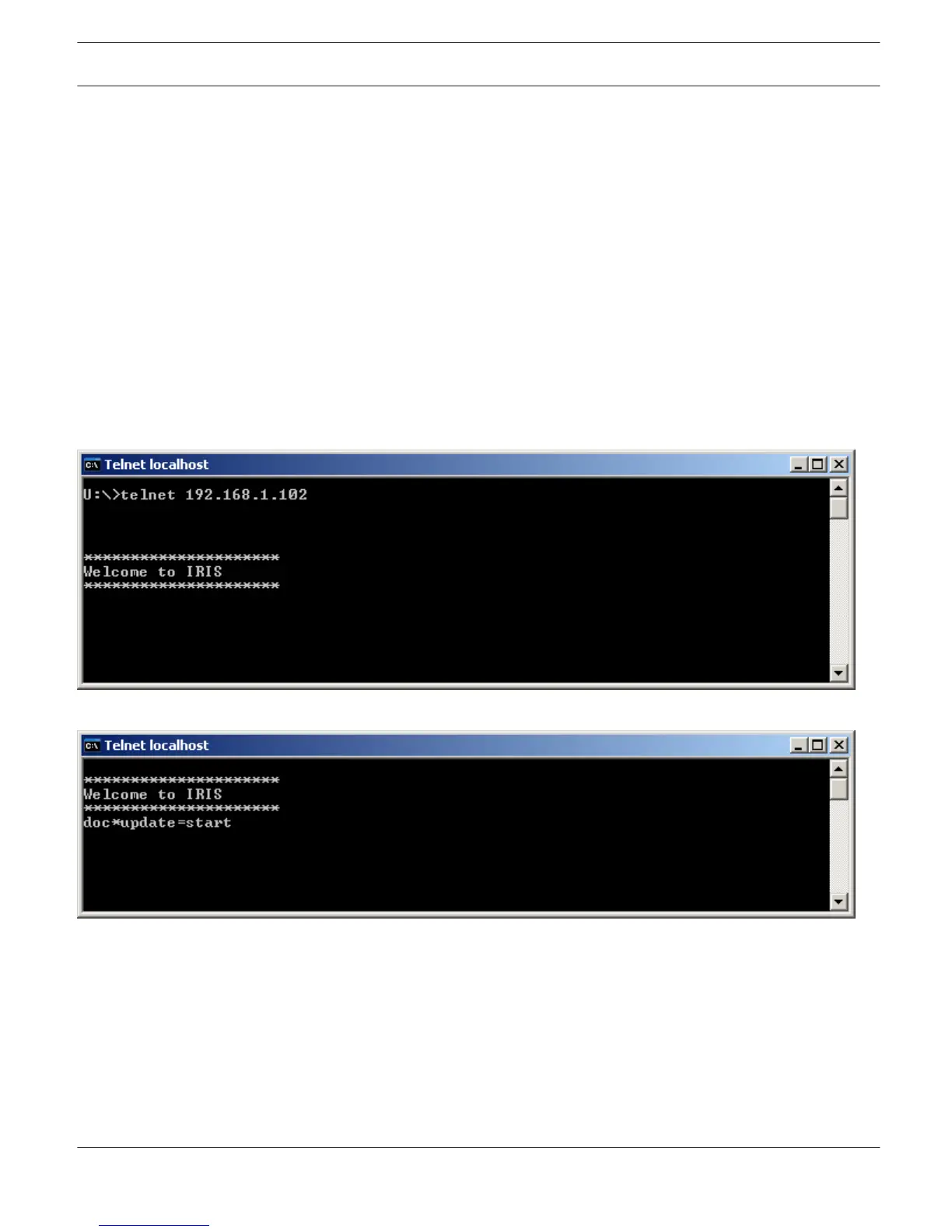

4. Enter telnet 192.168.1.102 and tap the return button.
The message "Welcome to IRIS" is indicated.
5.
Enter doc*update=start and tap the return button.
Figure 5.2: The IRIS-Net Update Server dialog appears on the screen of the TPI-5. The TPI-5 is now ready to receive.
IRIS-Net TOUCH PANELS | en 536
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
