1. Connect the network connection of your PC to the Ethernet interface of the TPI-8/TPI-12 directly with a crossover
cable, or with a patch cable and a hub/switch.
2. Activate the power supply system of the TPI-8/TPI-12.
After some seconds a IRIS-Net project signals the successful start activity of the TPI-8/TPI-12.

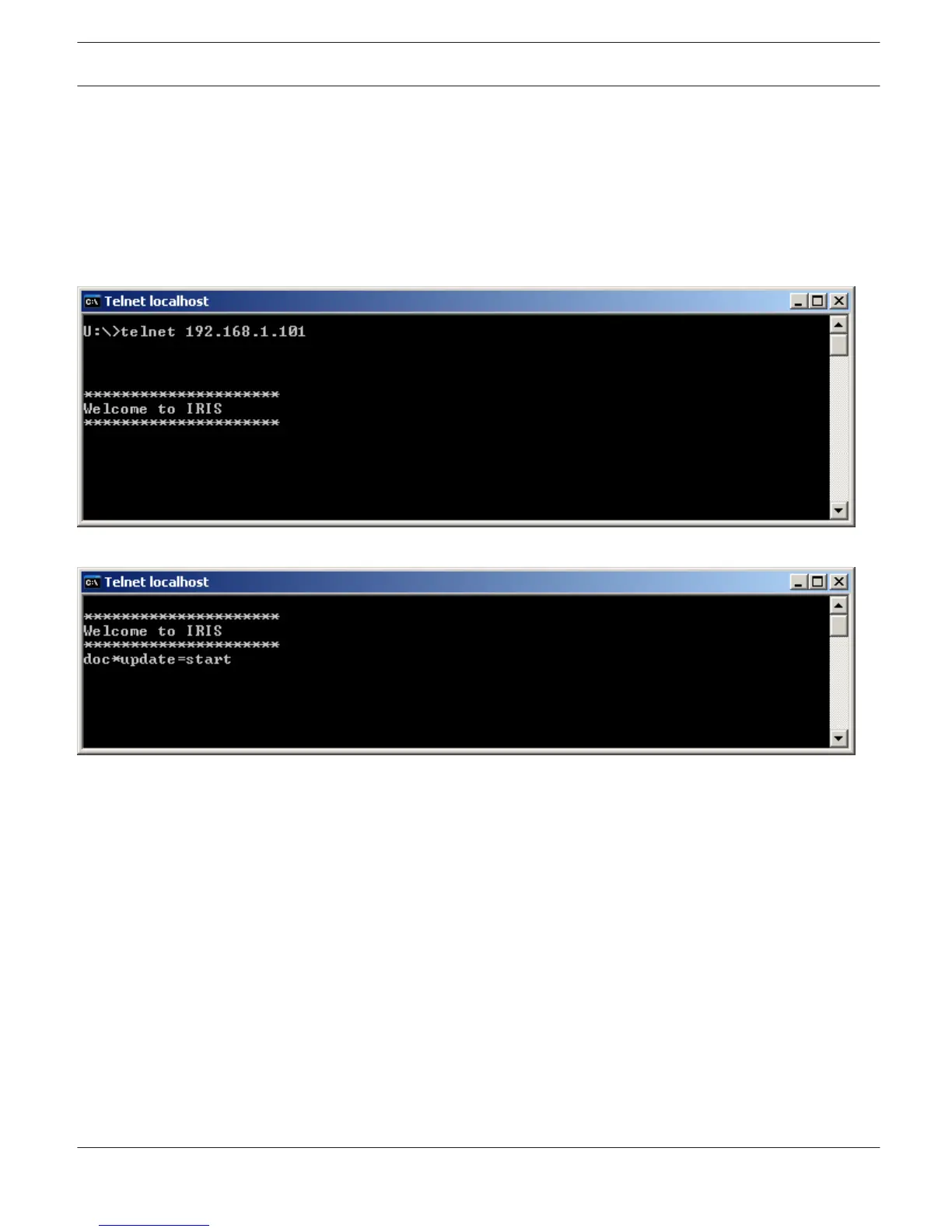

3. Click on Start > All Programs > Accessories > Command Prompt.
The window command prompt appears.
4. Enter telnet 192.168.1.101 and tap the return button.
The message “Welcome to IRIS“ is indicated.
5. Enter doc*update=start and tap the return button.
Figure 5.5: The dialog IRIS-Net Update Server appears at the screen of the TPI-8/TPI-12. The TPI-8/TPI-12 is now ready-to- receive.
IRIS-Net TOUCH PANELS | en 544
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
