Reference

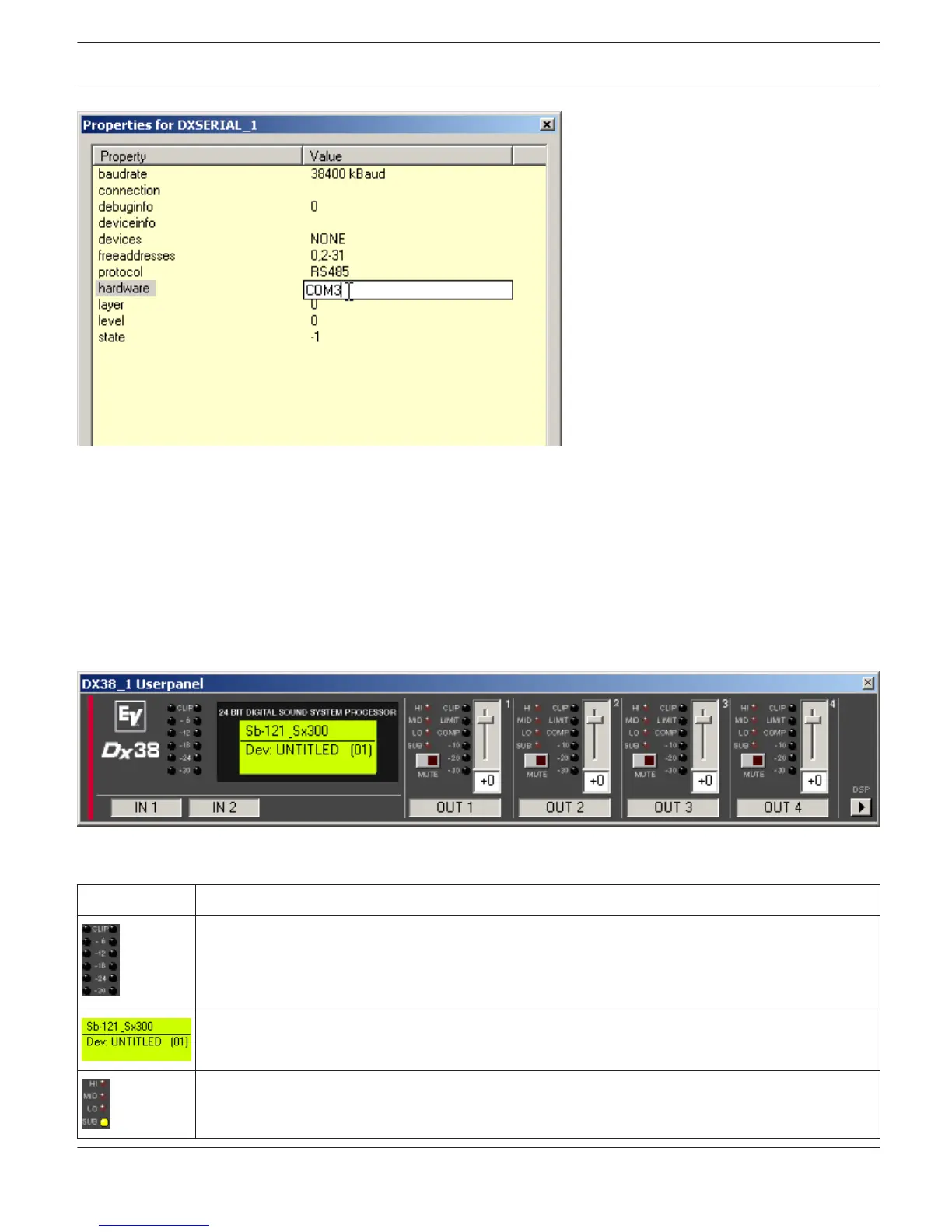

DX38 USER PANEL
The Dx38 User panel provides access to the controls and indications at the Dx38 front panel. The complete
functionality available at the Dx38 LC-Display can be accessed via pressing the DSP button.
Indications and Functions of the Dx38 User panel
Element Description
The level meter instruments are meant for optical monitoring of the input signal levels, individually
showing the peak value of the correspondent input signal. The input control should be set to a
position so that the meter instruments indicate a level between -6 and -12 dB. To prevent inter- nal
clipping, make sure that the CLIP LEDs are not lit.
Line 1 displays the description of the selected User Memory. Line 2 displays the description of the
device and its address at the RS-485 bus.
These LEDs indicate, which frequency band the corresponding channel is set to. If a channel is
configured for full range operation, all its func- tion-LEDs are simultaneously lit.
IRIS-Net DIGITAL SOUND PROCESSOR | en 552
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
