quality. Overlaying the measured frequency- and phase responses in the equalizer and crossover windows enables the
user to customize the filter parameters. The summing display mode shows the result of sound system processor plus
speaker transfer functions.

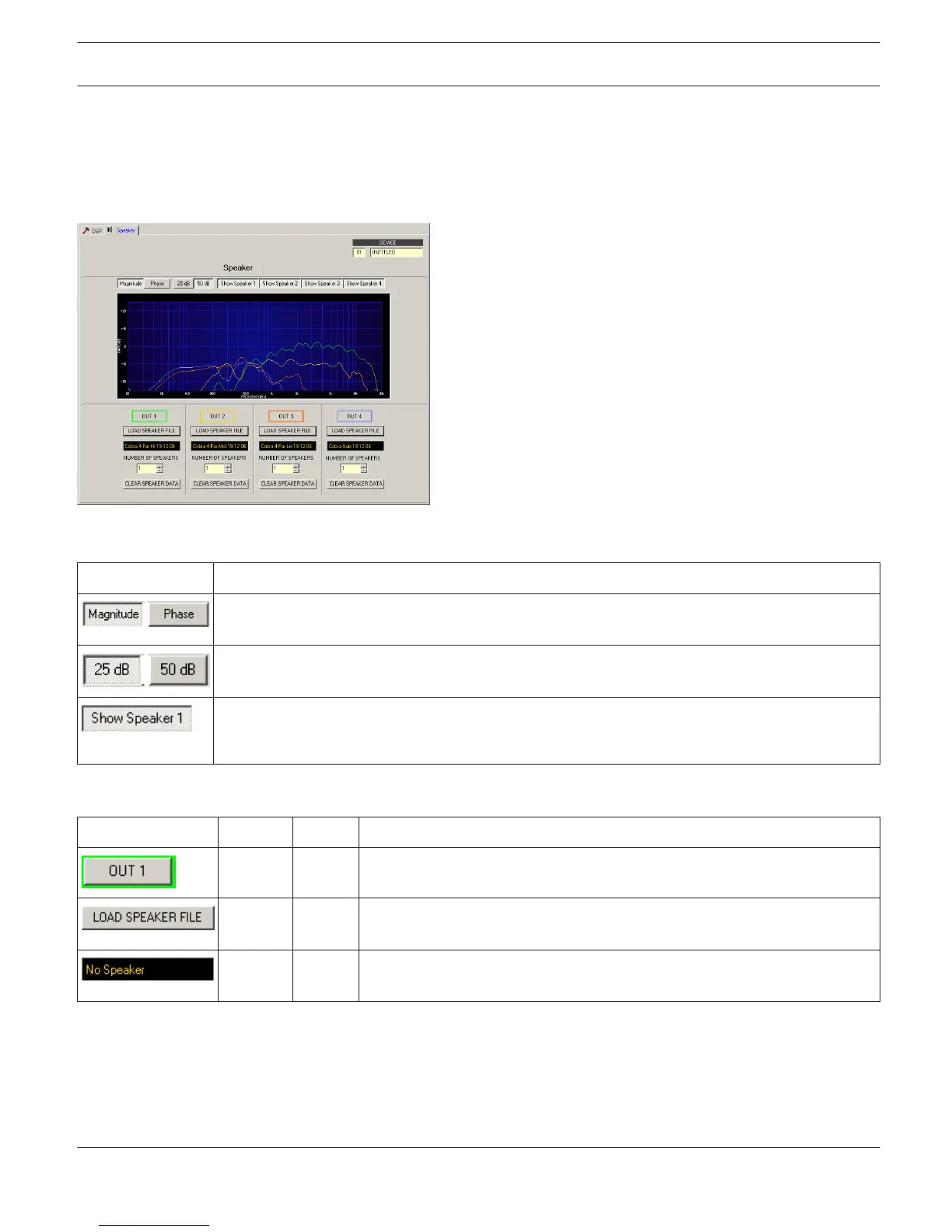

Clicking on the Speaker tab in the Setup & Control window opens the Speaker page.
Indication on the Graphic Display
Element
Description
Switch for toggling between frequency response (magnitude) and phase response (phase)
display
Switch for adjusting the scale of the amplifier axis to 25 dB (± 12.5 dB) or to 50 dB (± 25 dB)
Switching the display of the corresponding speaker data for an sound system processor channel
on/off is performed using the ”Show Speaker 1” to ”Show Speaker 4” switches.
Channel Parameters
Element
Default Range Description
Channel name.
Clicking the button LOAD SPEAKER FILE opens a dialog that allows the
selection of the desired speaker file.
The name of the loaded loudspeaker model is shown in the black-shaded
field.
IRIS-Net DIGITAL SOUND PROCESSOR | en 574
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
