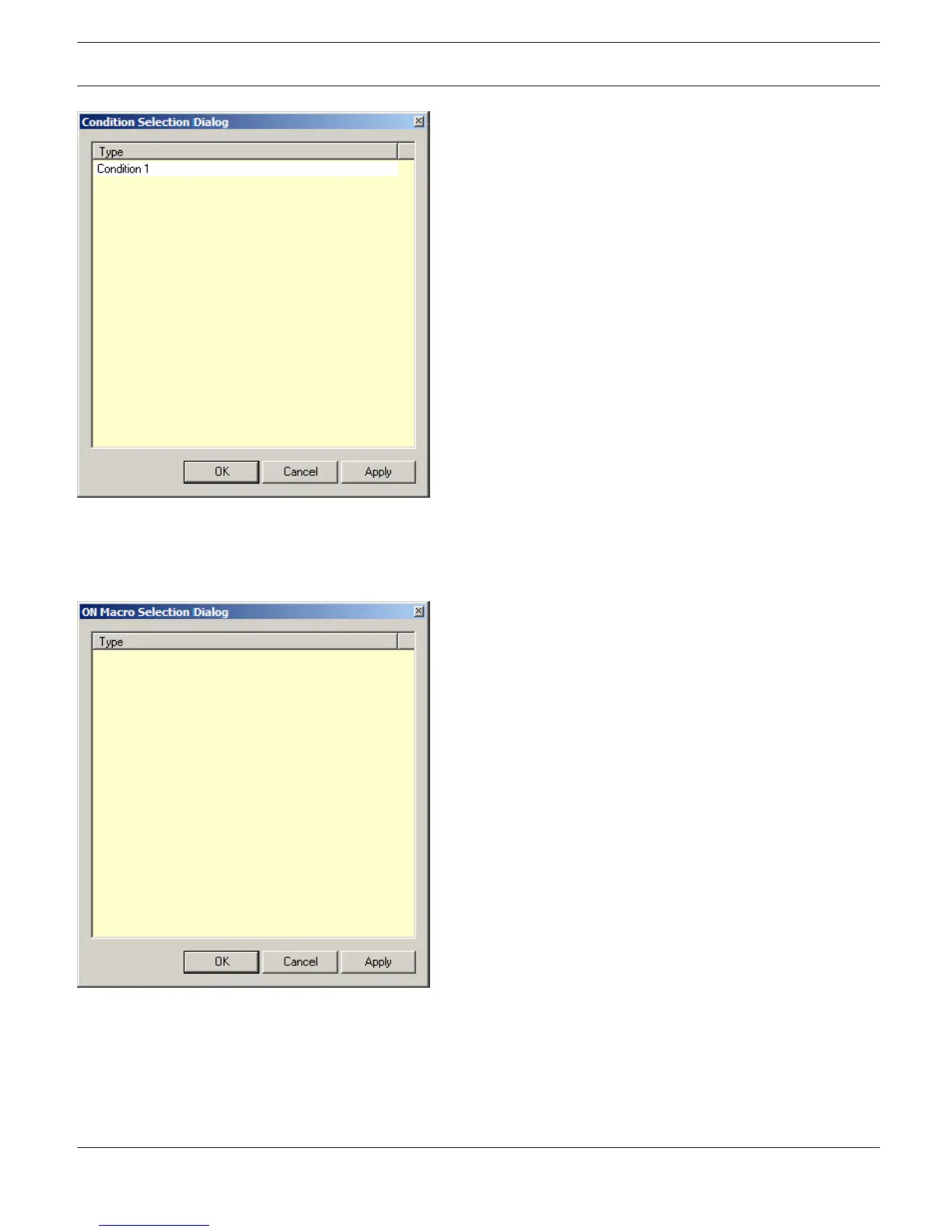

The ON Macro Selection Dialog Window lets the user select the macro that will be executed when the status of the
condition changes from "false" to "true". Equally, the OFF Macro Selection Dialog Window lets the user select the
macro that will be executed when the status of the condition changes from "true" to "false".
IRIS-Net
IRIS-Net | en
59
Bosch Security Systems B.V.
User Manual
2017.05 | 3.20 | F.01U.119.956
58
60
Table of Contents
Table of Contents
3
Table of Contents | en
4
Notes on the IRIS-Net Documentation
5
Preface
5
IRIS-Net System Requirements
6
Installation
6
IRIS-Net Directory Structure
6
Basics of IRIS-NET
6
Controls
7
Documentation
7
Driver
7
Firmware
7
Speaker Files
8
User Controls
9
Speaker Settings
9
Tools
9
Creating a New Project
10
Introduction
10
How to Edit an Existing Project?
13
Going On-Line
13
Ethernet On-Line Dialog
14
CAN On-Line Dialog
15
Object List
18
Object Bar Categories
18
Adding Devices
18
IRIS-Net Objects
18
Adding Controls
20
Adding Interfaces
20
Button Controls
21
Parameter Controls
21
Display Controls
22
Advanced Controls
22
Special Controls
24
How to Configure a Control
24
Adding User Controls
25
RCM-24 User Controls
26
RCM-26 User Controls
28
RCM-28 User Controls
30
RCM General User Controls
31
Matrix User Controls
35
Interface User Controls
36
Miscellaneous User Controls
37
EOL User Controls
37
How to Configure a User Control
38
Adding Graphics
39
Adding Textboxes
40
Using Groups
41
Connections
43
Editing Object Visibility
44
Editing Project Info
45
Software Update
45
How to
45
Edit Application Settings
46
Using the SPL Calculator
47
Limiter Threshold Calculator
48
Using the Event Scheduler
49
Holiday
53
Macros
55
Using the Macro Editor
55
Triggers
57
Conditions
60
Timed Condition
62
Using the Scene Editor
64
Searching/Configuring Devices on the Ethernet
65
Editing Network Settings
66
Searching OMNEO-Devices on the Ethernet
66
Event Logging Setup
69
Changing Available Devices
70
Remote Control Network / Interface
70
Connecting an UCC1 USB-CAN Converter to the PC
74
Setting up a Remote Amplifier System
74
Address Setting
74
Setting up a Remote Amplifier System Using a UCC1 USB-CAN Converter
74
Set CAN Baud Rate
75
Main Window
77
Reference
77
Menus, Commands and Symbol Bar
78
Menu “Configuration”
80
Menu “Tools”
80
Pushbutton
83
Remote Amps UI
88
Single Channel Group Dialog (DSPUI)
89
Rcm26Remoteampsui
92
Rcm26Dspui
93
Master EQUI X Band
97
System Crossover_X Way
97
N8000_Geq_Xway
98
N8000_Lsc_Xway_Mono
99
N8000_Peq_Xband (_Mono)
99
N8000_Tonecontrol_Mono
100
N8000_Tonegenerator_Mono
100
N8000_Delay_Xms
100
Remote Amplifier
101
P-Series
101
Remote Power Amps
102
Checking/Editing the Configuration
103
Testing the Connected Loudspeaker Systems
104
Overview of All Amps Used in a Project
105
Amplifier Control Panel
107
Control Functions
111
Setup & Control
111
Jobs
115
Dsp
119
Flow Diagram Selector
119
Flow Diagram
119
Function Blocks
120
Routing Block
121
Channel EQ Block
121
Crossover Block
121
Level Block
121
Store / Recall / Preview
122
Output Block
122
Status Indication
122
Dynamics Block
122
Import / Export of Preset Files
123
Import of EV RACE Files
123
Master Eq
124
Graphics Display Indication
125
Channel Selection
125
Filter Parameters
126
Filter Editing Via “Mouse Movement” in the Graphics Display
127
Master Delay
127
Channel Parameters
127
Channel Identification
128
Channel Eq
128
Editing Delays by Dragging the Mouse in the Graphics Display
128
General Parameters
128
Filter Editing Via Mouse Movement in the Graphics Display
131
X-Over
131
Editing X-Over Filters by Dragging the Mouse in the Graphics Display
134
Dynamics
134
Speaker
138
Indication on the Graphic Display
138
Load
139
Parameters for Impedance Measurement
141
Supervision & Test
141
Control Inputs and Control Outputs
142
Test Generator Parameters
142
Detailed Explanation of Individual Fault Indications
143
Error Detection
143
System Examples
145
Demo System Small
145
RS-232 Protocol for EV P-Series
154
General Dsp Parameter Description
162
Dsp Parameter Index Table
163
Control Inputs - GPI Functions
166
Job Codes - Receive Functions
166
Control Outputs - Gpo Functions
168
Job Codes - Transmit Functions
168
Firmware Upgrade
170
How to Upgrade the Firmware
171
Additional Notes Concerning a Firmware Upgrade
174
Using RCM-26 Remote Amplifiers
176
Remote Amplifiers
177
Dynacord Powerh Serie
177
Electro-Voice Tour Grade Serie
177
Config & Info
182
Amplifier Info
182
Amplifier Setup
183
Digital Input
183
Switching Audio Inputs Automatically
184
Amplifier & Channel Labels
184
Control Port
185
Control Outputs
185
Input and Receive Job Function
188
Output and Transmit Job Conditions
189
Switching Sample Rate
195
Preset after Startup
195
Fir-Filter
206
FIR Filter Design
208
Limiters
209
Peak Limiter Parameters
210
Thermal Limiter Parameters
210
Indications
211
Editing Limiter Parameters by Dragging Mouse in the Graphics Display
211
State/Error Flags
231
Device State Flags
231
Input Channel State Flags
232
Output Channel State Flags
232
Rcm-28
243
DIGITAL SOUND PROCESSOR DX38 Digital Sound Processor DSP
244
Rcm-810
288
Rev Wireless Microphone System
307
Introduction
307
REV Device
308
REV Control Panel
308
Setup & Control
310
Digital Matrix
315
Netmax N8000 System Controller
315
P 64 Digital Matrix
339
N8000 and P 64
363
Touch Panels Tpi-5
529
Tpi-8/Tpi-12
540
Dsp 600 Fir-Tune
603
Dx46 FIR-DRIVE
649
Dx46 and DSP 600
694
Updating the Firmware
708
Pws Programmable Wall Station
710
PWS Device
710
Operation
711
Configuration
711
Button Types
714
Channel Selection
715
Promatrix 8000
719
DPM 8016 Paging Manager
722
DPC 8000 Call Station
795
PMX-CSK Call Station Kit
810
DPA 8000 Power Amplifier
817
Control Panel
818
DCS Digital Control System
825
Promatrix 6000
834
Pmx-4Cr12
834
Pmx-4R24
888
Pmx-15Cst
893
Pmx-2P500
906
Pmx-Csk
906
Paviro
911
Pva-4Cr12
911
Pva-4R24
965
Pva-15Cst
969
Pva-Csk
982
Pva-2P500
987
