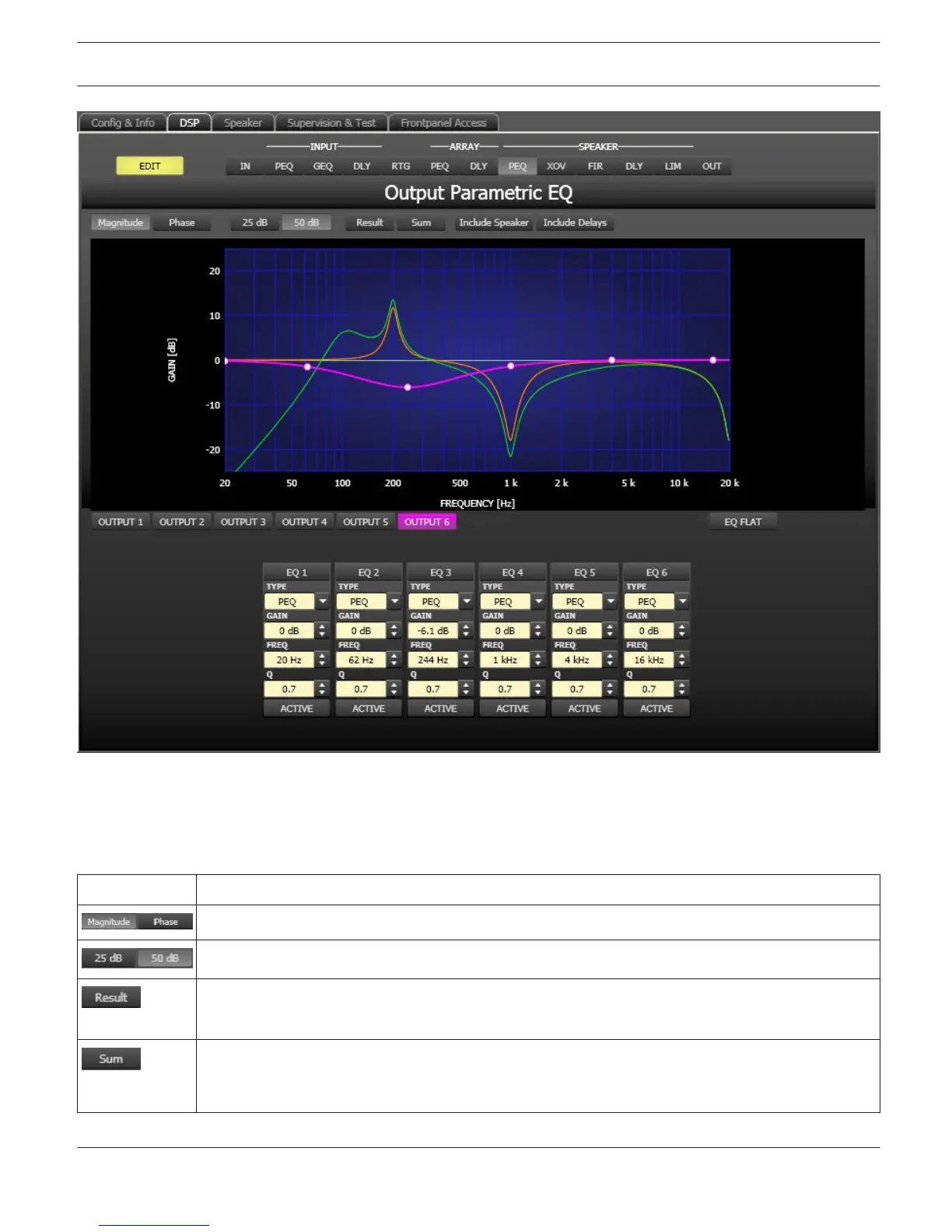

Graphics Display Indication
The graphics display offers several different display modes, as described in the following table. Display generally
includes all effects of filters that are located pre Output Parametric EQ, which always provides precise overview and
control of the resulting frequency response at this point.
Element Description
Switch for displaying frequency response (magnitude) or phase response (phase)
Switch for scaling the dB- axis to 25 dB (± 12.5 dB) or to 50 dB (± 25 dB)
Displays the resulting transfer function of all filter and level trim settings and therefore graphically
displaying the audible result at the sound system processor outputs.
The ”Sum” switch causes display of the summed signal of the output channels, including output
level and mute. If the ”Sum ” switch is not pressed the output channels’ transfer functions are
indicated separately.
IRIS-Net DIGITAL SOUND PROCESSOR | en 630
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
