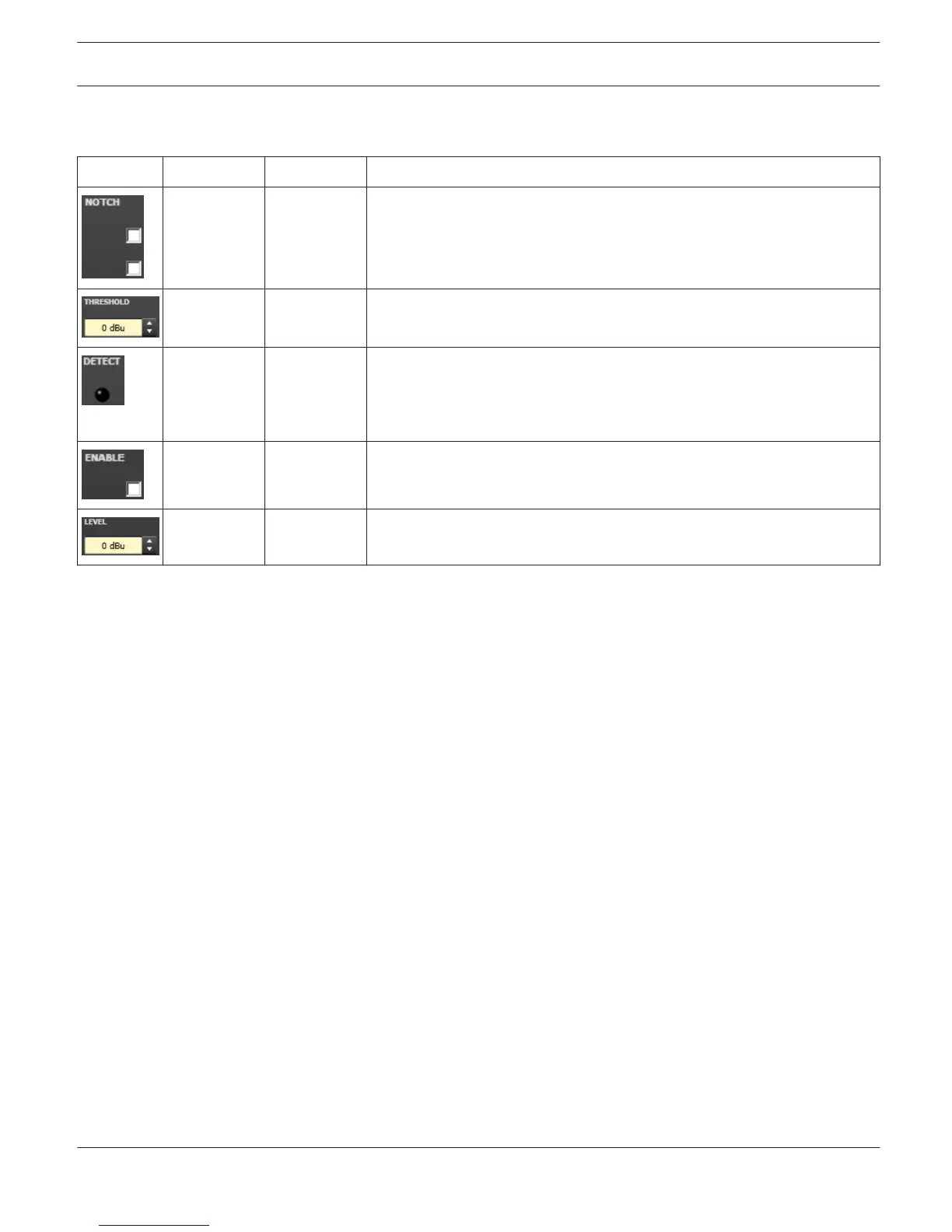

Pilot tone
Element Default Range Description
Off On / Off The checkbox activates a notch filter in input A or B. The notch filter filters
an existing pilot tone out of the input signal.
0 dBu -80 to 0 dBu This field sets the pilot tone detection’s threshold.
The pilot tone detection results in OK (LED lights green) when the level of
the pilot signal exceeds the threshold. Without a pilot tone being present
or if the signal level is below the set threshold, analysis results in a fault
message on the corresponding input channel (LED does not light).
Off On / Off Checkbox for activating or deactivating the pilot tone generator.
0 dBu -128 bis 0
dBu
Enter the pilot tone signal level in dBu.
Frontpanel Access
This dialog allows selecting which parameters should be visible and/or editable on the front panel of the DSP 600. By
default all parameters are visible (eye icon set) and can be edited (lock icon not set). Remove the eye icon of a
parameter that should not be visible on the front panel. Activate the lock icon of a parameter that should not be
editable at the front panel.
IRIS-Net DIGITAL SOUND PROCESSOR | en 647
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
