6. Enter 0 into the ON VALUE input field, so the parameter MUTE is set to 0 (= not muted) when the button is
pressed.
7. Enter 1 into the OFF VALUE input field, so the parameter MUTE is set to 1 (= muted) when the button is not
pressed.
8. Click on button MODIFY FUNCTIONS / CONNECTIONS and select function "Mute" and connection
"N8000_1.DSP.AnalogOut_1.Ch1".
9. Repeat steps 4 to 9 for Button 2 (label "ROOM 2", connection "N8000_1.DSP.AnalogOut_1.Ch2") and Button 3

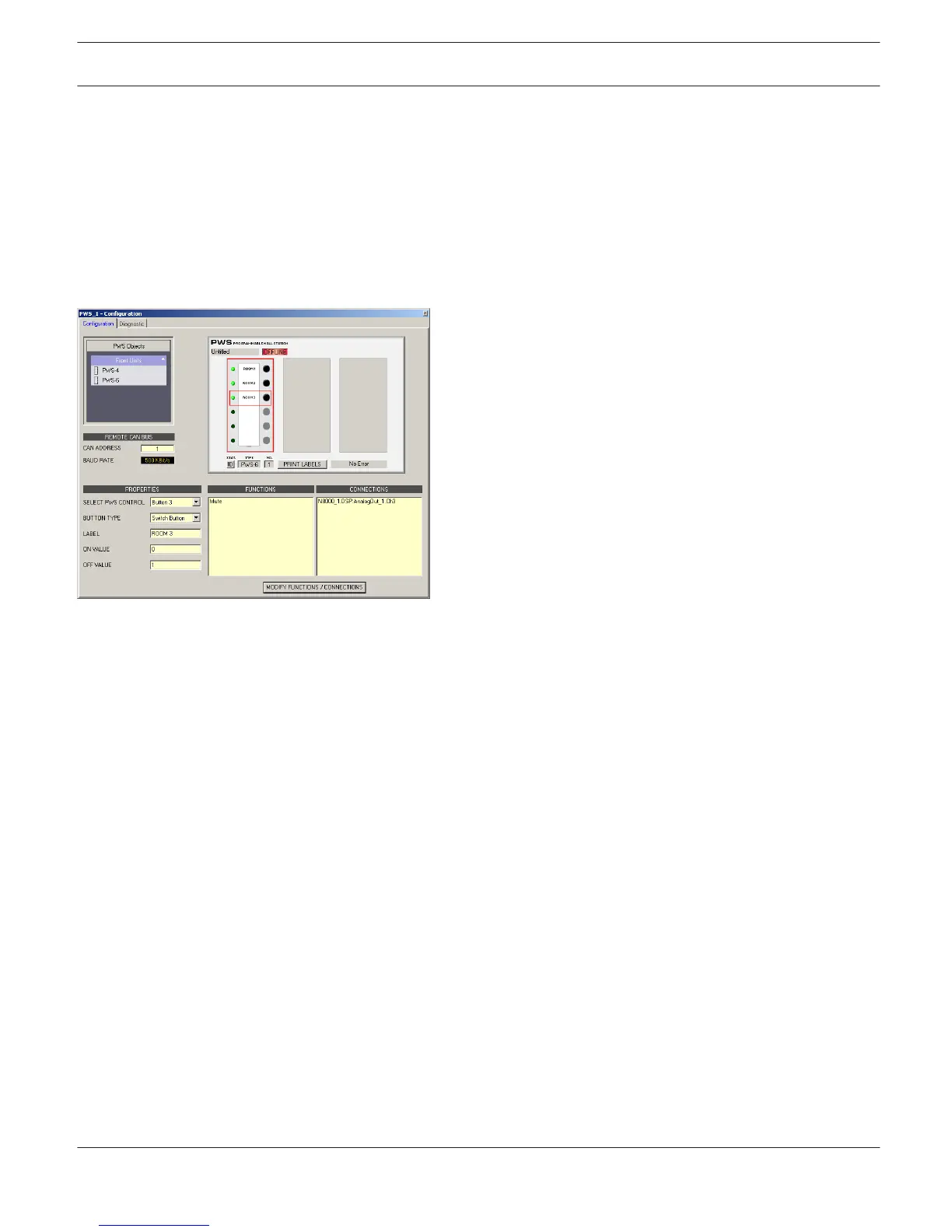

(label "ROOM 3", connection "N8000_1.DSP.AnalogOut_1.Ch3"). The following illustration shows the Configuration
Dialog after configuration of the third button is finished.
IRIS-Net
PWS PROGRAMMABLE WALL STATION | en 718
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
