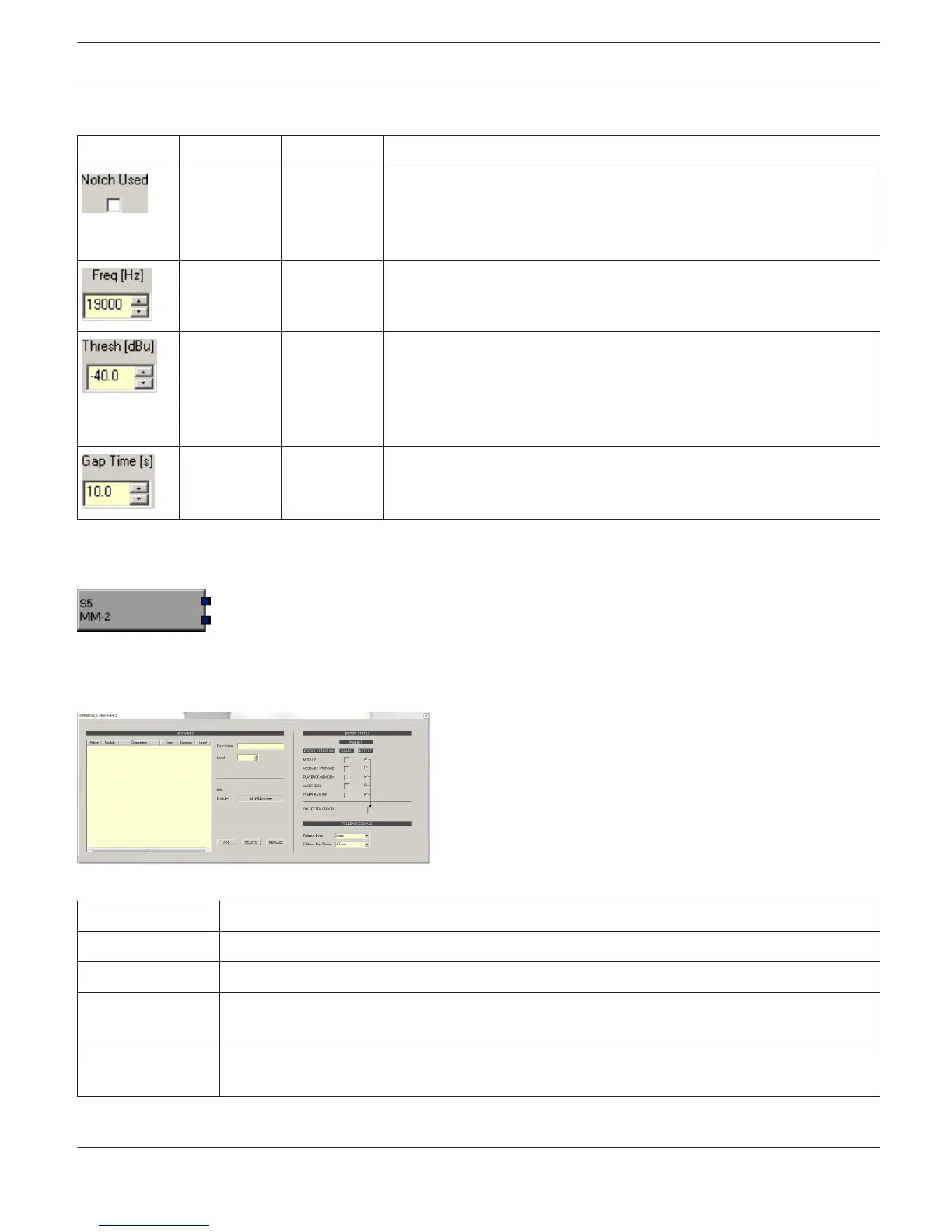

Advanced Control
Element Default Range Description
The checkbox activates a notch filter when pilot tone detection is
activated. The notch filter filters an existing pilot tone out of the input
signal, so that it will not reach components that are connected behind
the input.
19000 Hz 20 to 20000
Hz
This field sets the frequency of the pilot signal to be detected.
-40 dBu -60 to 0.0
dBu
This field sets the pilot tone detection’s threshold. The analysis results
in OK (green PLT button) when the level of the pilot signal exceeds the
threshold. Without a pilot tone being present or if the signal level is
below the set threshold, analysis results in a fault message on the
corresponding input channel (red PLT button).
10.0 s A pilot tone detection error is indicated if the pilot tone is missing
longer than the time entered in this field.
MESSAGE MANAGER MM-2
The MM-2 block provides access to the messages of an MM-2 Message Manager Module. Up to two
MM-2 modules can be used in one DPM 8016. The slot number is indicated in the block. Double click the block to open
the MM-2 dialog.
Element
Description
MESSAGES
Active Indicates the messages that are currently active (marked with a “X”).
Module Gives the number of the module, where the message is stored. The Location can be set when
adding messages.
Description The unique name or description of the uploaded message. Use the corresponding text field to
edit the description. The description can be edited in offline or online mode.
IRIS-Net PROMATRIX 8000 | en 733
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
