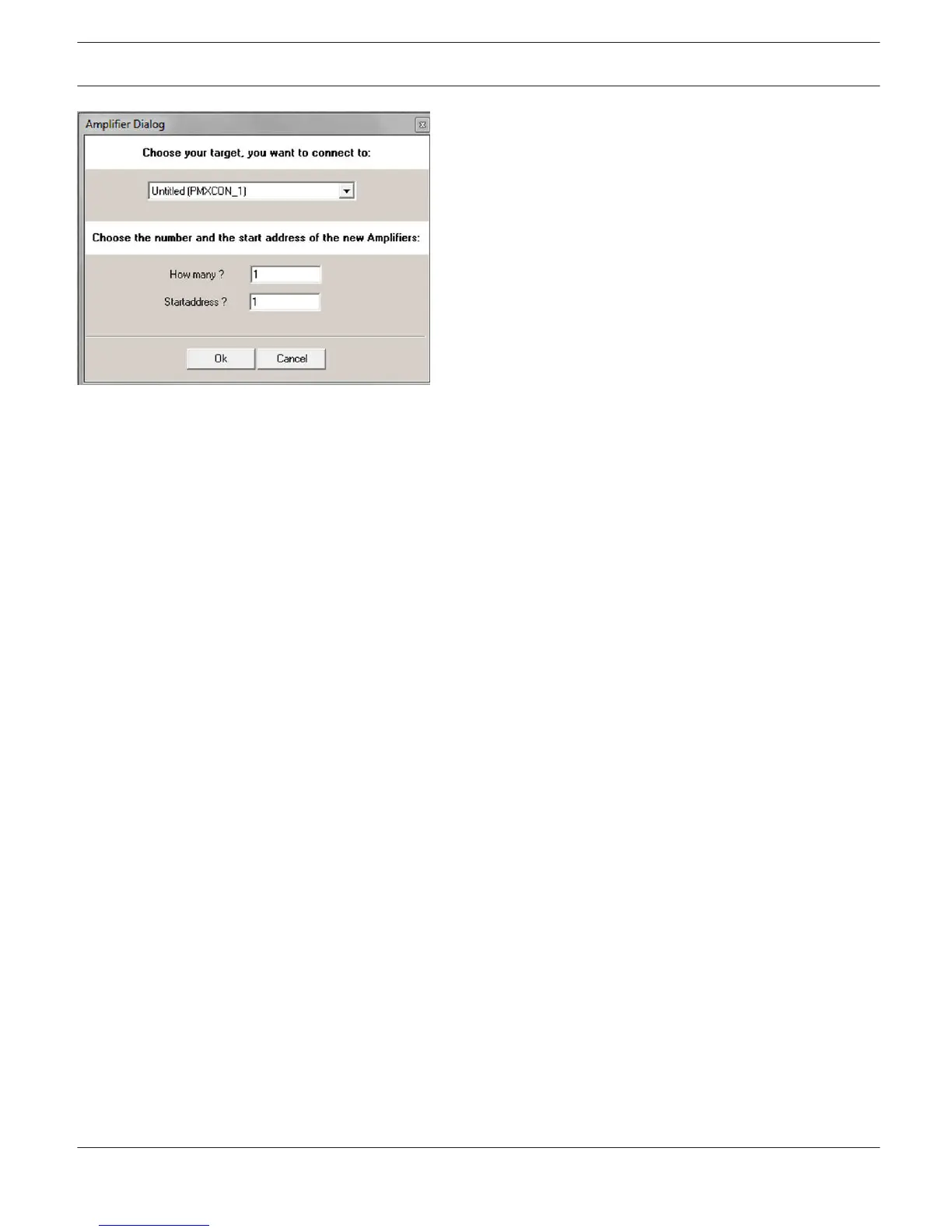

Select the PMX-4CR12 the amplifier is to be connected to. A maximum of 50 amplifiers is allowed per controller and a
maximum of 200 amplifiers is allowed in a network.
Enter the required number of devices and select a communication interface. Click on the OK button to accept these
settings. The specified number of devices will be created and displayed in the worksheet. Selected devices can be
dragged around and repositioned at will. To select a device either click and drag the mouse to draw a rectangle around
it or hold down the 'ctrl' key and click on the device. In either case a successfully selected device is shown with a red
border around it.
Double clicking on a device icon opens the configuration dialog window. Double clicking on a device for the first time
will open the General dialog box. Here, you can specify initial settings that are necessary for further configuration and
communication. Additional configuration windows can be navigated to by clicking on the icons at the top of the
window. However, as a basic rule, IRIS-Net will remember which window was used last and reopen to this window next
time you double click on the device icon.
IRIS-Net
PROMATRIX 6000 | en 907
Bosch Security Systems B.V. User Manual 2017.05 | 3.20 | F.01U.119.956
