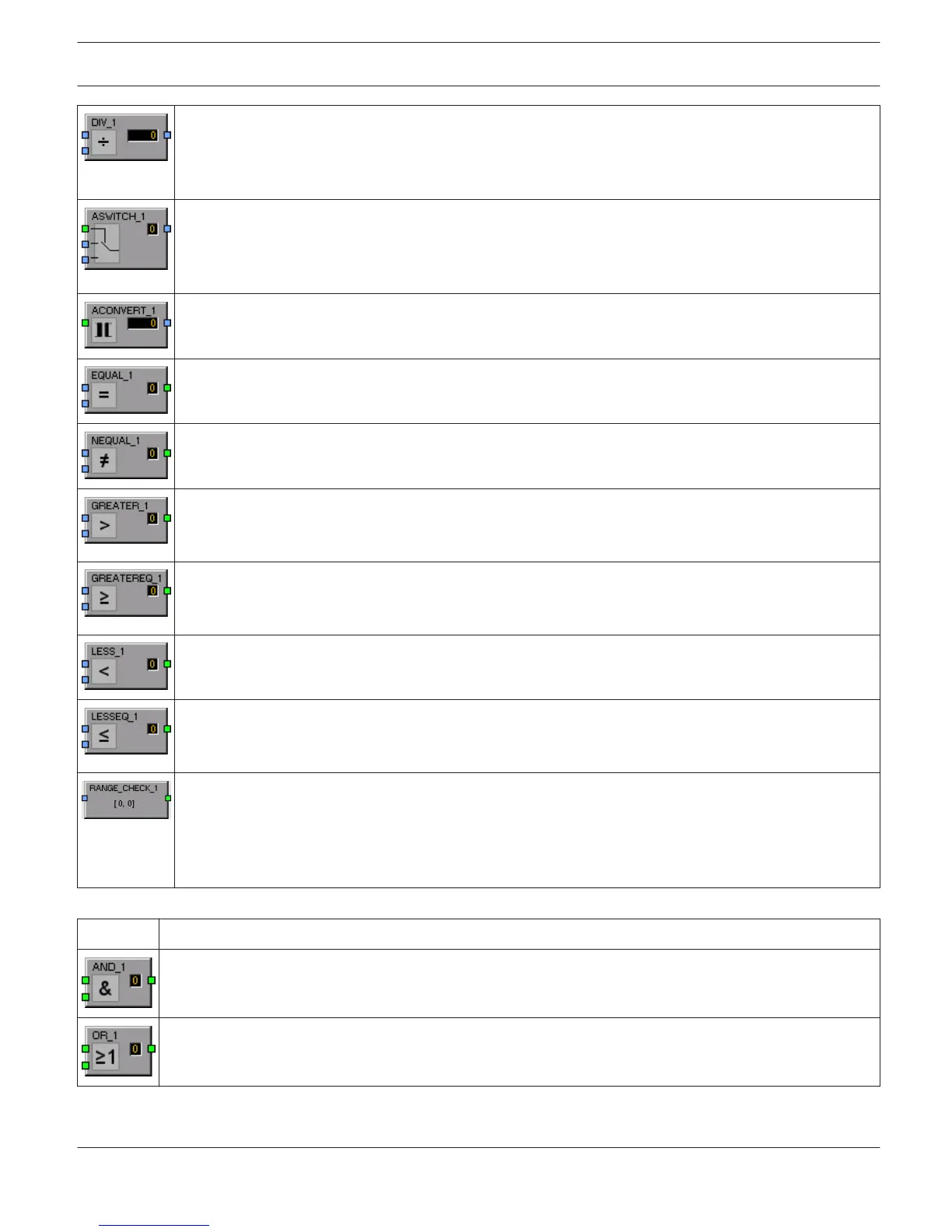

The Division block divides the rational number of the upper input by the rational number of the lower
input.
CAUTION: If the rational number "0" is present at the lower input, the rational number "0" is always
output, independent of the upper input's value.
The Switch block switches the rational number at the center or lower input through, depending on the
Boolean value at the upper input. If the Boolean value at the upper input is false, the value of the
center input appears at the output. If the Boolean value at the upper input is true, the value of the
lower input appears at the output.
The Convert block converts a Boolean value to a rational number. The Boolean value 0 is converted to
the rational number 0.0, the Boolean value 1 is converted to the rational number 1.0.
The Equal block compares the rational numbers at the inputs. The Boolean value at the output is only
true when identical numbers are present at the inputs.
The Not Equal block compares the rational numbers at the inputs. The Boolean value at the output is
only true when the numbers that are present at the inputs differ from each other.
The Greater block compares the rational numbers at the inputs. The Boolean value at the output is only
true when the rational number of the upper input is greater than the rational number of the lower
input.
The Greater Or Equal block compares the rational numbers at the inputs. The Boolean value at the
output is only true when the rational number of the upper input is greater or equal than the rational
number of the lower input.
The Less block compares the rational numbers at the inputs. The Boolean value at the output is only
true when the rational number of the upper input is lower than the rational number of the lower input.
The Less Or Equal block compares the rational numbers at the inputs. The Boolean value at the output
is only true when the rational number of the upper input is lower or equal than the rational number of
the lower input.
The Range Check block allows the range check of a rational number. The Boolean value at the output is
only true when the rational number at the input is greater or equal than the property
TE.RANGE_CHECK_1.range.min and lower or equal than the property TE.RANGE_CHECK_1.range.max
– range.max: Enter the upper bound of the range to be checked
– range.min: Enter the lower bound of the range to be checked
LOGIC OPERATIONS
Element
Description
The AND block provides 2 inputs for Boolean values. The Boolean value at the output is only true when all
(wired) inputs are true.
The OR block provides 2 inputs for Boolean values. The Boolean value at the output is only true when at
least one (wired) input is true.
