Setting Up ¡ 2-5
Installing a ribbon cartridge

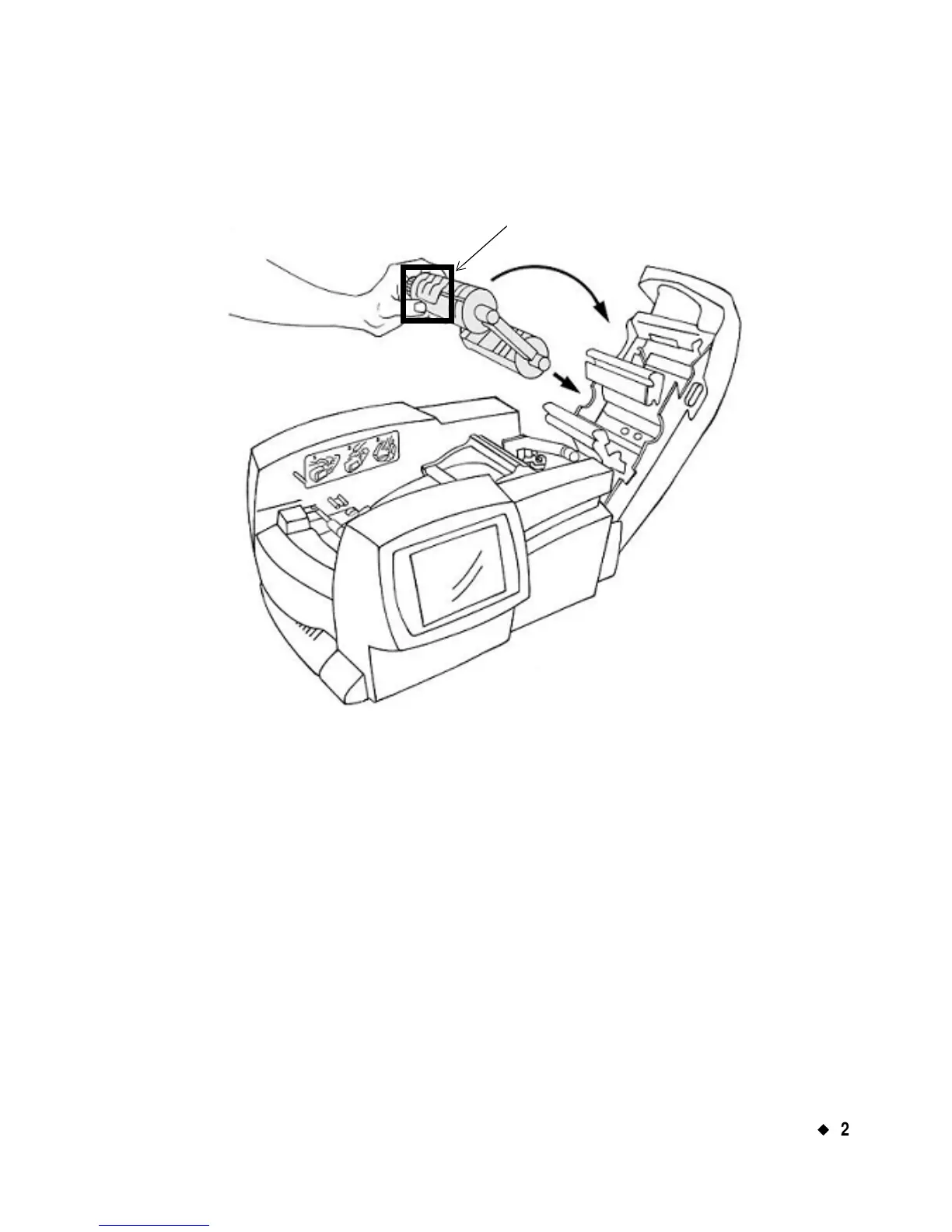

Figure 2-3. Installing a ribbon cartridge.
Step 1: Hold the ribbon cartridge with the open part of the tab on top and facing
you.
Step 2: Place the lower cylinder of the cartridge (with the unused ribbon), in the
lower slot in the cover, as shown.
Step 3: Position the upper cylinder of the cartridge in the upper slot and push
gently until the tab clicks in place.
Your ribbon is now installed.
The ribbon cartridge tab
