Brady label maker User Manual

Setting Up ¡ 2-7
Installing a tape cartridge
There are three simple steps to installing a tape cartridge: adjusting the
tape cartridge receptacle to accommodate the width of the tape,
dropping in the cartridge, and feeding the tape through the advance
rollers.
Adjusting the printer tape receptacle
Since the printer accepts tape widths from .5 inches (25 mm) to 4 inches
(102 mm), you must adjust the tape cartridge receptacle inside the
printer for the cartridge you are installing.
Figure 2-5 shows the tape width guide inside the printer, and Figure 2-6
shows you where that guide is located inside your printer.

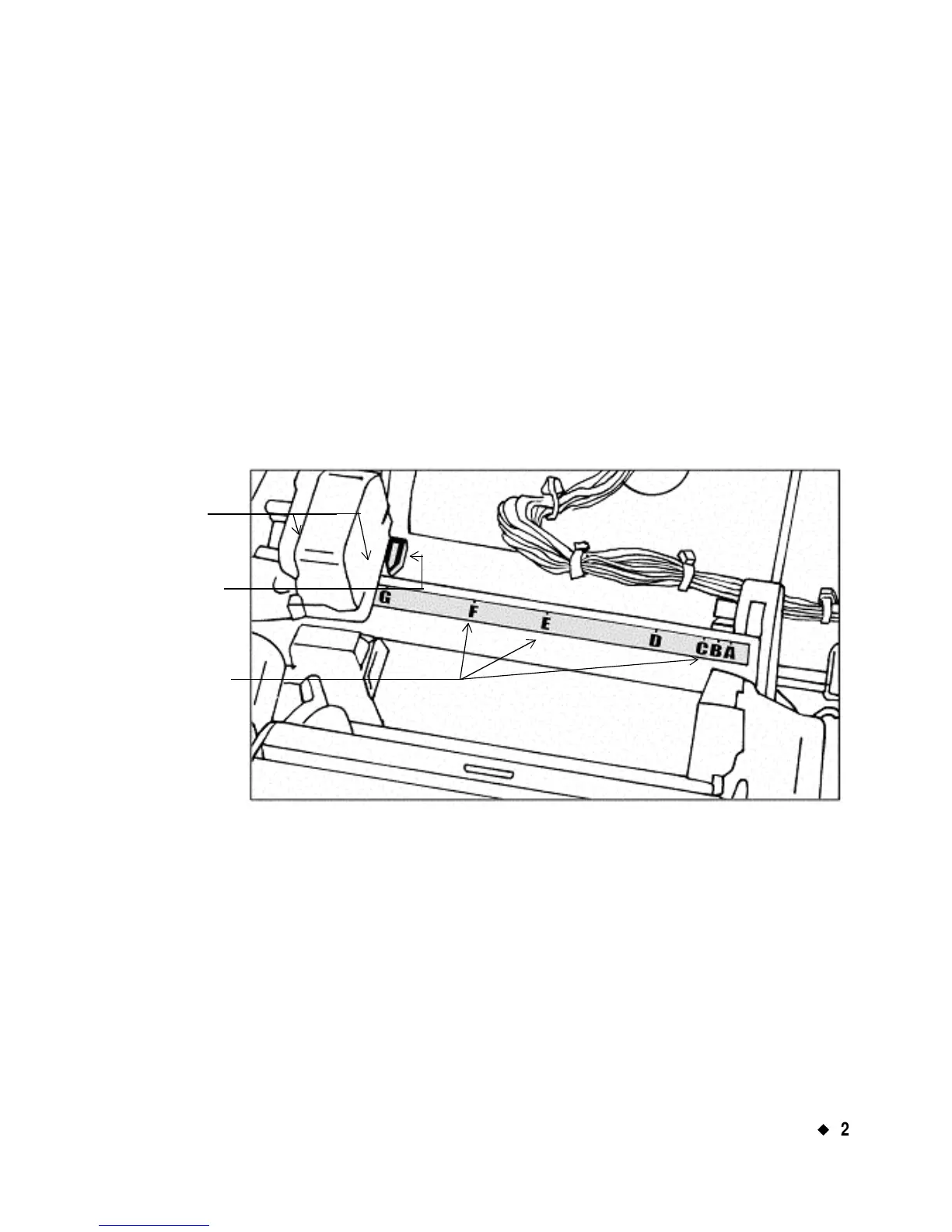

Figure 2-5. Tape width guide
Step 1: Note the width code shown on the tape cartridge to be installed.
Step 2: Grasp the size-adjusting lever between thumb and finger and move the
arrow to the appropriate width code on the tape width guide.
Size-adjusting
lever. Grasp
between thumb
and finger.
Move arrow to
width code.
Match these width
codes to the code
on the tape
cartridge.
