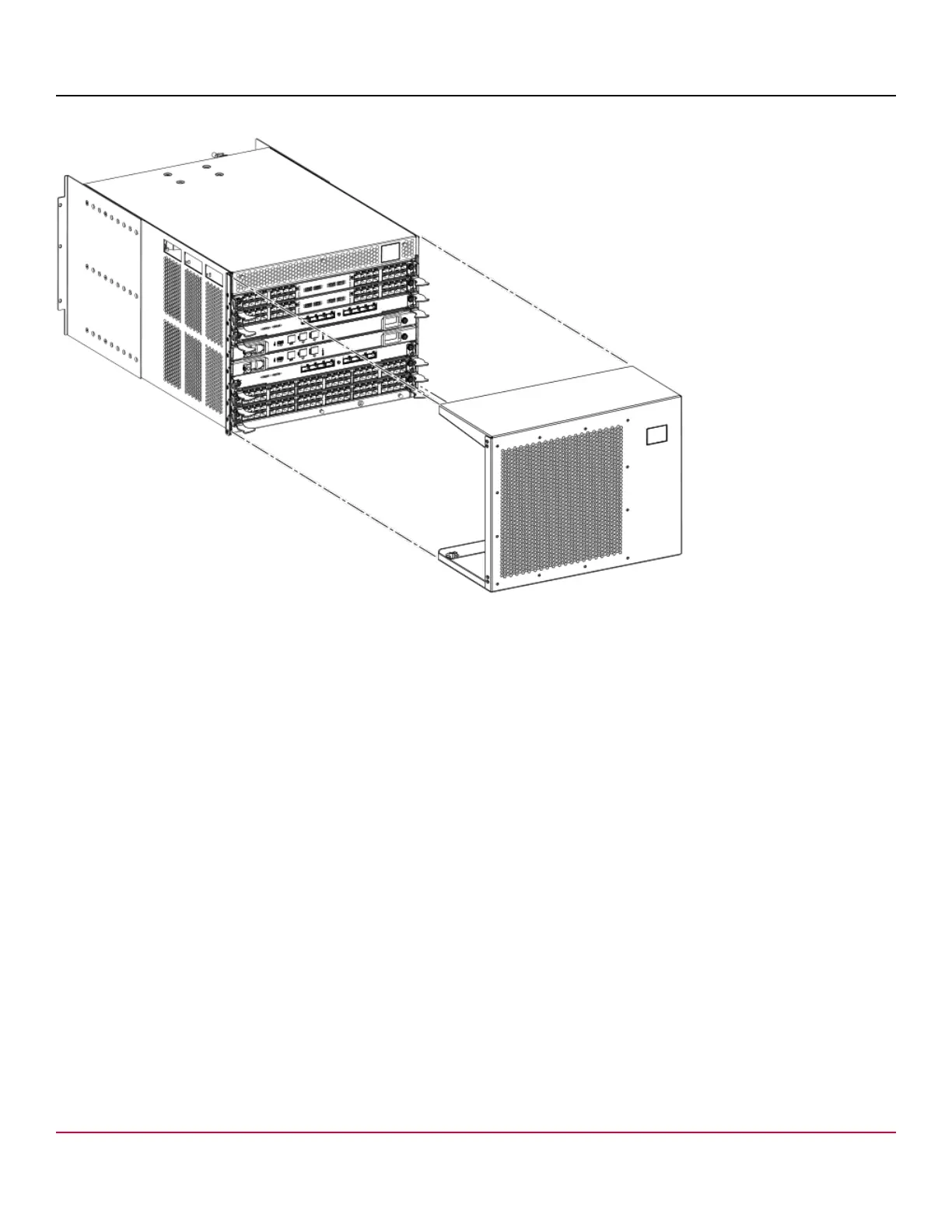

Figure 53: Removal and replacement of the chassis door
Replacing a chassis door
Complete the following steps to reinstall the door.
1. Align the holes in the door with the ball studs on the chassis.
2. Push the door into place. It will snap onto the studs.
Vertical cable management fingers removal and replacement
The Brocade DCX 8510-4 comes equipped with two vertical cable management finger assemblies. It can continue to
operate during the replacement of the cable management fingers. Due to the horizontal orientation of the blades in the
Brocade DCX 8510-4, the finger assemblies are attached to the uprights of the mounting rack.
Time and items required
The replacement procedure for the cable management fingers takes less than five minutes. A #1 Phillips screwdriver is
required.
