53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide

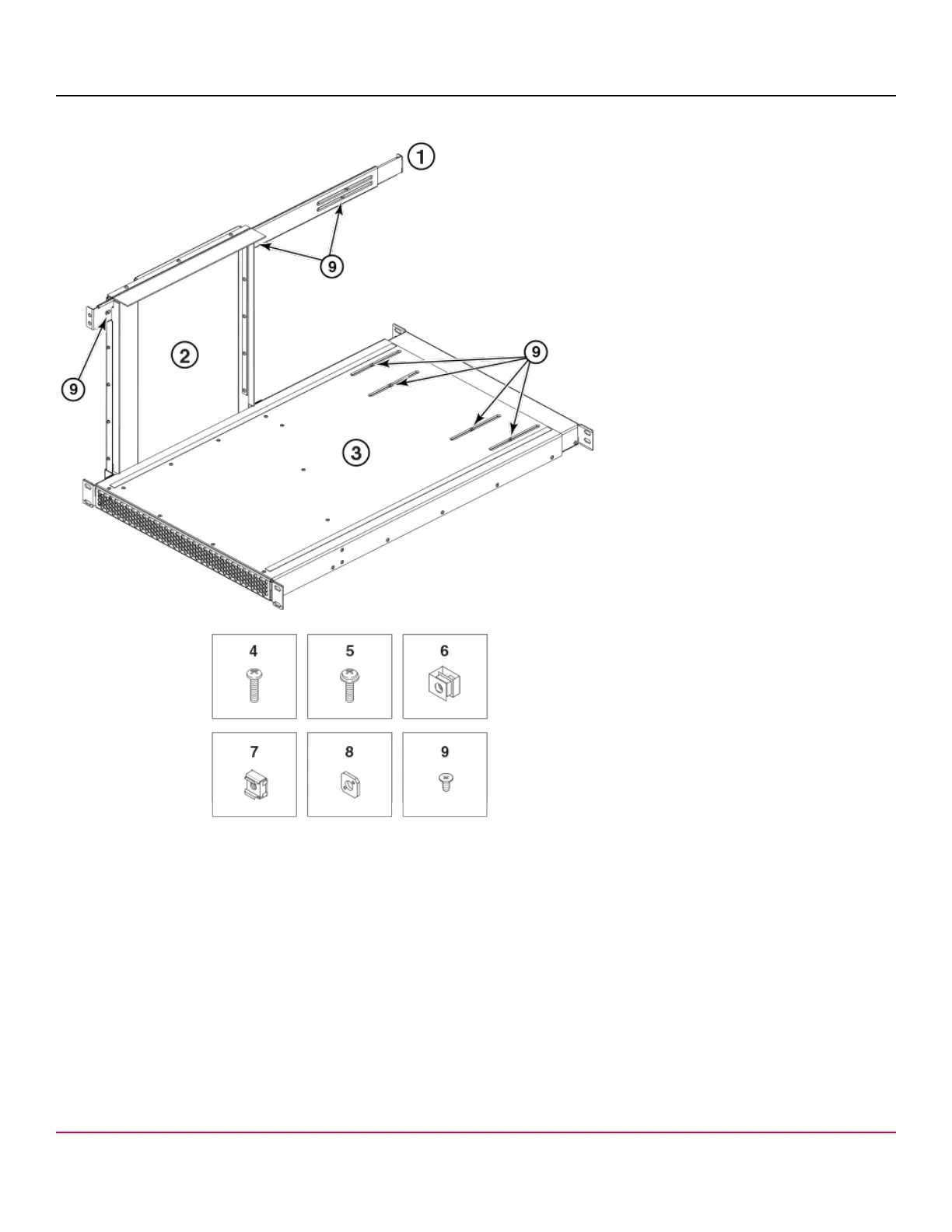

Figure 18: Airflow Diversion and Port-Side Exhaust Kit assembly for 27-31 in. (68.58 to 78.74 cm) racks
1. Top rail
2. Duct
3. Shelf
4. 10-32 x .5 in. (1.27 cm) Phillips screw with blue Loctite on threads
5. 10-32 x .63 in.(1.60 cm) Phillips screw with square cone washer for racks that have rails with round holes
6. 10-32 clip nut for racks that have rails with round holes
7. 10-32 retainer nut for racks that have rails with square holes
8. Alignment washer for racks that have rails with square holes
9. 6-32 x .25 in. (.635 cm) Phillips screw
Torque requirements
Use the following torque settings when tightening screws that secure the rack mount kit and device to the equipment rack.
