53-1002177-19 Hardware Installation Guide Brocade DCX 8510-4 Backbone Hardware Installation Guide
NOTE
The CR16-4 blade is compatible only with the Brocade DCX 8510-4.
NOTE
The device continues to operate while a core switch blade is being replaced.
Complete the following steps to remove the core switch blade.
1. Remove the chassis door.
2. Unscrew the two thumbscrews from the ejectors on the blade using the Phillips screwdriver. Unscrew the left
thumbscrew until it pops out. This initiates a hot-swap request.
3. Label and then disconnect cables from the faulty core switch blade.
4. Open the ejectors by rotating them toward the center of the blade face. Pull the blade out of the chassis using the
ejectors.

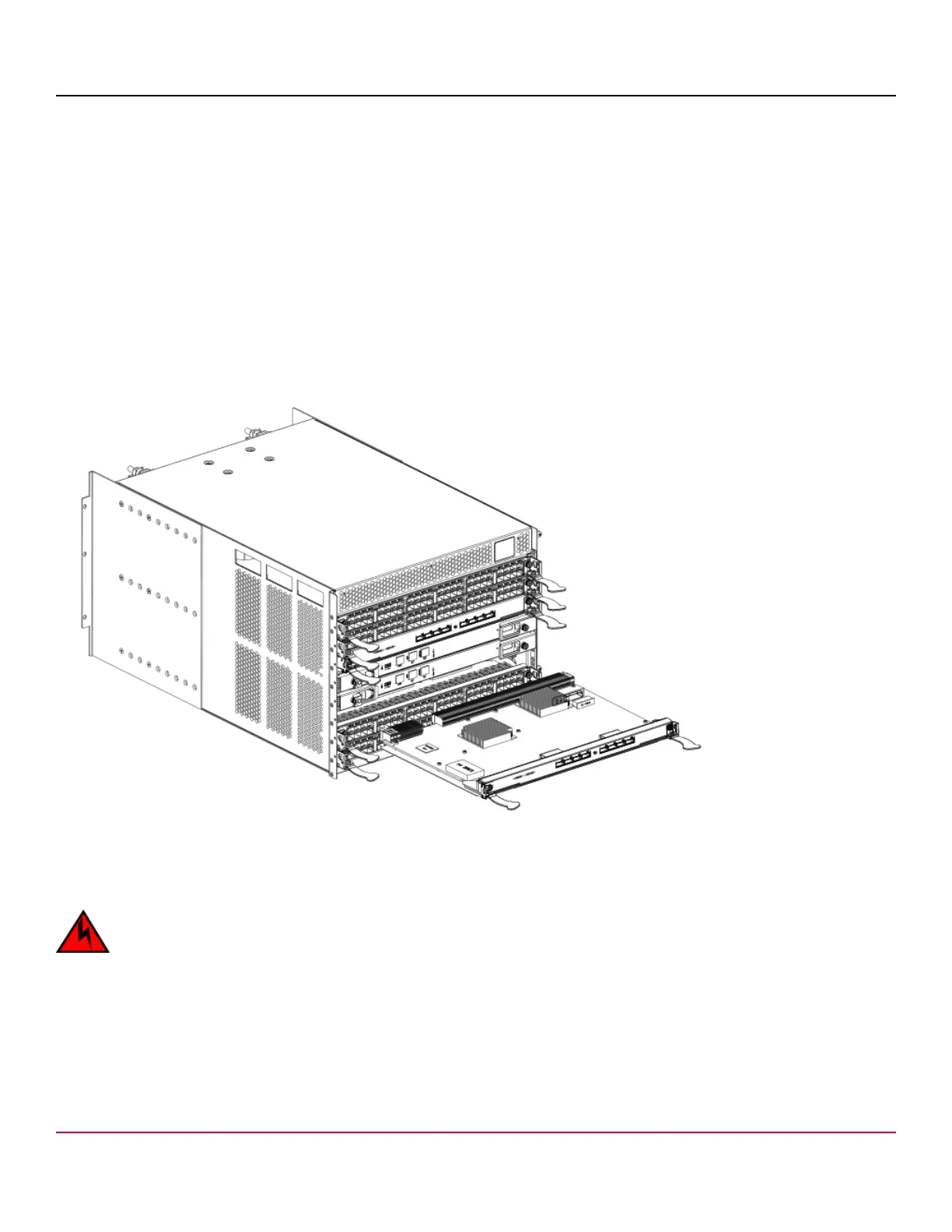

Figure 58: Removal and replacement of the core switch blade (CR16-4)
Replacing a core switch blade (CR16-x)
Follow electrostatic discharge (ESD) precautions when replacing a blade. Wear a wrist grounding strap connected to
chassis ground (if the device is plugged in) or a bench ground.
DANGER
For safety reasons, the ESD wrist strap should contain a series 1 megaohm resistor.
NOTE
The CR16-4 blade is compatible only with the Brocade DCX 8510-4.
NOTE
The device continues to operate while a core switch blade is being replaced.
53-1002177-19
121
