Broadcom Brocade DCX 8510-4 Backbone User Manual

53-1002177-19 Hardware Installation Guide Brocade DCX 8510-4 Backbone Hardware Installation Guide
ID: BRD0000CA
Part Num: SLKWRM0000X4S
WWN Unit: 2
Header Version: 2
Power Consume Factor: -1
Factory Part Num: 60-1000888-05
Factory Serial Num: ANQ0417F03P
Manufacture: Day: 7 Month: 6 Year: 2010
Update: Day: 29 Month: 3 Year: 2011
Time Alive: 229 days
Time Awake: 0 days
Chassis Factory Serial Num: ANP2523F00E
DCX-4_130:admin>
Determining the status of a port, application, or extension blade
Use the following procedure to determine the status of a blade.
1. Check the LEDs on the blade.
The LED patterns may temporarily change during POST and other diagnostic tests. For information about how to
interpret the LED patterns, refer to the table following the blade descriptions.
2. Check the blade status by entering slotShow.
FC8-32E port blade LEDs

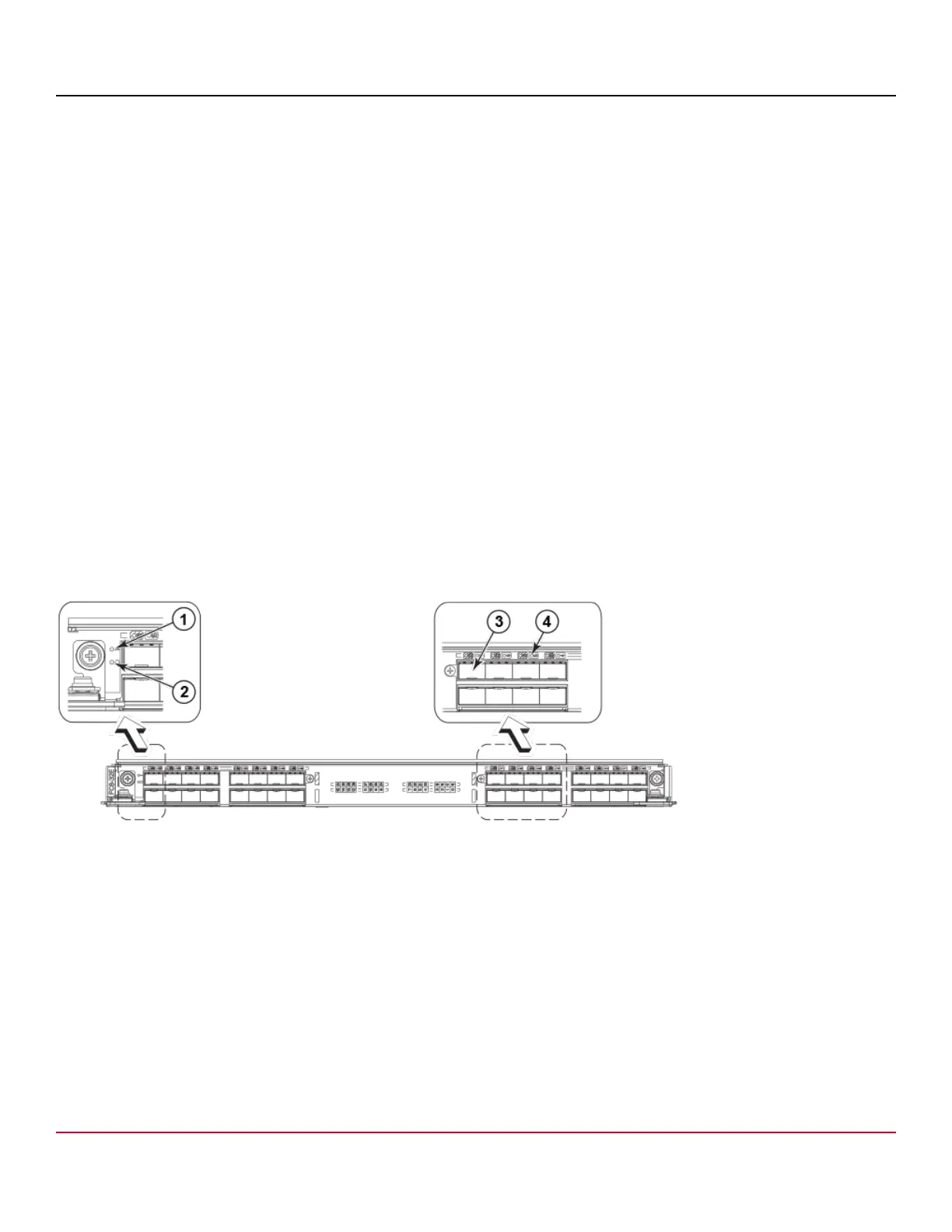

Figure 40: FC8-32E port blade LEDs
1. Blade status LED
2. Blade power LED
3. Fibre Channel port
4. Port status LED
53-1002177-19
85
Broadcom
