53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide
•
The QSFP transceivers are used only with the FC16-64 port blades and core switch blades. Refer to "Qualified
transceivers for the FC16-64 and CR16-x blades" in this publication for a list of QSFPs qualified for these blades.
•
For QSFPs with separate transceivers and optical cables, it is recommended that the cable be either removed from or
inserted into the QSFP while the transceiver is out of the blade due to the port density.
•
The pull tabs on QSFPs are not designed to be bent. Doing so may result in damage to the pull tab.
Qualified transceivers for the FC16-64 and CR16-x blades
The following table shows the qualified transceivers for the FC16-64 port blade and the CR16-4/8 core blades.
Table 22: Qualified transceivers for FC16-64 port blade and the CR16-x core blades
Brocade part number Part type Cable length Port speeds Supported blades
57-1000310-01 QSFP transceiver
with integrated 3 m
optical cable
Supports 2 km 16 Gbps CR16-4/8
57-1000294-02 QSFP transceiver 100 m OM4 Auto-negotiable 4-, 8-,
and 16-Gbps
FC16-64 and CR16-4/8
57-1000267-01 QSFP transceiver 100 m OM4 Only fixed 16-Gbps CR16-4/8
57-0000090-01 QSFP transceiver 50 m OM3 Only fixed 16-Gbps CR16-4/8
Removing a QSFP transceiver and cable
QSFP transceivers are of three types:
•
Transceiver with separate cable and a bail-type latch.

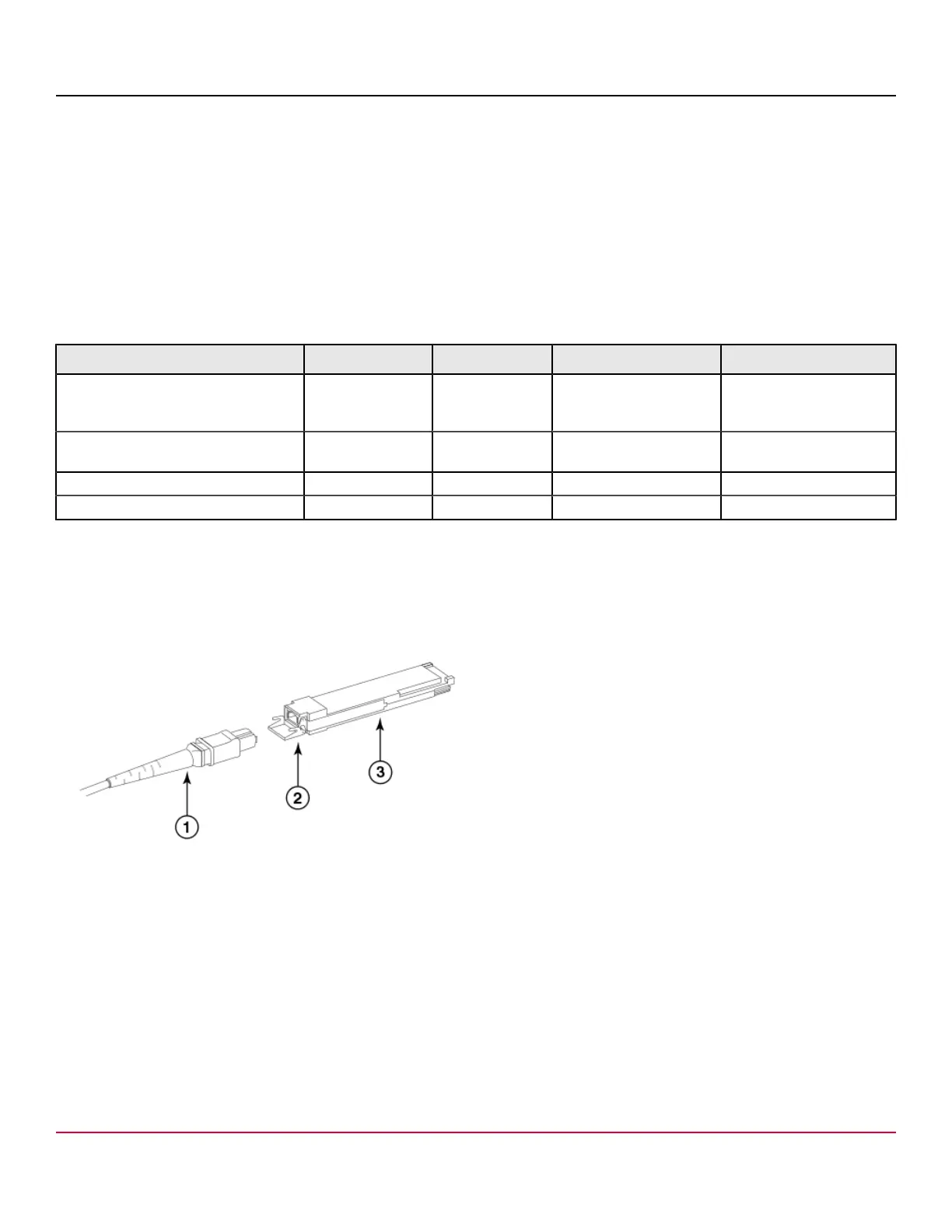

Figure 68: QSFP transceiver (bail open)
1. MTP cable
2. Bail
3. Transceiver
•
Transceiver with integrated cable and pull-tab.
53-1002177-19
138
