Broadcom Brocade DCX 8510-4 Backbone User Manual

53-1002177-19 Hardware Installation Guide Brocade DCX 8510-4 Backbone Hardware Installation Guide
Removing a cable management finger assembly
Complete the following steps to remove the cable management finger assembly.
1. Remove the chassis door.
2. Remove the cables from the cable management finger assembly and rearrange the cables around the assembly.
3. Unscrew and save the three (3) screws holding the finger assembly to the rack upright. Support the assembly to
prevent it from falling.
4. Remove the cable management finger assembly.
5. If necessary, repeat steps 1 through 4 for the other finger assembly.

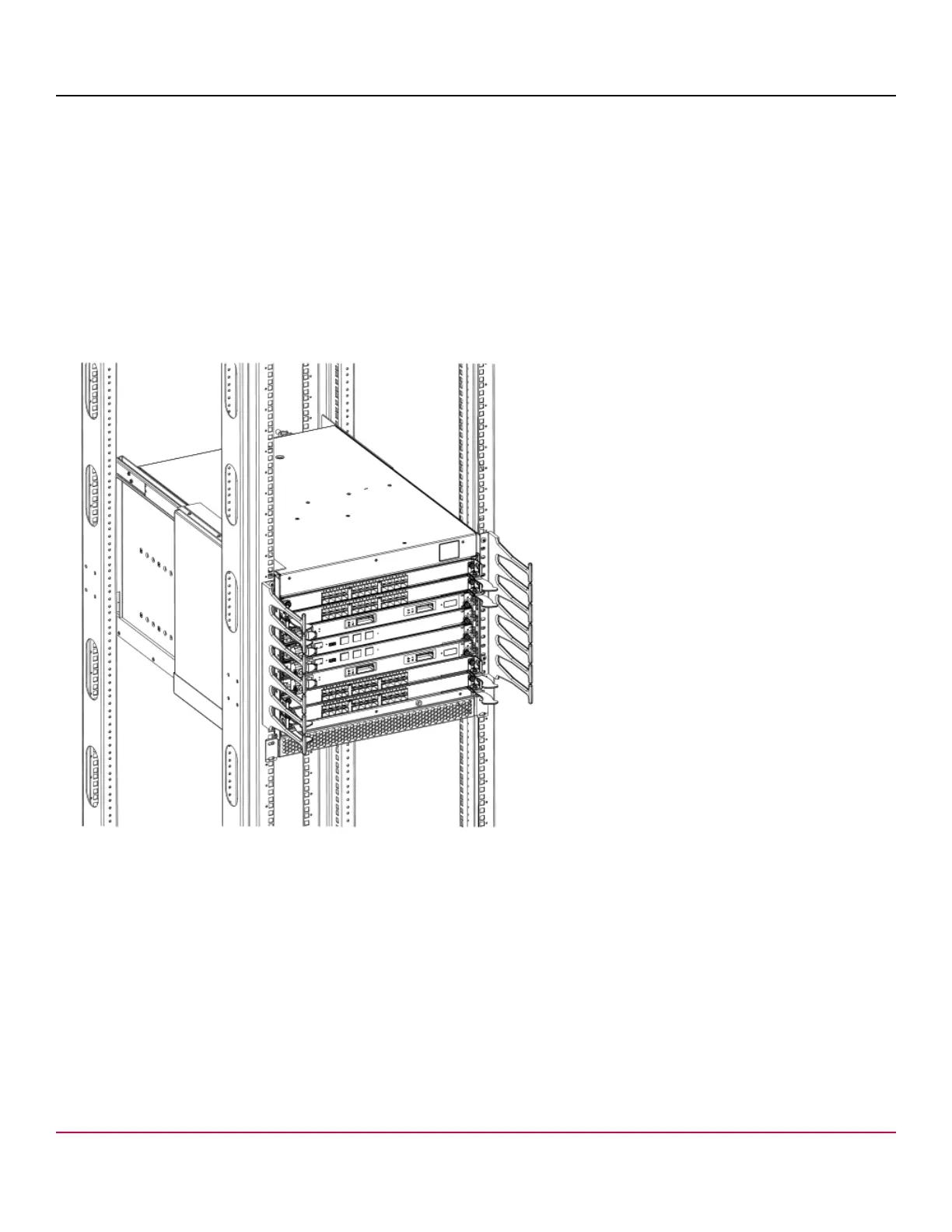

Figure 54: Removal and replacement of the vertical cable management finger assemblies
Replacing a cable management finger assembly
Complete the following steps to replace the cable management finger assembly.
1. Position and tighten the three (3) screws to secure the vertical cable management finger assembly to the rack upright.
2. Arrange the cables along the cable management finger assembly.
3. If necessary, repeat steps 1 and 2 for the other cable management finger assembly.
4. Replace the chassis door.
Port and application blade removal and replacement
This section describes how to remove and replace port and application blades. It does not cover the core (CR) blades or
the control processor (CP) blades.
53-1002177-19
101
