53-1002177-19 Hardware Installation Guide

Brocade DCX 8510-4 Backbone Hardware Installation Guide

Port side view of the device

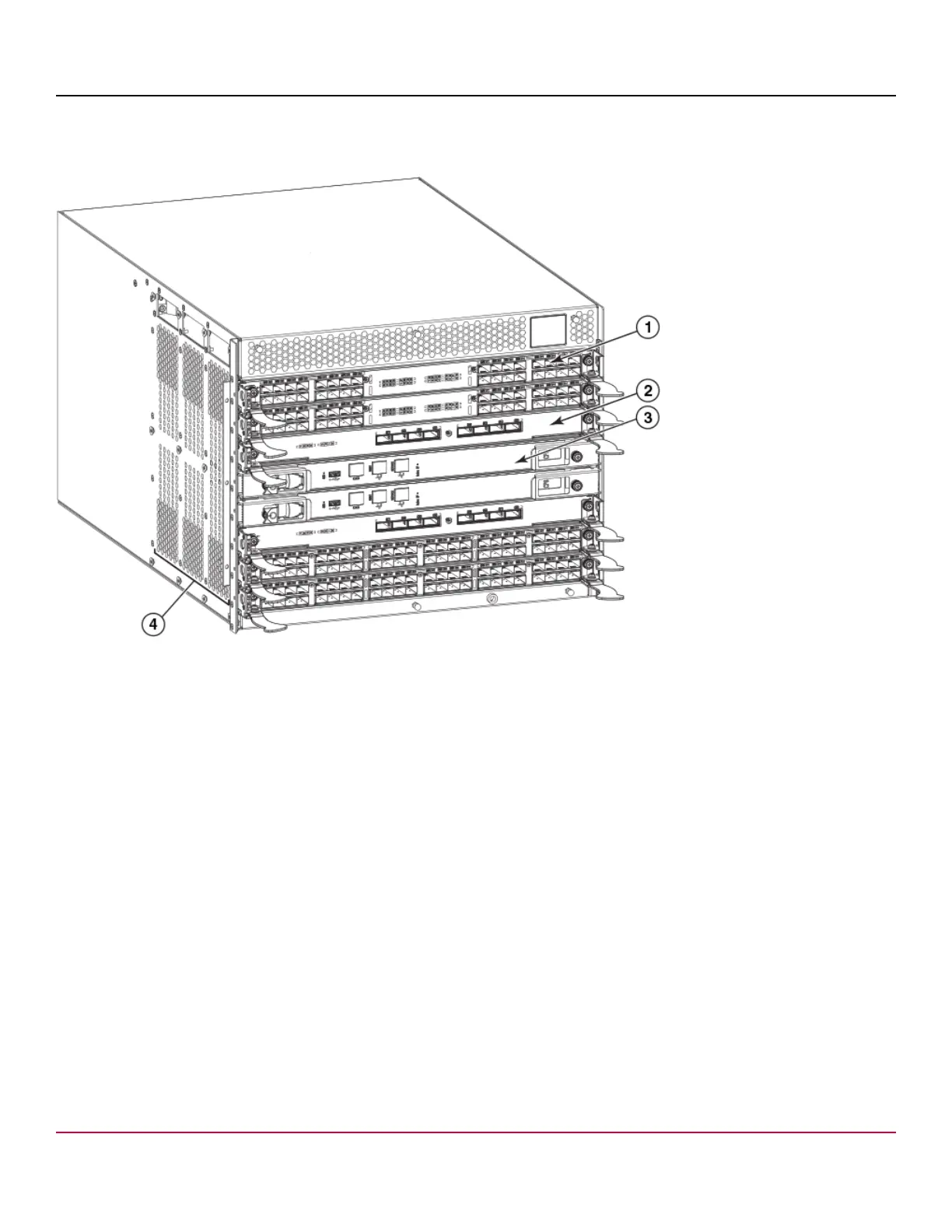

Figure 1: Port side view of the Brocade DCX 8510-4 (sample configuration)

1. Port blade (FC16-32)

2. Core switch blade (CR16-4)

3. Control processor blade (CP8)

4. Exhaust vent

NOTE

Airflow is from the nonport side to the port side and out the exhaust vents. If you use the Port Side Exhaust Kit,

the air vents are all on the port side of the chassis.

53-1002177-19
