Port Numbering Templates
CR16-4 core blade port numbering

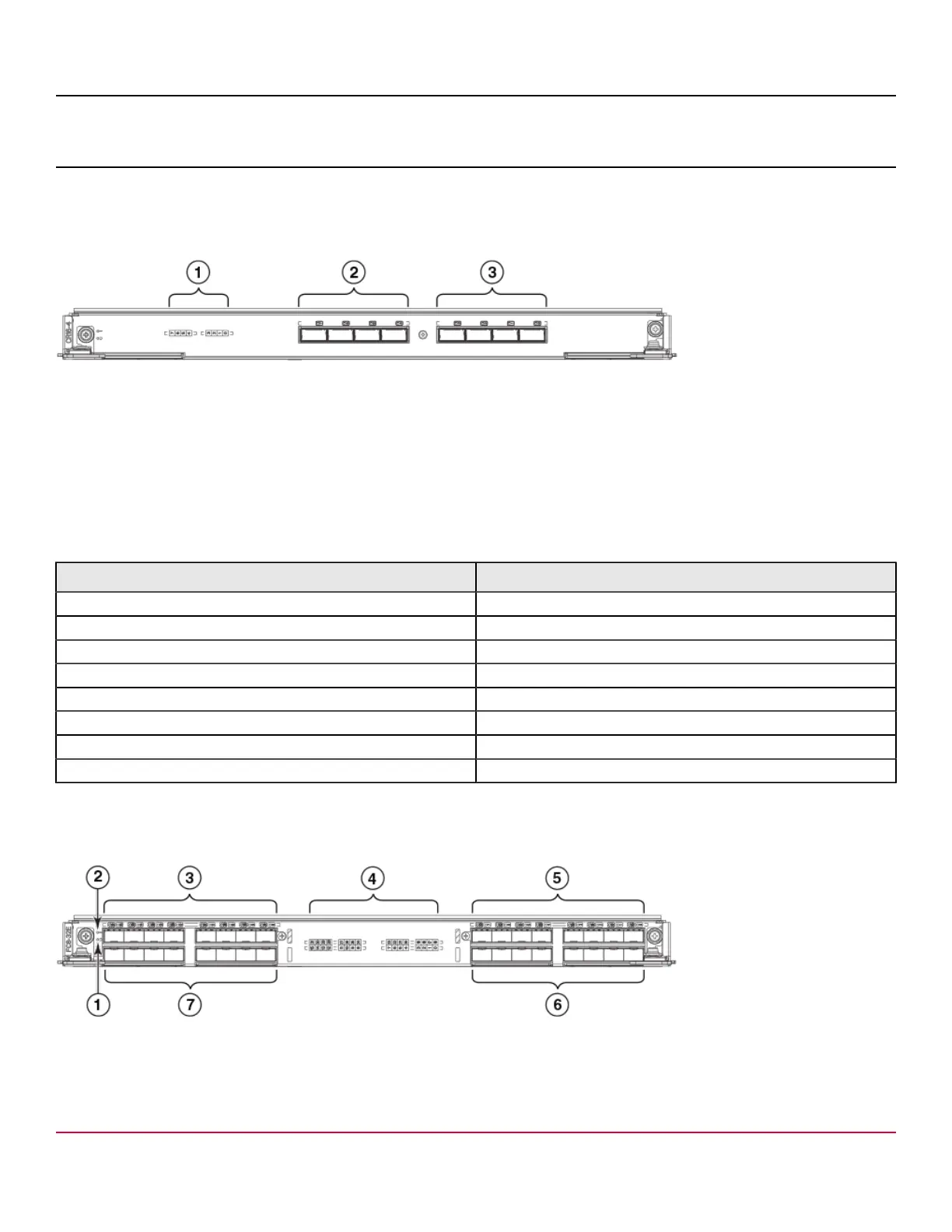

Figure 70: CR16-4 core blade port numbering
1. Port map
2. QSFP ports 4-7 (right to left)
3. QSFP ports 0-3 (right to left)
The following table shows the mappings from the numbered ports on the face of the core blade to the port mappings as
shown by the slotShow command. Each external port maps to four actual ports. The CR16-4 core blade has external
ports 0 through 7 only.
Table 25: External port to slotShow port mapping for core blades
External port number slotShow port numbers
0 0-3
1 4-7
2 8-11
3 12-15
4 16-19
5 20-23
6 24-27
7 28-31
FC8-32E port blade port numbering
Figure 71: FC8-32E port blade port numbering
1. Blade power LED
2. Blade status LED
3. FC ports 24-31 (right to left)
53-1002177-19
156
