53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide
FC16-32 port blade LEDs

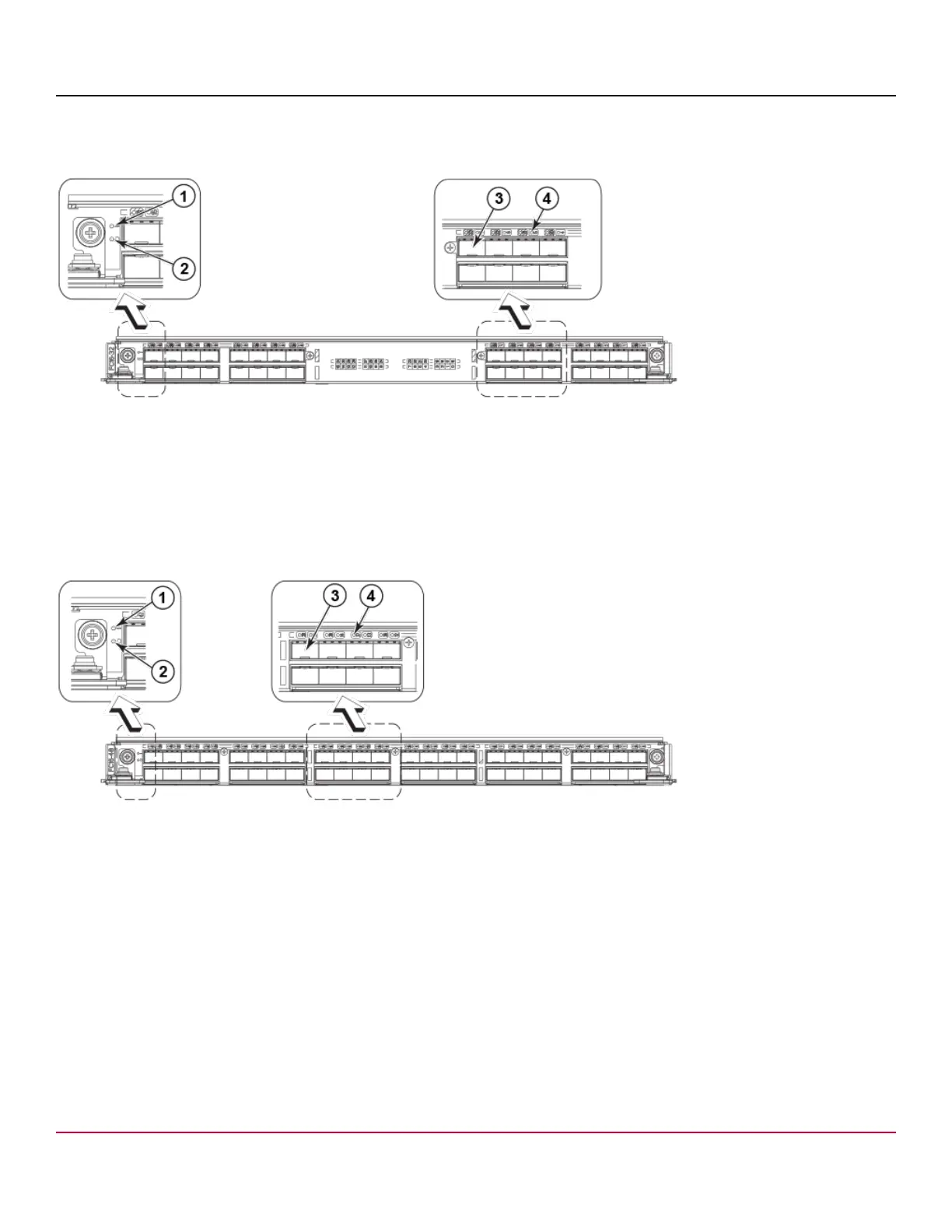

Figure 43: FC16-32 port blade LEDs
1. Blade status LED
2. Blade power LED
3. Fibre Channel port
4. Port status LED
FC16-48 port blade LEDs
Figure 44: FC16-48 port blade LEDs
1. Blade status LED
2. Blade power LED
3. Fibre Channel port
4. Port status LED
53-1002177-19
87
