53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide
4. Enter the haDisable command. This is required before physically removing and replacing a CP blade.
5. Power off the blade by sliding the slider switch in the left ejector to the right to the off position. Do not eject the blade
until the power LED is off and you have completed the next two steps.
6. Disconnect all cables from the faulty (standby) CP.
7. Unscrew the thumbscrew from both ejectors using the Phillips screwdriver.
8. Lever open both ejector handles simultaneously to approximately 45 degrees and pull the CP blade out of the chassis.

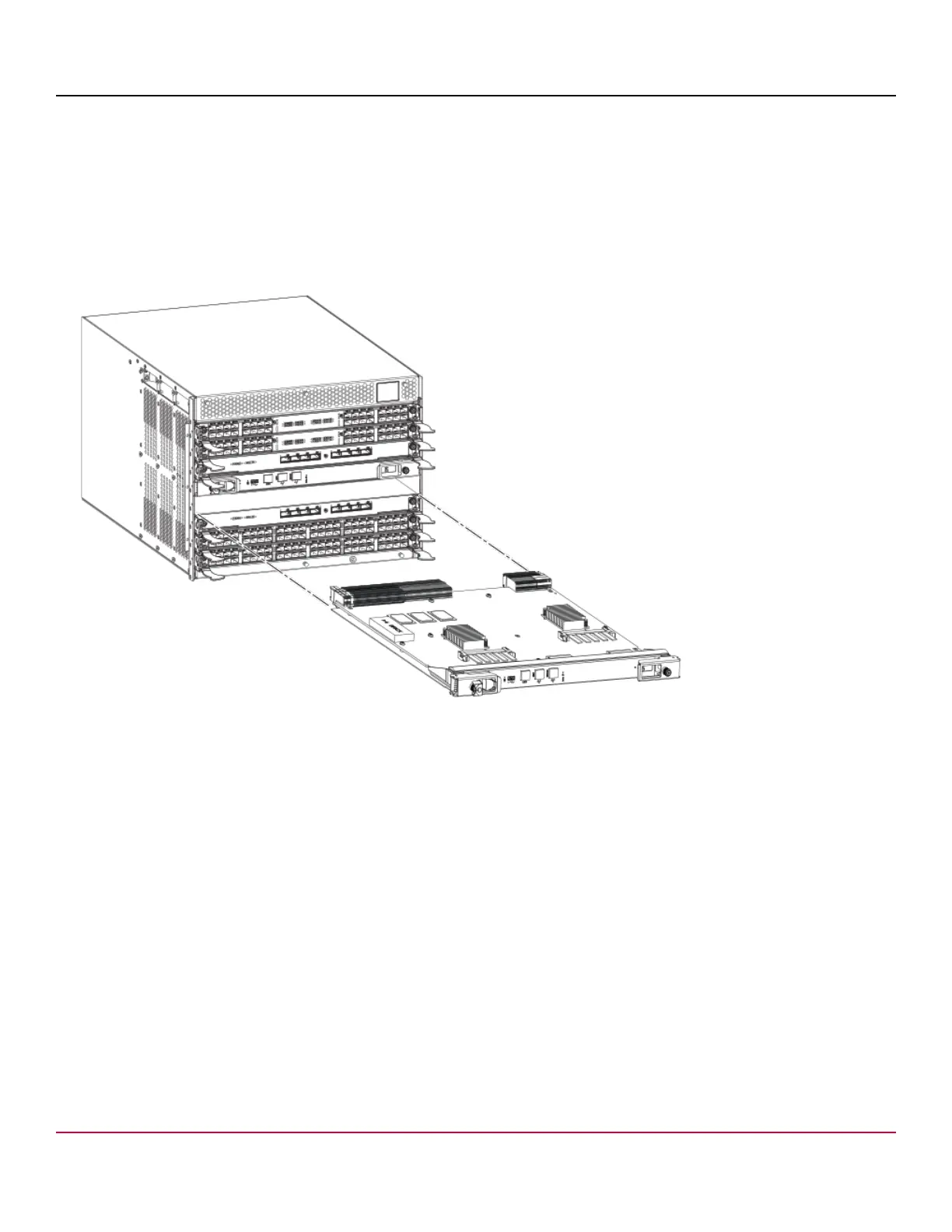

Figure 57: Removal and replacement of the control processor blade (CP8)
Replacing a control processor blade (CP8)
NOTE
Read all of the instructions for replacing the CP blade before beginning the procedure. Use the same version
of Fabric OS on both CP blades. Using different versions is not supported and may cause malfunctioning. If the
replacement CP blade has a different version of Fabric OS, bring both blades to the same firmware version.
Once you have installed the replacement CP blade, determine the version of firmware on the replacement CP
blade and upgrade it if necessary.
53-1002177-19
110
