53-1002177-19 Hardware Installation Guide
Brocade DCX 8510-4 Backbone Hardware Installation Guide
FC16-32 port blade port numbering

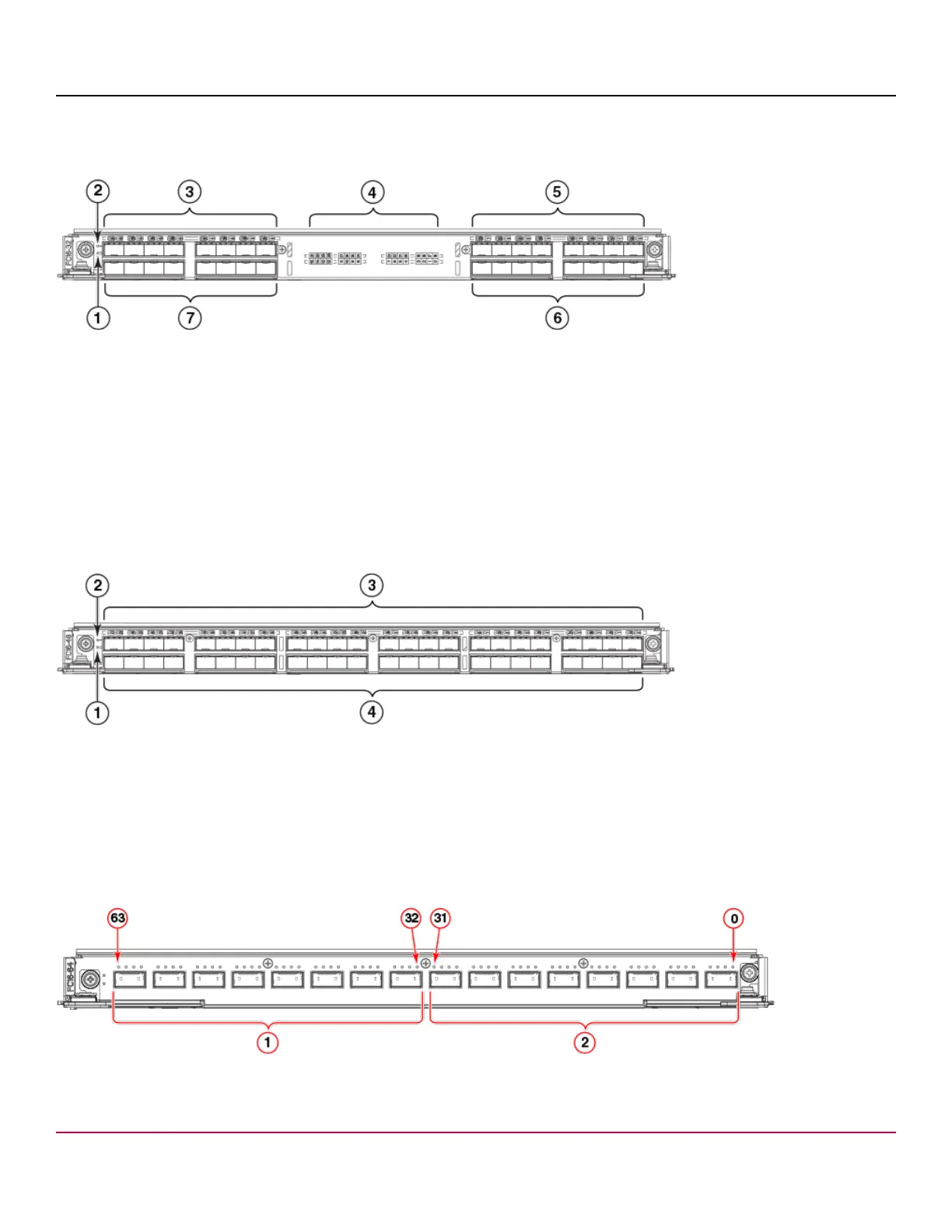

Figure 74: FC16-32 port blade port numbering
1. Blade power LED
2. Blade status LED
3. FC ports 24-31 (right to left)
4. Port and trunking group map
5. FC ports 16-23 (right to left)
6. FC ports 0-7 (right to left)
7. FC ports 8-15 (right to left)
FC16-48 port blade port numbering
Figure 75: FC16-48 port blade port numbering
1. Blade power LED
2. Blade status LED
3. FC ports 24-47 (right to left)
4. FC ports 0-23 (right to left)
FC16-64 port blade port numbering
Figure 76: FC16-64 port blade port numbering
1. QSFP ports 8-15; FC ports 32-63 (right to left)
