Brocade DCX 8510-4 Backbone Hardware Installation Guide

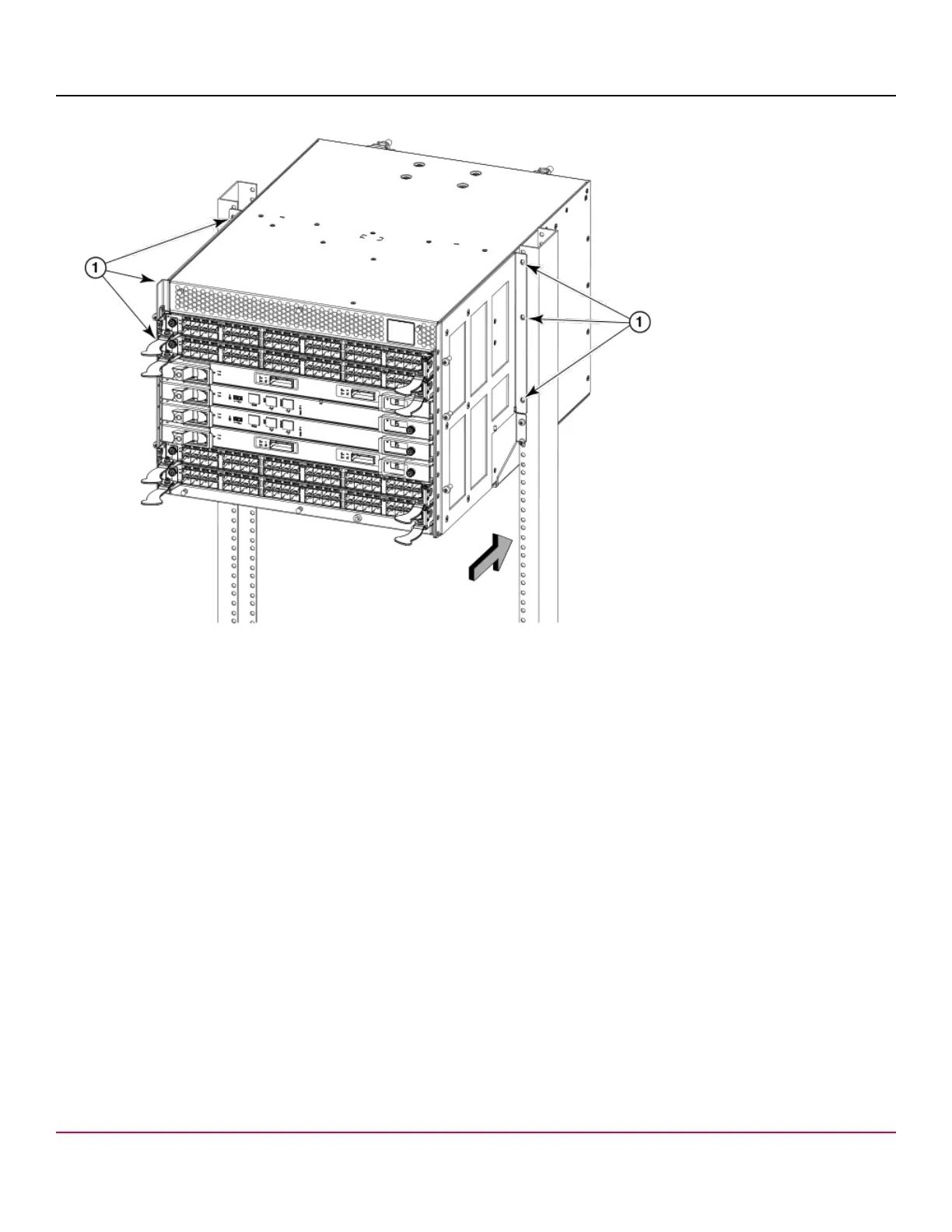

Figure 10: Device installed in mid-mount saddle
1. 10-32 screws with square-cone washers (6)
NOTE
For rails with round holes, use the clip nuts on the rack rails for securing 10-32 screws. For rails with square
holes, use the retainer nuts (refer to Figure 1). Also refer to Figure 3.
7. Reinstall the door. Refer to procedures for removing and replacing the device door in this guide.
Installing the 8U Chassis Airflow Diversion or Port-Side Exhaust Kit for
Four-Post Racks (XBR-DCX4S-0121 and XBR-DCX4S-0130)
Use the following instructions to install a modular device in a 19 in. (48.26 cm) Electronic Industries Association (EIA) rack
using the following Brocade rack mount kits:
•
XBR-DCX4S-0121 - Kit for rack rail-to-rail depth of 27 to 31 in. (68.58 to 78.74 cm).
•
XBR-DCX4S-0130 - Kit for rack rail-to-rail depth of 18 to 24 in. (45.72 to 60.96 cm).
These kits have a different function, depending on the device being installed in the rack and the airflow direction provided
by fans and power supplies installed in the device. For details, refer to the rack kit procedures in the Hardware Installation
Guide for your device.
These kits have a different function, depending on the device being installed in the rack and the airflow direction provided
by fans and power supplies installed in the device.
