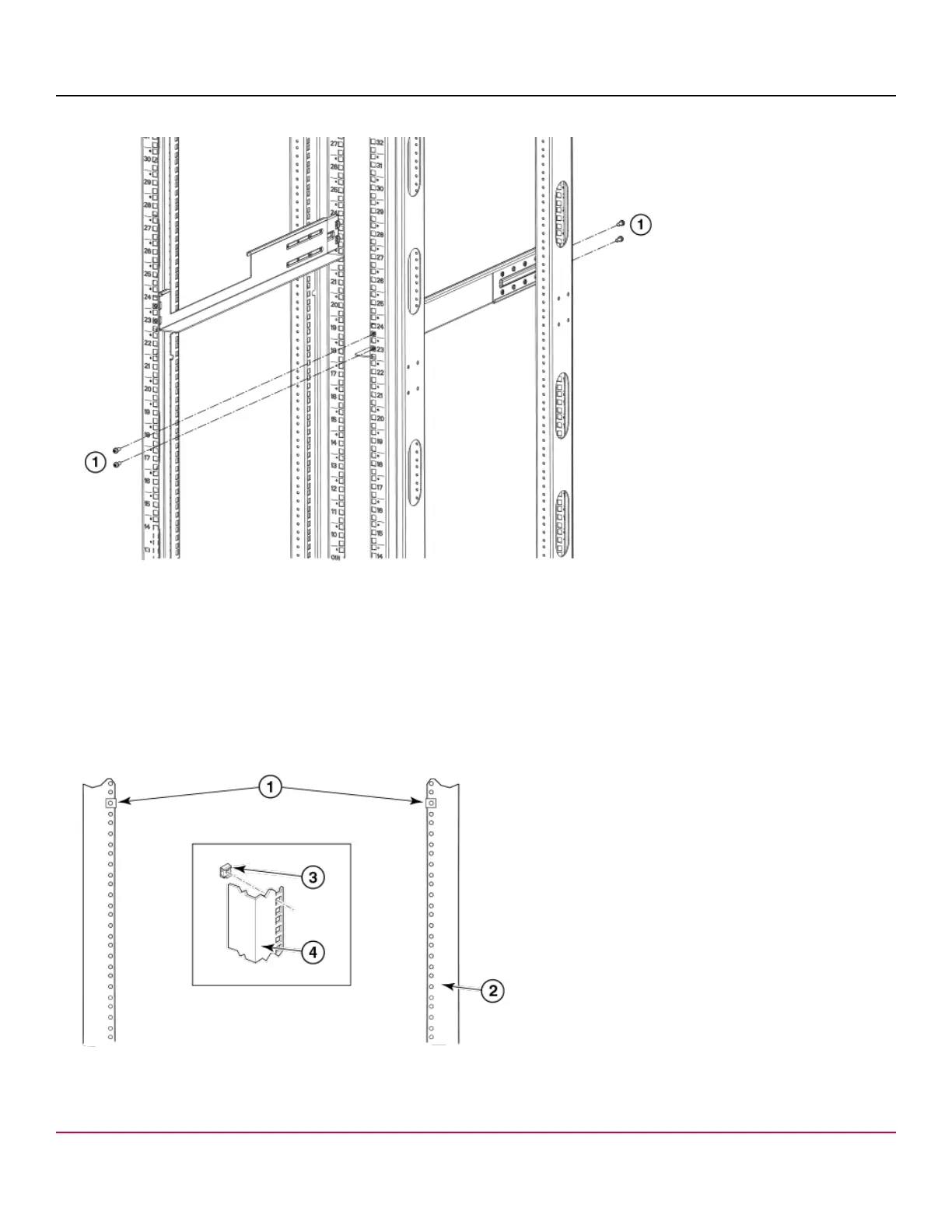

Figure 25: Device Rails Installed in Equipment Rack
1. 10-32 x .5 in. (1.27 cm) Phillips Screw (for square holes) or 10-32 x .63 in. (1.60 cm) Phillips Screw (for round
holes)
3. Install either clip nuts or retainer nuts depending on whether your rack has round holes or square holes.
These will allow you to secure the device to the rack uprights.
NOTE
For rails with round holes, use the clip nuts on the rack rails for securing 10-32 x .63 in. screws. For rails with
square holes, use the retainer nuts. See the following figure.
Figure 26: Using Clip Nuts and Retainer Nuts to Secure Screws to Rack Rails
1. Clip Nuts
