308
Trim and Tilt
Trim and Tilt Service

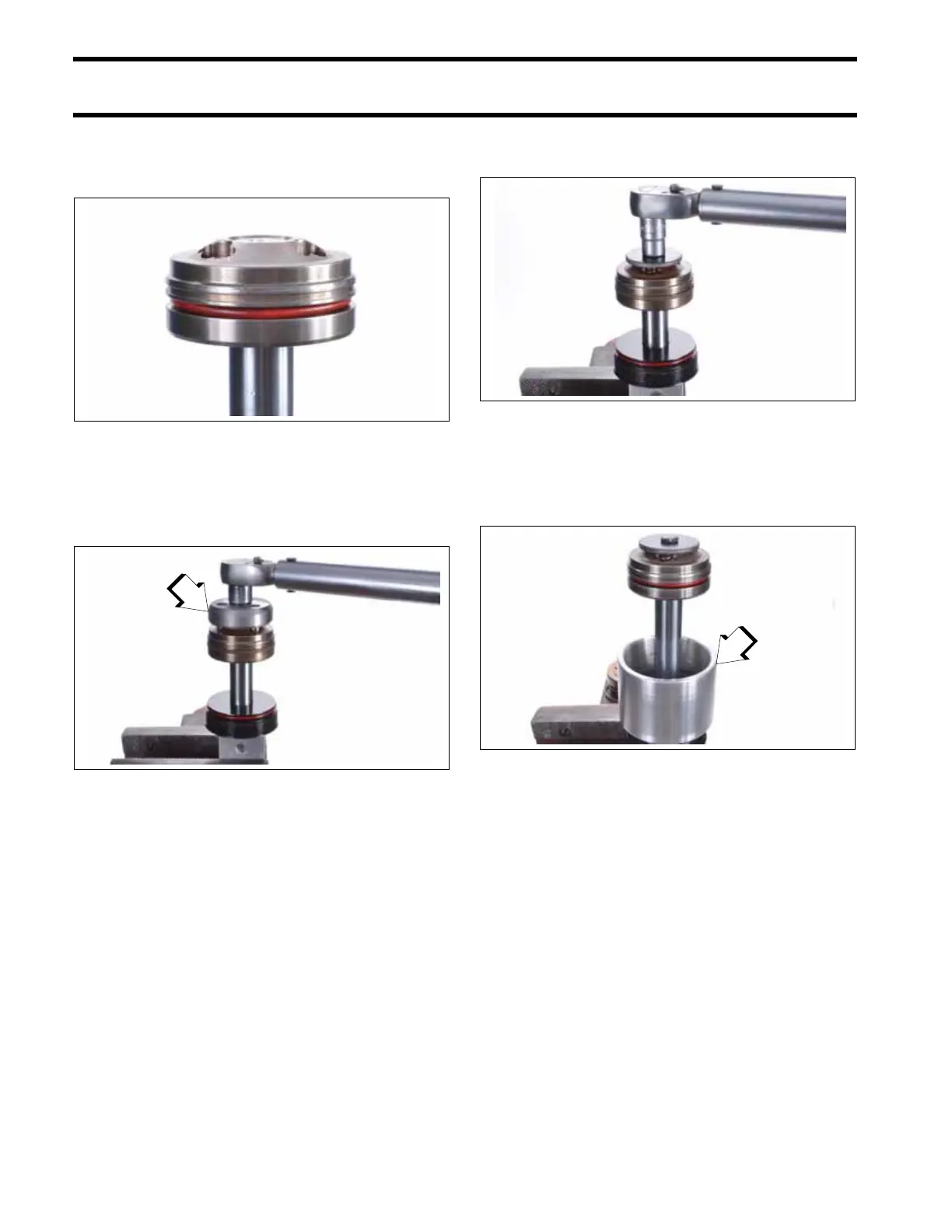

Apply red Ultra Lock to the threaded portion of the
rod, piston and fasteners. Install the piston on the
rod.
Use piston spanner wrench, P/N T-553, to install
piston on the rod of trim and tilt assembly,
P/N 5007776. Tighten piston to specified torque,
refer to Service Charts on p. 292.
Assemble the piston as shown in the Service
Charts on p. 292.
Tighten fasteners to specified torque, Service
Charts on p. 292.
Apply trim/tilt fluid to the inside diameter of the
resizing fixture. Place the resizing fixture over the
piston with the tapered end up. Slide the resizing
fixture down past the piston.
Not all hydraulic assemblies use the same shim
for assembly. Select the appropriate shim from the
008826
1. Piston spanner wrench
008827
008828
1. Resizing fixture
008829
