309
Trim and Tilt
Trim and Tilt Service
12

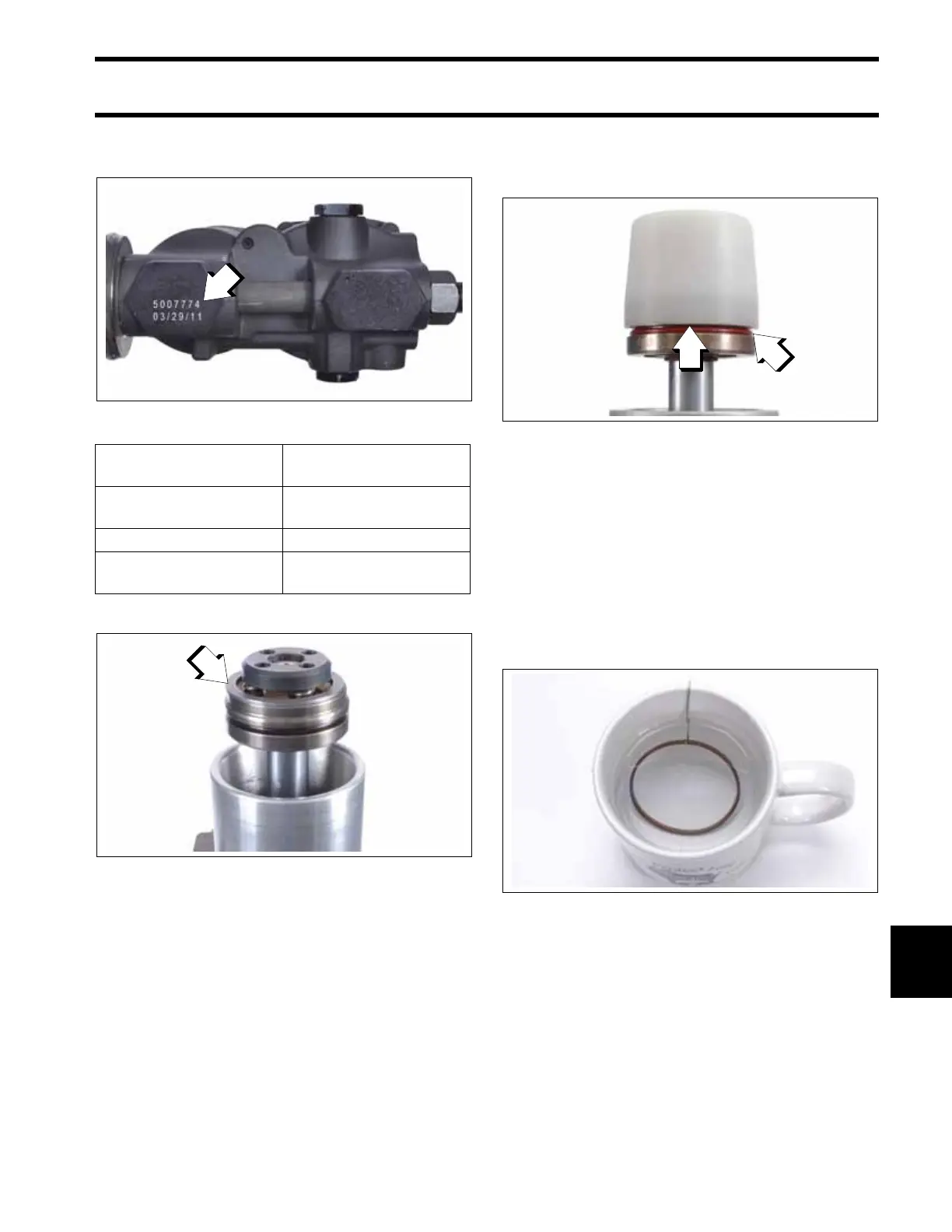

chart. Part number is stamped on the bottom of
the housing of trim and tilt assemblies.
Place the shim on the piston.
Place the loading mandrel, on the piston. Make
sure the edge of the loading mandrel is flush with
the top edge of the seal groove in the piston.
If the edge of the loading mandrel is not flush with
the top of the seal groove, the wrong shim was
selected. Check shim selection and reinstall the
mandrel.
Lubricate the mandrel with trim/tilt fluid.
Use a piece of wire to suspend the seal in a cup of
hot water. Warm the seal in hot water for about
one minute.
1. Part number
008814
Trim and Tilt
Assembly P/N Shim
5007774,
5009035
0.120 in. (3 mm)
5005756 0.060 in. (1.5 mm)
5007776,
5008949
none
1. Shim
008830
1. Edge of the loading mandrel
2. Seal groove
008831
008832
