Trim and Tilt
Trim and Tilt Service
Removal
Remove the four large motor flange retaining
screws. Remove the motor and discard O-ring,
screws, and washers.
Remove drive coupler from either the motor or the
pump assembly.
Installation
IMPORTANT – 3-Cylinder models: Use only
Evinrude/Johnson Biodegradable TNT Fluid to fill
the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
Position the motor on the manifold and install four
new screws and lock washers. Tighten the screws
35 to 50 in. lbs. (4 to 5.6 N·m).
2-Cylinder Models

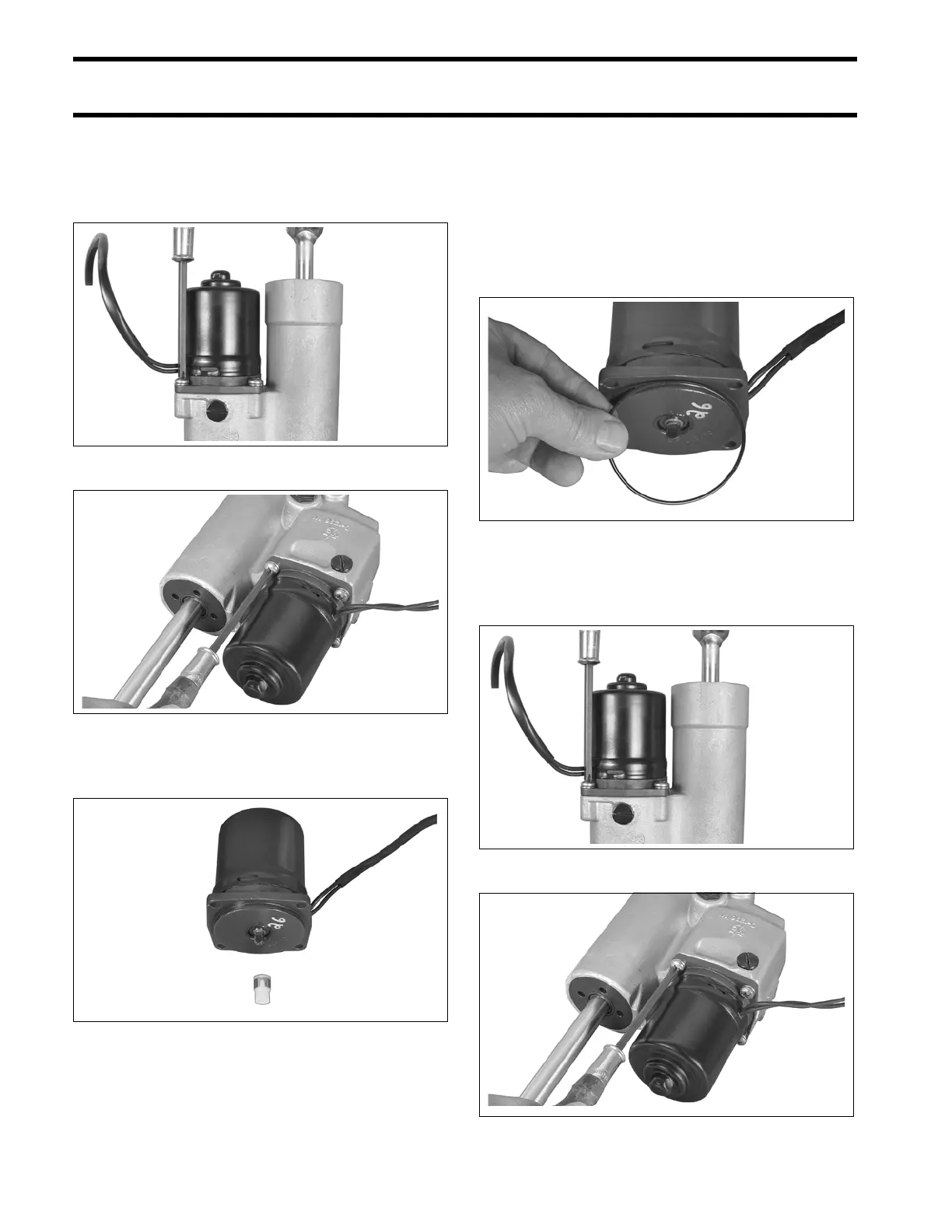

002531
3-Cylinder Models
004282
002532
002533
2-Cylinder Models
002531
3-Cylinder Models
004282
