Fill the oil reservoir up to the fill plug with the cor-
rect fluid. Install the fill plug.
Clean up any spilled hydraulic fluid with shop tow-
els.
Run the motor, then recheck oil level. Cycle the
unit several times and check the oil level when the
cylinder is fully extended. Oil should be level with
bottom of fill port. Install and tighten the fill plug to
a torque of 45 to 55 in. lbs. (5 to 6 N·m).
Refer to Installation on p. 301 for trim and tilt
assembly installation procedure.

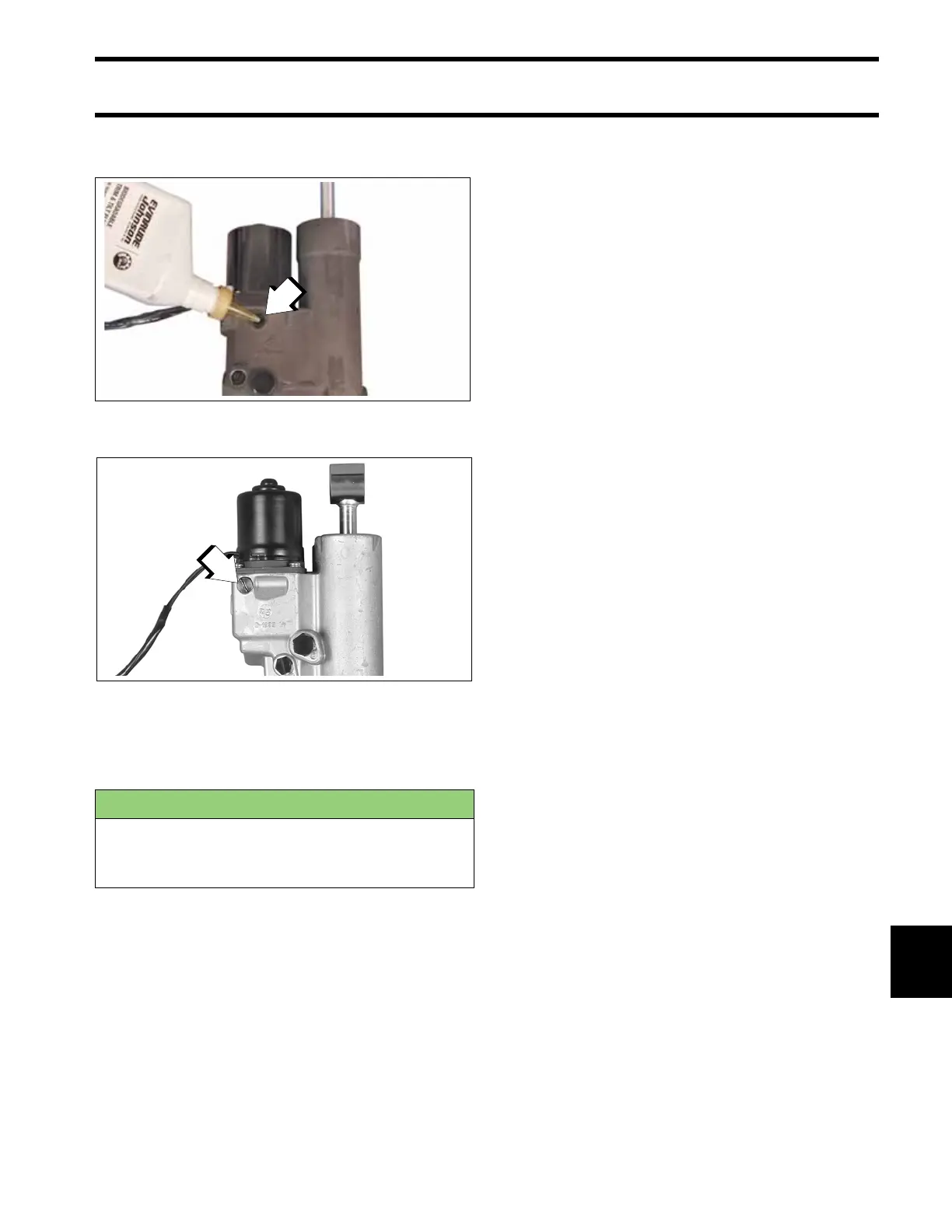

2-Cylinder Models
1. Fill location
007646
3-Cylinder Models – Use only Evinrude/Johnson
Biodegradable TNT Fluid
1. Fill location
004278
ENVIRONMENTAL NOTE
Dispose of spilled hydraulic fluid or contaminated
towels in an environmentally responsible manner,
or according to local regulations.
