BRP EVINRUDE E-TEC E90DSLAA Series User Manual

122
ELECTRICAL AND IGNITION

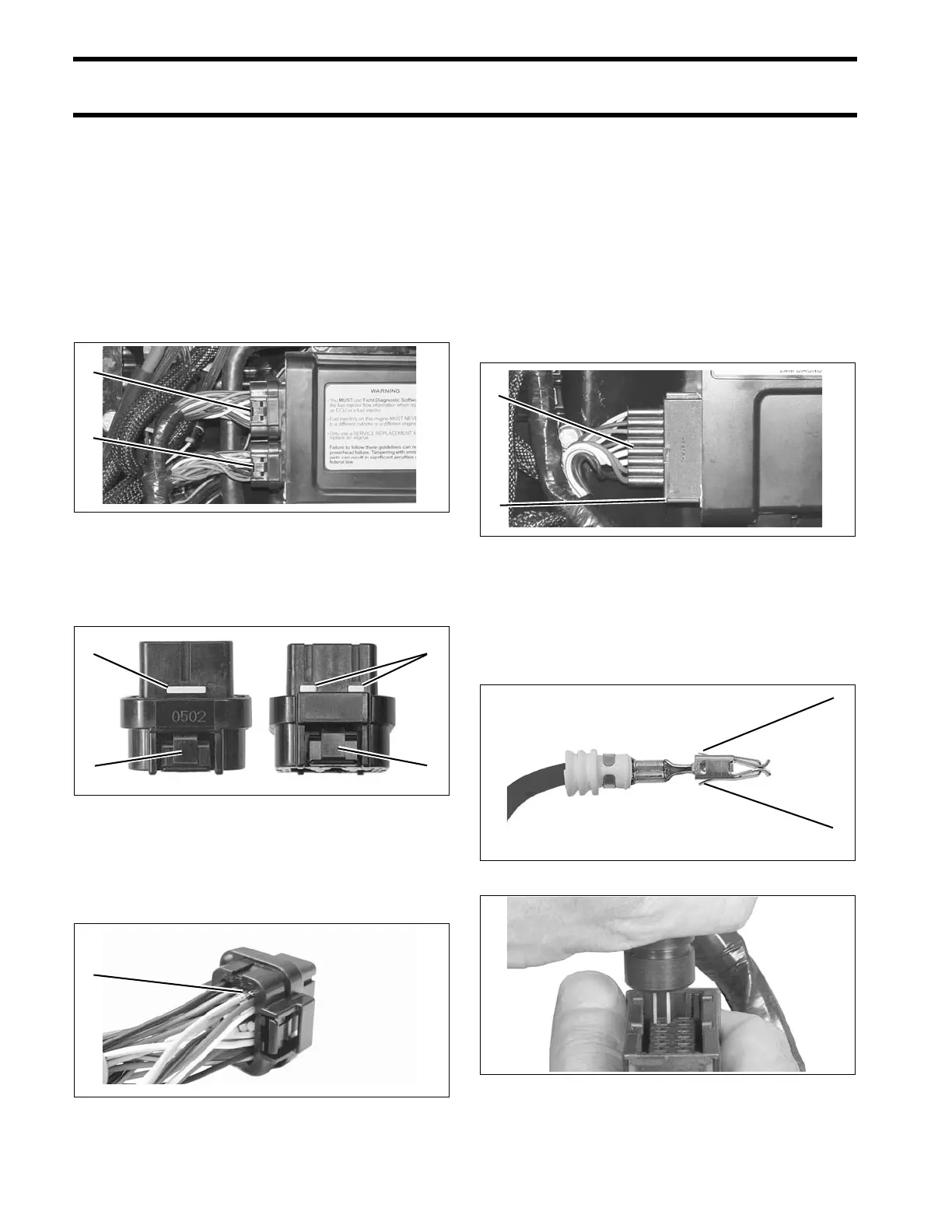

CONNECTOR SERVICING
SUPER SEAL
The J1-A and J1-B connectors of the EMM are
AMP Super Seal connectors.
Disconnect
Depress BOTH latches and pull connector from
plug.
Connect
Push connector into plug until latches engage.
Terminal Removal
Open lock mechanism and remove terminal from
connector housing.
Terminal Installation
Push terminal through seal until it is seated in con-
nector housing. Close lock mechanism.
POWER TIMER SERIES
The J2 connector of the EMM is an AMP Power
Timer Series connector.
Disconnect
Use a screw driver to open latch. Pull connector
from plug.
Connect
Push connector until seated in plug. Close latch
completely.
Terminal Removal
Use Terminal Release Tool, P/N 351413, to
release BOTH locking mechanisms of connector.
Pull terminal from housing.
1. Latch 002118
1. Latch
2. Lock mechanism
002453
1. Terminal 002454
1
1
2
1
2
1
1
1. J2 connector
2. Latch (closed)
002120
1. Locking mechanism(s) 002455
1. Terminal release tool 002313
1
2
1
1
