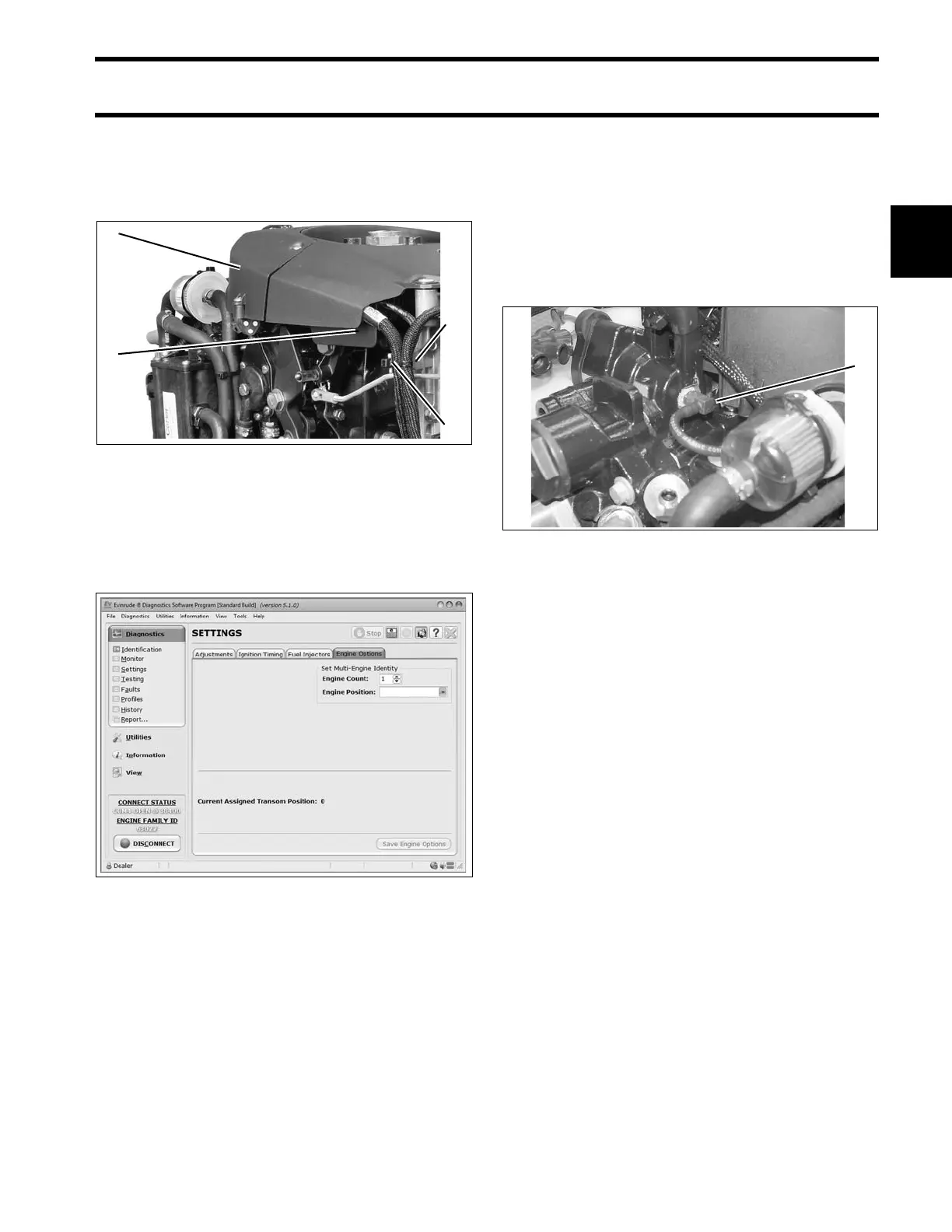

27
ROUTINE SERVICE
OUTBOARD RIGGING CONNECTIONS
2
Route I-Command Ignition Harness through wire
channel in flywheel cover. Install electrical cover.
Make sure both harnesses are in front of the tab
and tighten with tie strap.
Use Evinrude Diagnostics software to adjust net-
work settings in the EMM. From the Settings
screen, select Engine Options.
Water Pressure Gauge
To display engine water pressure, install a water
pressure hose fitting in the cylinder block as
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to installation instructions sup-
plied with gauge.
For an I-Command water pressure display, sev-
eral water pressure sensor kits are available.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
1. Electrical cover
2. Wire channel
3. Tab
4. Tie strap
006737
Engine Options Screen 008563A
3
4
1
2
1. Water pressure hose fitting 002461
1
