254
MIDSECTION

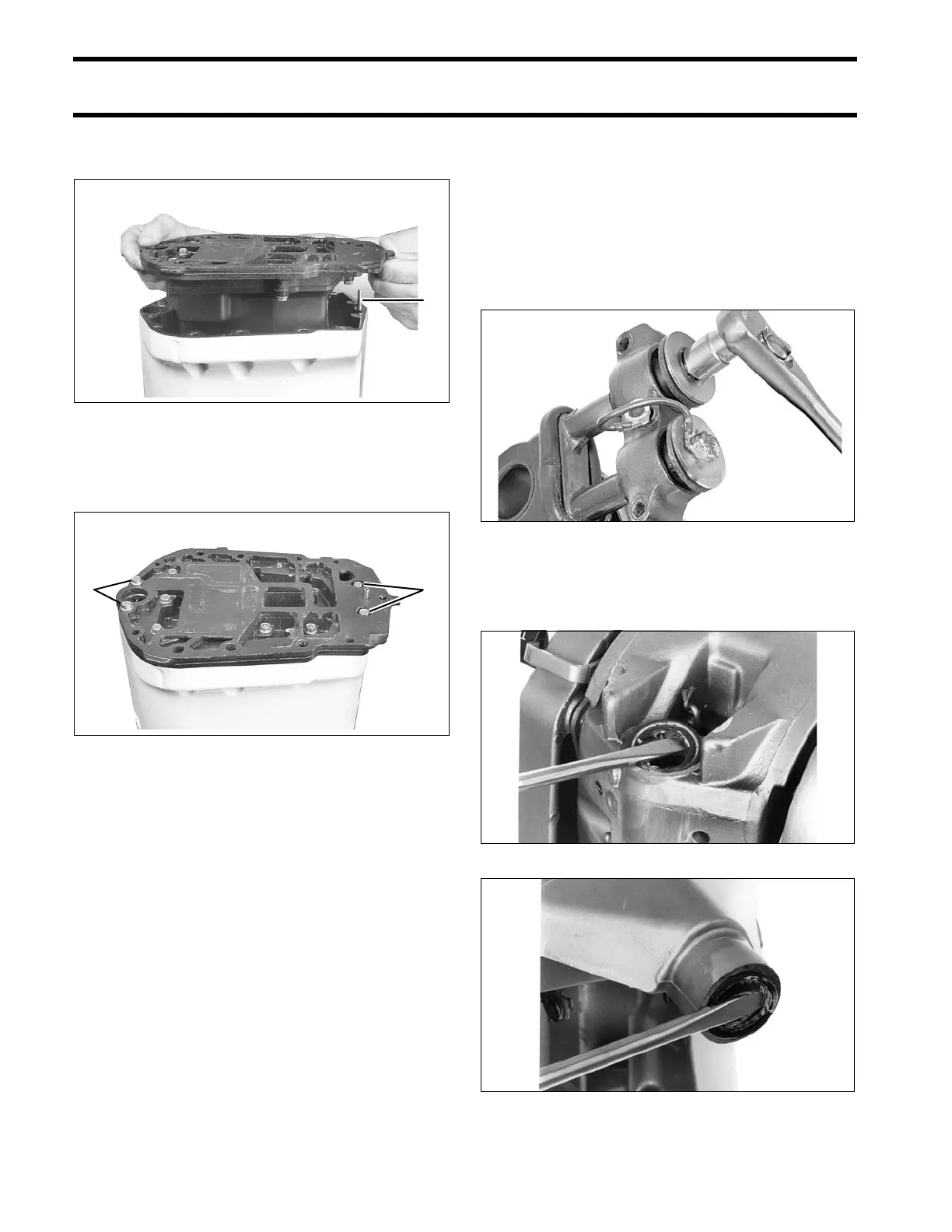

STERN BRACKET, 40 – 60 HP POWER TILT
the hole in the outer housing and the alignment
pin into the adapter housing.
Apply Gasket Sealing Compound to threads of the
four retaining screws and tighten to a torque of 60
to 84 in. lbs. (7 to 9.5 N·m).
STERN BRACKET,
40 – 60 HP Power Tilt
Stern Bracket Disassembly
Remove the bumpers from the upper mount
retaining screws. Remove the screws, upper
mount, and ground lead from the bracket.
Pull the steering arm out of the swivel bracket.
Use an appropriate tool to pry the upper and lower
seals from the swivel bracket.
1. Alignment pin 001980
1. Adapter retaining screws 001981
17505
COA2957
COA2958
