ENGINE MANAGEMENT MODULE (EMM)
DIAGNOSTIC SOFTWARE FUNCTIONS
If Diagnostic Power Supply Tool, P/N 587005, is
not available, a Battery Cable, P/N 584348, can
be connected to the engine mounted solenoid.
Use accessory Key Switch Assembly,
P/N 176408, to control power to the EMM.
Static Information
Static information is viewed when the outboard is
NOT running. This includes manufacturing infor-
mation.
The outboard model and serial numbers displayed
on the Identity screen must match the identifica-
tion label on the outboard swivel bracket.
The serial number and cylinder location displayed
on the Injector Coefficients screen must match the
actual cylinder placement for each injector.
Dynamic Information
Dynamic information is viewed while the outboard
is running. Changes in data, such as voltages or
temperatures, are shown as they happen.

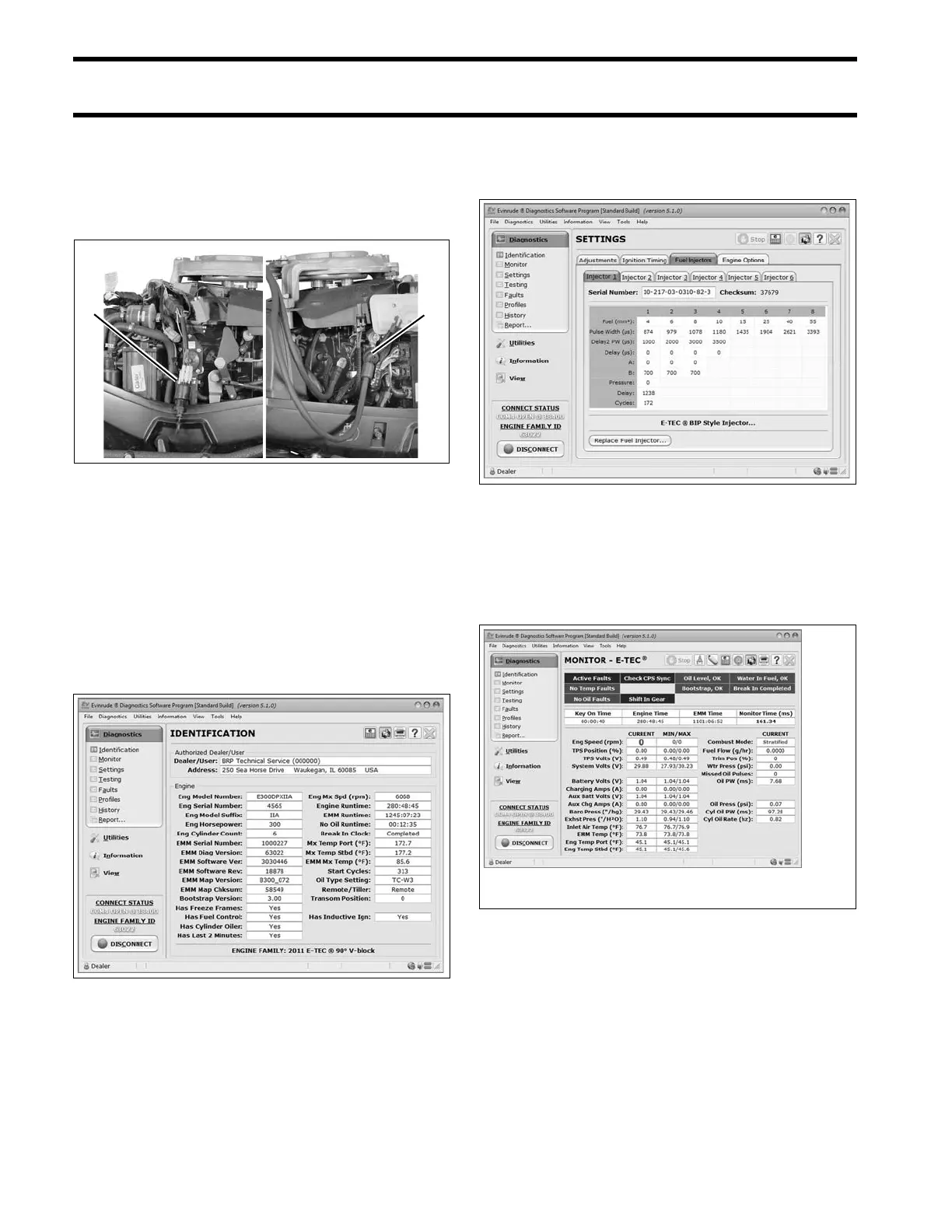

1. Accessory key switch
2. Battery cable
007281
007282
Identity Screen 008567
Injector Coefficients Screen 008568
Monitor Screen 008566
